TOYOTA MR2 ZZW30R-AKMQHW / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SWITCH RELAY COMPUTER

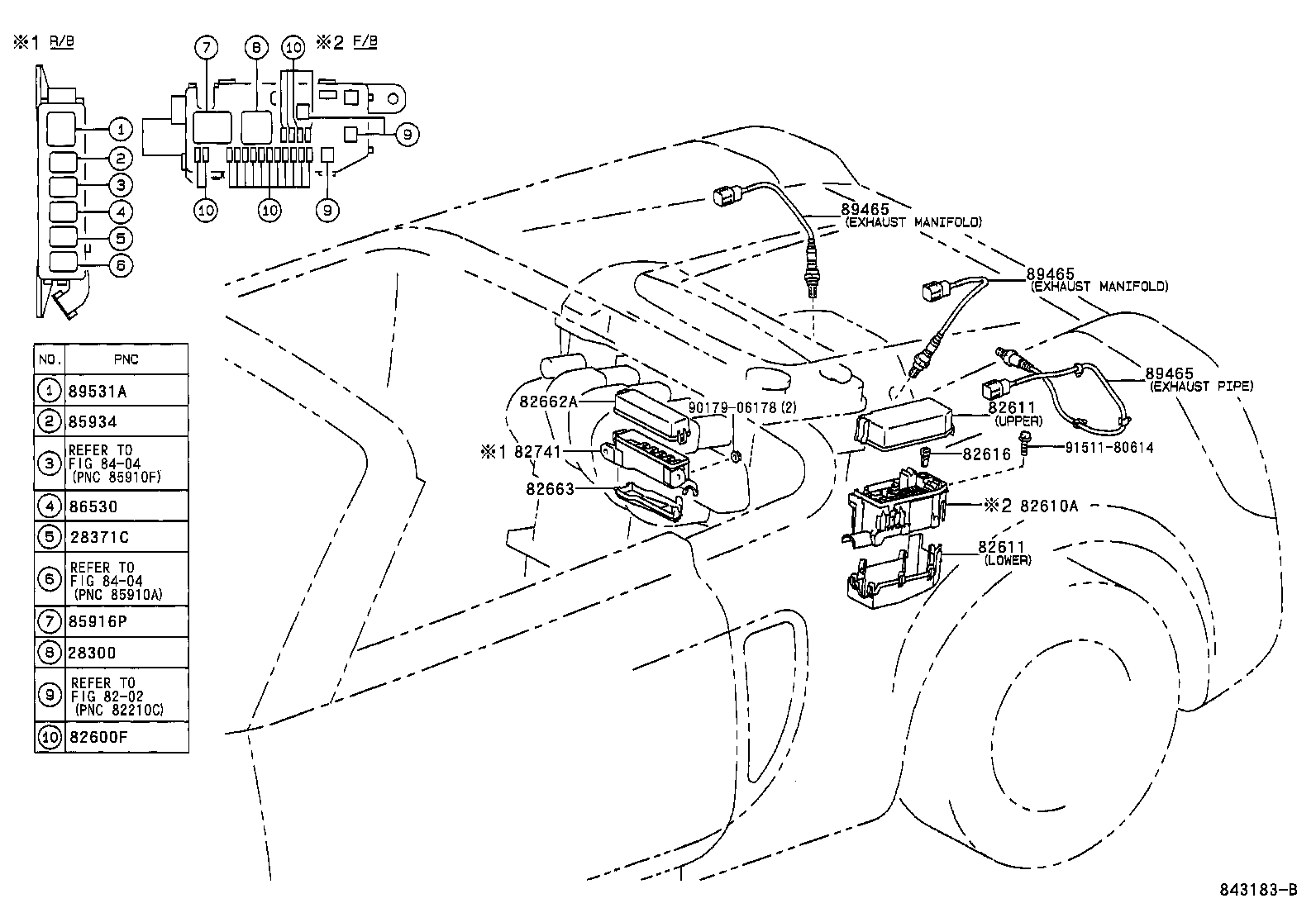

ENGINE ROOM ILLUST NO. 2 OF 7(9912- )

 MR2 |  SWITCH RELAY COMPUTER 28300 - RELAY ASSY, STARTER 28371C - RELAY, IGNITION, NO.2 ** Refer Fig 82600F - FUSE, FUSE BLOCK 82610A - BLOCK ASSY, FUSE 82611 - COVER, FUSE BLOCK 82611 - COVER, FUSE BLOCK 82616 - PULLER, FUSE 82662A - COVER, RELAY BLOCK, UPPER, NO.1 82663 - COVER, RELAY BLOCK, LOWER 82741 - BLOCK, ENGINE ROOM RELAY ** Refer Fig ** Refer Fig 85916P - RELAY, HEADLAMP 85934 - RELAY, MAGNET-CLUTCH 86530 - RELAY ASSY, HORN 89465 - SENSOR, OXYGEN 89465 - SENSOR, OXYGEN 89465 - SENSOR, OXYGEN 89531A - RELAY, TRANSMISSION CONTROL  ** Std Part  ** Std Part
