HEATING AIR CONDITIONING COOLER PIPING

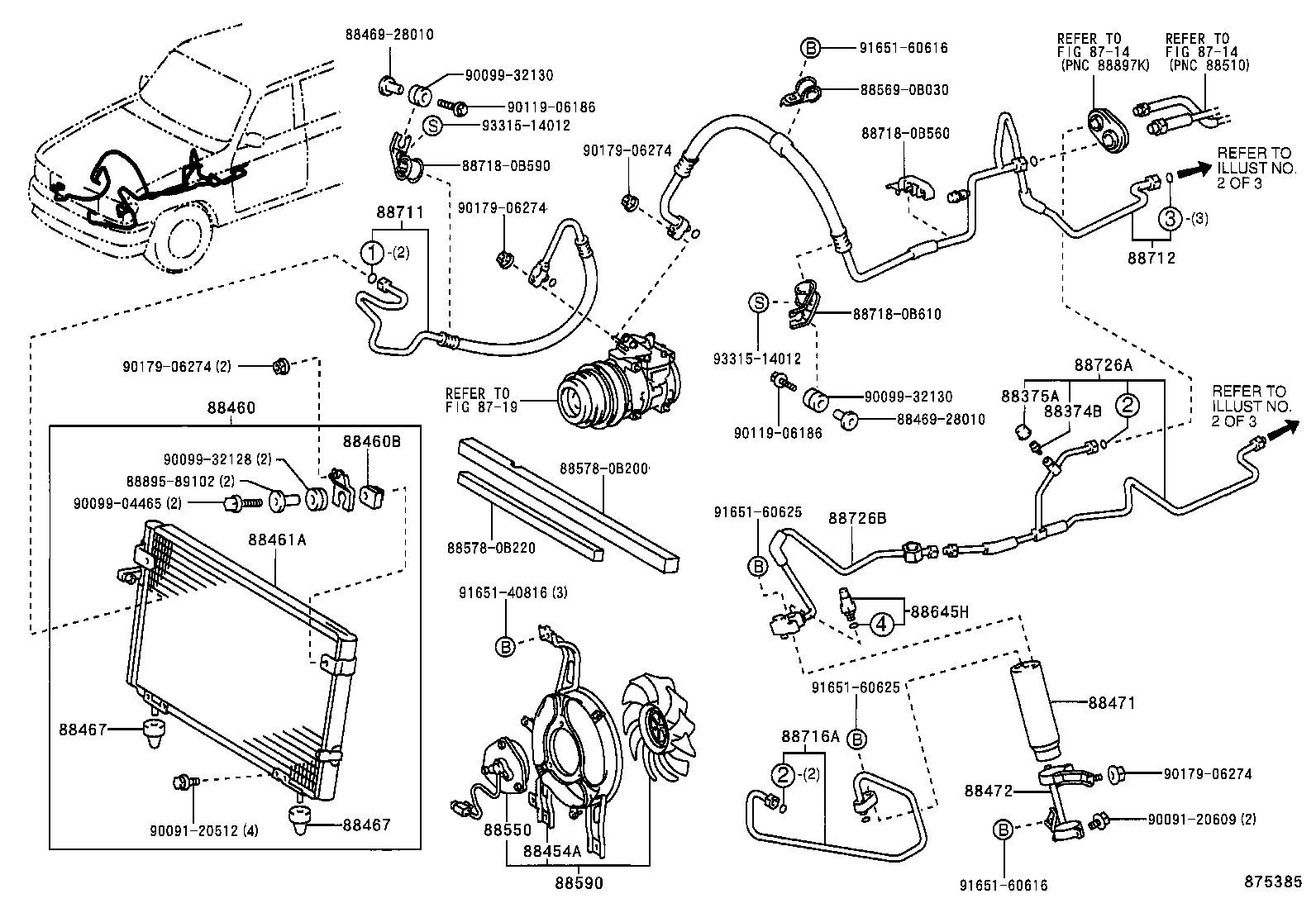

FRONT--DUAL AIR CONDITIONER ILLUST NO. 1 OF 3(0201-0209)RZF50

QUALIS | HEATING AIR CONDITIONING COOLER PIPING ** Refer Fig ** Refer Fig ** Refer Fig 88374B - VALVE, SERVICE, NO.1 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) 88454A - SHROUD, FAN 88460 - CONDENSER ASSY, COOLER 88460B - BRACKET, COOLER CONDENSER, NO.1 88461A - CORE, COOLER CONDENSER 88467 - CUSHION, COOLER CONDENSER, NO.1 88467 - CUSHION, COOLER CONDENSER, NO.1 ** Std Part ** Std Part 88471 - TANK, RECEIVER AIR CONDITIONER 88472 - BRACKET, RECEIVER TANK, NO.1 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) ** Std Part ** Std Part ** Std Part 88590 - BLOWER ASSY, W/SHROUD 88645H - SWITCH, PRESSURE NO.1 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 88716A - PIPE, COOLER REFRIGERANT LIQUID, A ** Std Part ** Std Part ** Std Part 88726A - PIPE, COOLER REFRIGERANT LIQUID, A 88726B - PIPE, COOLER REFRIGERANT LIQUID, B ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
