TOYOTA T U V KF82R-GRMNE / ELECTRICAL / HEATING AIR CONDITIONING COOLER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING COOLER PIPING

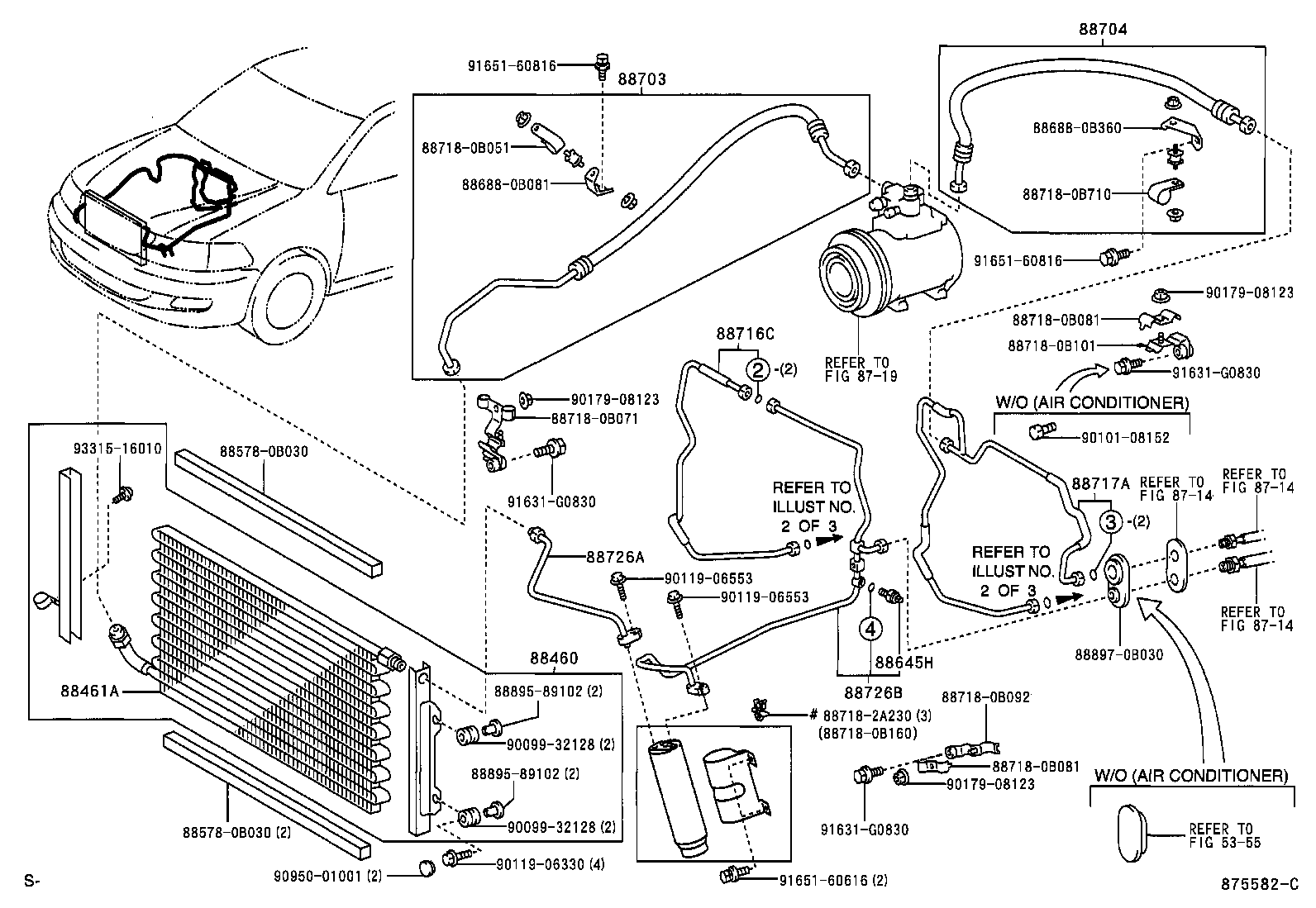

FRONT,DUAL AIR CONDITIONER ILLUST NO. 1 OF 3(0208- )KF72,82..5F..GL..RHD

T U V | HEATING AIR CONDITIONING COOLER PIPING ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 88460 - CONDENSER ASSY, COOLER 88461A - CORE, COOLER CONDENSER ** Std Part ** Std Part 88645H - SWITCH, PRESSURE NO.1 ** Std Part ** Std Part 88703 - HOSE SUB-ASSY, DISCHARGE 88704 - HOSE SUB-ASSY, SUCTION 88716C - PIPE, COOLER REFRIGERANT LIQUID, C 88717A - PIPE, COOLER REFRIGERANT SUCTION, A ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part 88726A - PIPE, COOLER REFRIGERANT LIQUID, A 88726B - PIPE, COOLER REFRIGERANT LIQUID, B ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
