TOYOTA TOWNACE LITEACE KR42R-RCSREQ / POWERTRAIN-CHASSIS / VALVE BODY OIL STRAINER ATM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

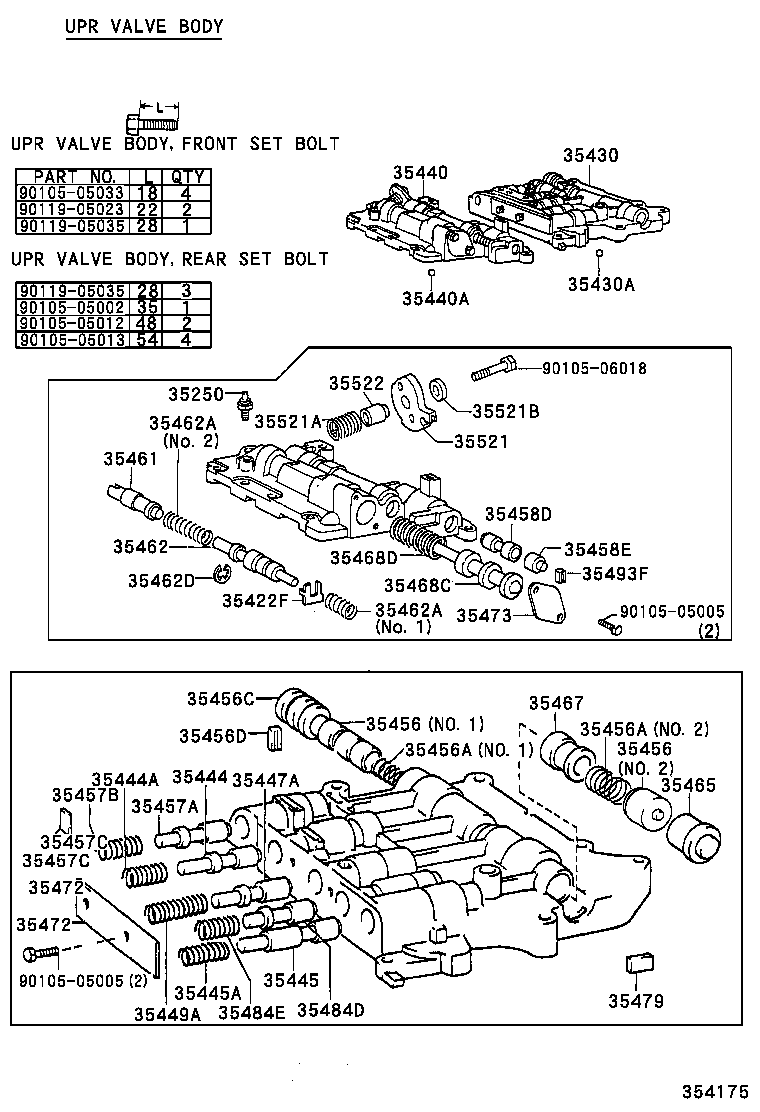

VALVE BODY OIL STRAINER ATM

A42D,A45DL ILLUST NO. 2 OF 3(0208- )ATM

TOWNACE LITEACE | VALVE BODY OIL STRAINER ATM 35250 - BODY ASSY, CHECK BALL 35422F - STOPPER, VALVE VIBRATING 35430 - BODY ASSY, REAR UPPER VALVE 35430A - BALL (FOR REAR UPPER VALVE BODY) 35440 - BODY ASSY, FRONT UPPER VALVE 35440A - BALL (FOR FRONT UPPER VALVE BODY) 35444 - VALVE, INTERMEDIATE MODULATOR 35444A - SPRING, COMPRESSION (FOR INTERMEDIATE MODULATOR VALVE) 35445 - VALVE, LOW MODULATOR 35445A - SPRING, COMPRESSION (FOR LOW MODULATOR VALVE) 35447A - VALVE, REVERSE CLUTCH SEQUENCE 35449A - SPRING, COMPRESSION (FOR SEQUENCE VALVE) 35456 - VALVE, 2-3 SHIFT 35456 - VALVE, 2-3 SHIFT 35456A - SPRING, COMPRESSION (FOR 2-3 SHIFT VALVE) 35456A - SPRING, COMPRESSION (FOR 2-3 SHIFT VALVE) 35456C - PLUG (FOR 2-3 SHIFT VALVE) 35456D - SEAT (FOR 2-3 SHIFT VALVE) 35457A - VALVE, DETENT REGULATOR 35457B - SPRING, COMPRESSION (FOR DETENT REGULATOR VALVE) 35457C - SEAT (FOR DETENT REGULATOR VALVE) 35458D - VALVE, CUT BACK 35458E - PLUG (FOR CUT BACK VALVE) 35461 - PLUG, DOWN SHIFT 35462 - VALVE, THROTTLE 35462A - SPRING, COMPRESSION (FOR THROTTLE VALVE) 35462A - SPRING, COMPRESSION (FOR THROTTLE VALVE) 35462D - RING, E (FOR THROTTLE VALVE) 35465 - PLUG, INTERMEDIATE SHIFT VALVE 35467 - VALVE, INTERMEDIATE SHIFT 35468C - VALVE, SECONDARY REGULATOR 35468D - SPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE) 35472 - COVER, VALVE BODY, NO.2 35473 - COVER, TRANSMISSION VALVE BODY 35479 - SEAT, INTERMEDIATE SHIFT VALVE 35484D - VALVE, B-3 CONTROL 35484E - SPRING, COMPRESSION (FOR B-3 CONTROL VALVE) 35493F - SEAT, SHIFT VALVE PLUG 35521 - CAM, THROTTLE VALVE 35521A - SPRING (FOR THROTTLE VALVE CAM RETURN) 35521B - WASHER (FOR THROTTLE VALVE CAM SET) 35522 - PIN, THROTTLE VALVE CAM ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
