TOYOTA LAND CRUISER PRADO GRJ120R-GKPEKQ / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL TANK TUBE

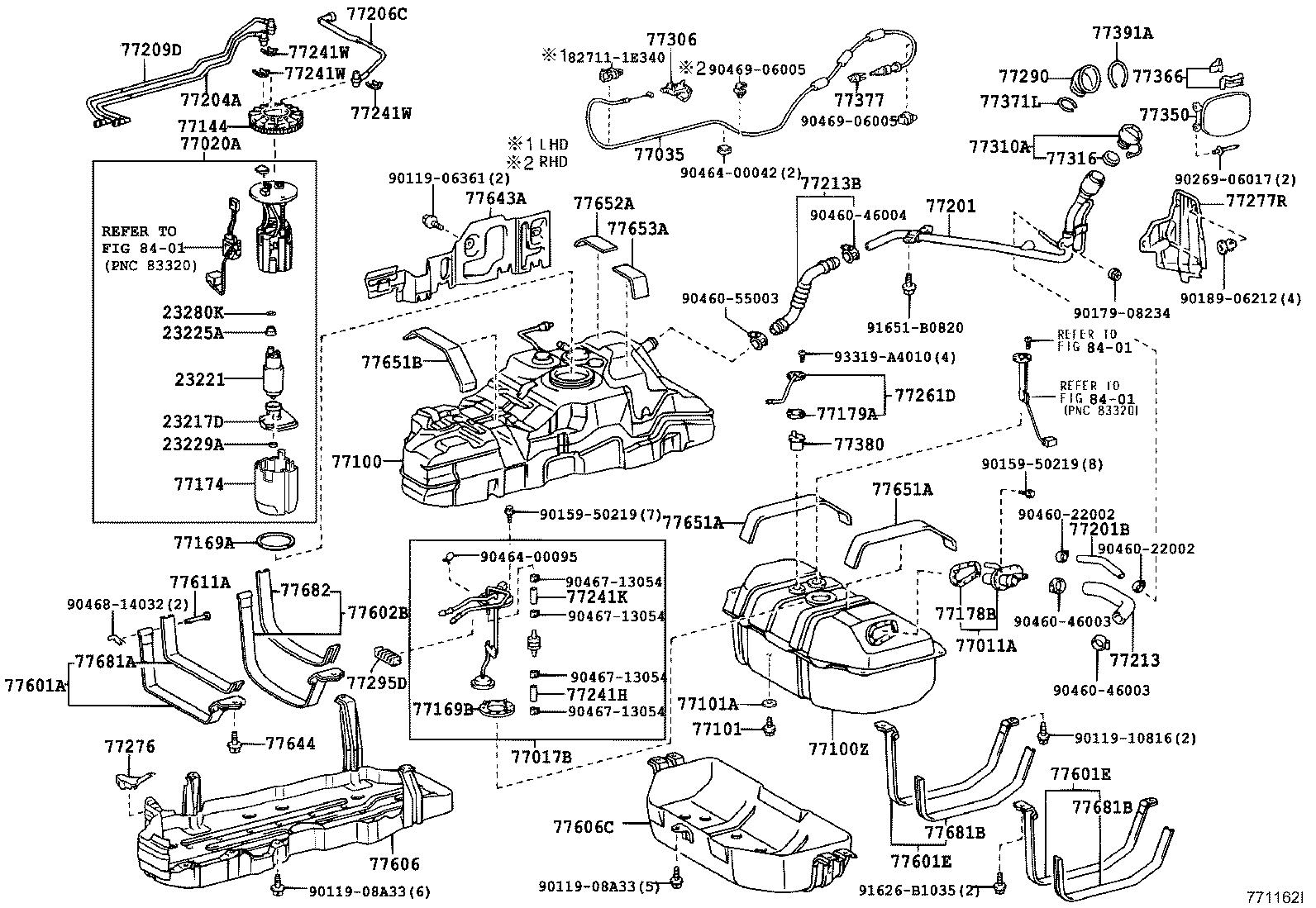

FUEL TANK, W(FUEL SUB TANK) ILLUST NO. 1 OF 2(0209- )RZJ120,TRJ12#..GEN ; (0301- )GRJ12

LAND CRUISER PRADO | FUEL TANK TUBE 23217D - FILTER, FUEL PUMP 23221 - PUMP, FUEL 23225A - SPACER, FUEL PUMP 23229A - CLIP(FOR FUEL PUMP FILTER) 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) 77011A - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER 77017B - TUBE SUB-ASSY, FUEL TANK VENT 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL 77100 - TANK ASSY, FUEL 77100Z - TANK SUB-ASSY, FUEL SUB 77101 - PLUG(FOR FUEL SUB-TANK) 77101A - GASKET(FOR FUEL SUB-TANK) 77144 - RETAINER, FUEL PUMP GAUGE 77169A - GASKET, FUEL SUCTION TUBE SET 77169B - GASKET, FUEL SUCTION TUBE SET, NO.1 77174 - SUPPORT, FUEL SUCTION, NO.1 77178B - GASKET, FUEL TANK FILLER PIPE, LOWER (FOR SUB-TANK) 77179A - GASKET, FUEL TANK BREATHER TUBE 77201 - PIPE SUB-ASSY, FUEL TANK INLET 77201B - HOSE, FUEL, NO.2(FOR FUEL TANK INLET PIPE) 77204A - TUBE, FUEL TANK RETURN 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 77209D - TUBE SUB-ASSY, FUEL TANK MAIN 77213 - HOSE, FUEL TANK SUB INLET 77213B - HOSE, FUEL TANK TO FILLER PIPE 77241H - HOSE, FUEL, NO.7 77241K - HOSE, FUEL, NO.9 77241W - CLIP, TUBE JOINT 77241W - CLIP, TUBE JOINT 77241W - CLIP, TUBE JOINT 77261D - TUBE, FUEL TANK TO CANISTER 77276 - PROTECTOR, FUEL HOSE 77277R - PROTECTOR, FUEL TANK FILLER PIPE 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE 77295D - GROMMET, FUEL TUBE 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN 77310A - CAP ASSY, FUEL TANK 77316 - GASKET, FUEL TANK CAP 77350 - LID ASSY, FUEL FILLER OPENING 77366 - SPRING, FUEL FILLER OPENING LID HINGE 77371L - RING, FUEL TANK FILLER PIPE SHIELD 77377 - RETAINER, FUEL FILLER OPENING LID LOCK 77380 - VALVE ASSY, FUEL CUT OFF 77391A - RING, FUEL INLET BOX 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 77601E - BAND SUB-ASSY, FUEL TANK 77601E - BAND SUB-ASSY, FUEL TANK 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 77606C - PROTECTOR, FUEL TANK, NO.2 77611A - PIN (FOR FUEL TANK BAND) 77643A - PROTECTOR, FUEL TANK, NO.3 77644 - BOLT, FUEL TANK 77651A - CUSHION, FUEL TANK, NO.1 77651A - CUSHION, FUEL TANK, NO.1 77651B - CUSHION, FUEL TANK 77652A - CUSHION, FUEL TANK, NO.2 77653A - CUSHION, FUEL TANK, NO.3 77681A - SEAT, FUEL TANK BAND 77681B - SEAT, FUEL TANK BAND 77681B - SEAT, FUEL TANK BAND 77682 - SEAT, FUEL TANK BAND, LH ** Std Part ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
