TOYOTA LAND CRUISER PRADO GRJ120R-GKPEKQ / POWERTRAIN-CHASSIS / TRANSFER CASE EXTENSION HOUSING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

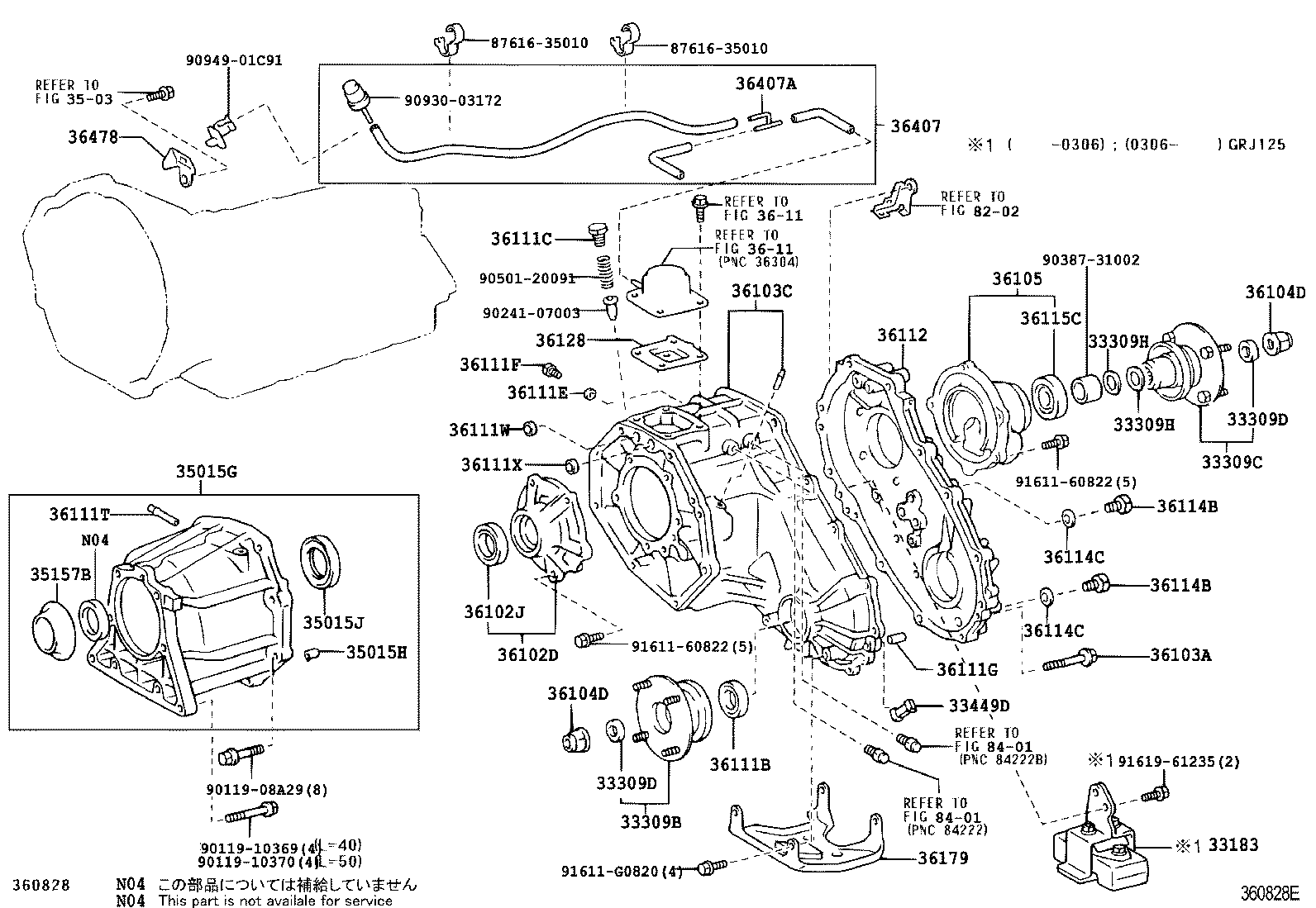

TRANSFER CASE EXTENSION HOUSING

W(ABS & VSC & ACTIVE TRC) (0301- )GRJ12#..4FC..ARL,GCC,GEN

 LAND CRUISER PRADO |  TRANSFER CASE EXTENSION HOUSING 33183 - DAMPER, TRANSFER DYNAMIC 33309B - FLANGE SUB-ASSY, OUTPUT SHAFT COMPANION 33309C - FLANGE SUB-ASSY, OUTPUT SHAFT COMPANION 33309D - SEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE) 33309D - SEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE) 33309H - WASHER, TRANSFER OUTPUT SHAFT 33309H - WASHER, TRANSFER OUTPUT SHAFT 33449D - MAGNET (FOR TRANSFER CASE) 35015G - ADAPTER, TRANSFER, REAR 35015H - PIN, RING(FOR TRANSFER CASE) 35015J - SEAL, OIL(FOR TRANSFER CASE ADAPTER REAR) ** Refer Fig 35157B - RECEIVER, TRANSFER CASE REAR ADAPTER OIL 36102D - RETAINER SUB-ASSY, TRANSFER RH BEARING 36102J - SEAL, TYPE T OIL (FOR TRANSFER COVER) 36103A - BOLT (FOR TRANSFER CASE) 36103C - CASE, TRANSFER, FRONT 36104D - NUT (FOR TRANSFER OUTPUT SHAFT) 36104D - NUT (FOR TRANSFER OUTPUT SHAFT) 36105 - HOUSING SUB-ASSY, TRANSFER EXTENSION, FRONT ** Refer Fig ** Refer Fig 36111B - SEAL, OIL (FOR TRANSFER CASE) 36111C - PLUG (FOR TRANSFER CASE) 36111E - GASKET (FOR TRANSFER CASE) 36111F - PLUG (FOR TRANSFER CASE) 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) 36111T - TUBE (FOR TRANSFER CASE) 36111W - PLUG, TIGHT NO.2(FOR TRANSFER CASE) 36111X - SEAL, OIL (FOR TRANSFER CASE), NO.2 36112 - CASE, TRANSFER, REAR 36114B - PLUG, NO.1 (FOR TRANSFER CASE) 36114B - PLUG, NO.1 (FOR TRANSFER CASE) 36114C - GASKET, NO.1 (FOR TRANSFER CASE) 36114C - GASKET, NO.1 (FOR TRANSFER CASE) 36115C - SEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING) 36128 - DEFLECTOR, BREATHER OIL 36179 - PROTECTOR, TRANSFER CASE LOWER 36407 - HOSE SUB-ASSY, TRANSFER BREATHER 36407A - WAY, 3(FOR TRANSFER BREATHER HOSE) 36478 - BRACKET, TRANSFER BREATHER ** Refer Fig ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
