TOYOTA VIOS SOLUNA VIOS AXP42L-EEPQKC / TOOL-ENGINE-FUEL / RADIATOR WATER OUTLET

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

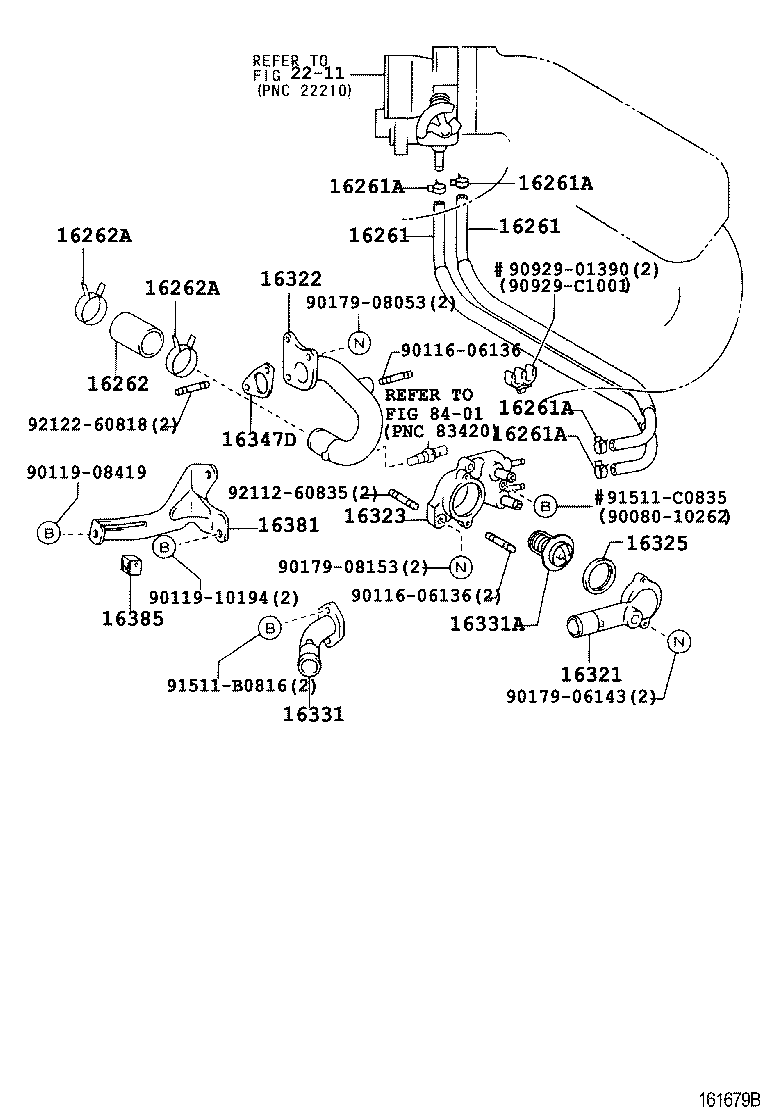

RADIATOR WATER OUTLET

ILLUST NO. 2 OF 2(0210-0406)5AFE,8AFE

 VIOS SOLUNA VIOS |  RADIATOR WATER OUTLET 16261 - HOSE, WATER BY-PASS 16261 - HOSE, WATER BY-PASS 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) 16262 - HOSE, WATER INLET 16262A - CLIP(FOR WATER INLET HOSE) 16262A - CLIP(FOR WATER INLET HOSE) 16321 - INLET, WATER 16322 - PIPE, WATER INLET 16323 - HOUSING, WATER INLET 16325 - GASKET, WATER INLET HOUSING, NO.1 16331 - OUTLET, WATER 16331A - THERMOSTAT 16347D - GASKET, WATER BY-PASS 16381 - BAR, FAN BELT ADJUSTING 16385 - SLIDER, FAN BELT ADJUSTING ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
