TOYOTA HILUX LN145R-TRMDS3 / ELECTRICAL / HEATING AIR CONDITIONING COOLER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

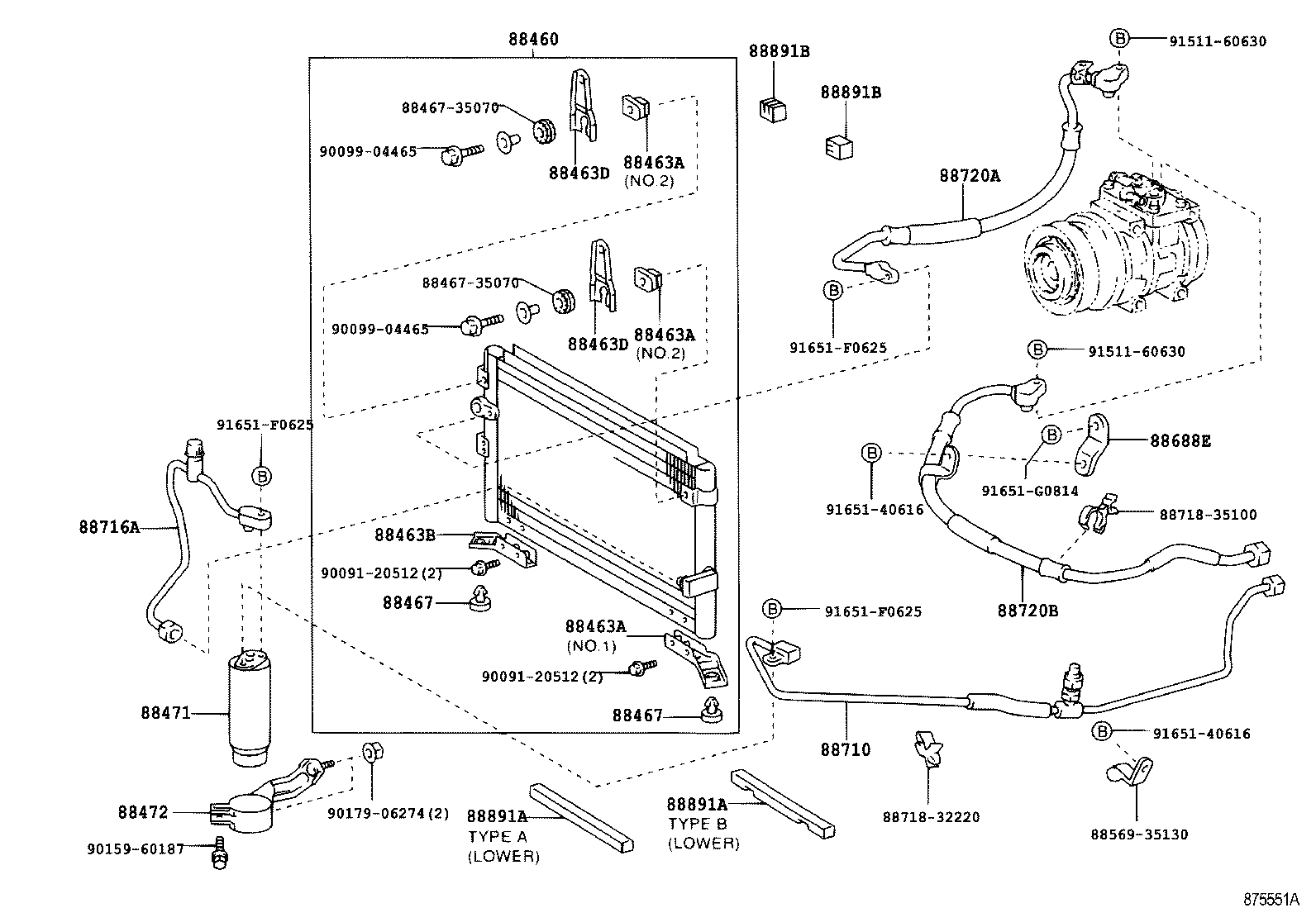

HEATING AIR CONDITIONING COOLER PIPING

MAKER OPTION ILLUST NO. 1 OF 2(0108- )LN145,166..RHD..GEN

HILUX | HEATING AIR CONDITIONING COOLER PIPING 88460 - CONDENSER ASSY, COOLER 88463A - BRACKET, COOLER CONDENSER, NO.2 88463A - BRACKET, COOLER CONDENSER, NO.2 88463A - BRACKET, COOLER CONDENSER, NO.2 88463B - BRACKET, COOLER CONDENSER, NO.3 88463D - BRACKET, COOLER CONDENSER, NO.5 88463D - BRACKET, COOLER CONDENSER, NO.5 88467 - CUSHION, COOLER CONDENSER, NO.1 88467 - CUSHION, COOLER CONDENSER, NO.1 ** Std Part ** Std Part 88471 - TANK, RECEIVER AIR CONDITIONER 88472 - BRACKET, RECEIVER TANK, NO.1 ** Std Part 88688E - BRACKET, COOLER REFRIGERANT HOSE, NO.1 88710 - TUBE ASSY, AIRCONDITIONER 88716A - PIPE, COOLER REFRIGERANT LIQUID, A ** Std Part ** Std Part 88720A - HOSE & ACCESSORY, AIRCONDITIONER 88720B - HOSE & ACCESSORY, AIRCONDITIONER 88891A - PACKING A (FOR COOLER) 88891A - PACKING A (FOR COOLER) 88891B - PACKING B (FOR COOLER) 88891B - PACKING B (FOR COOLER) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
