TOYOTA HILUX LN166R-TRMDS / ELECTRICAL / HEATING AIR CONDITIONING COOLER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

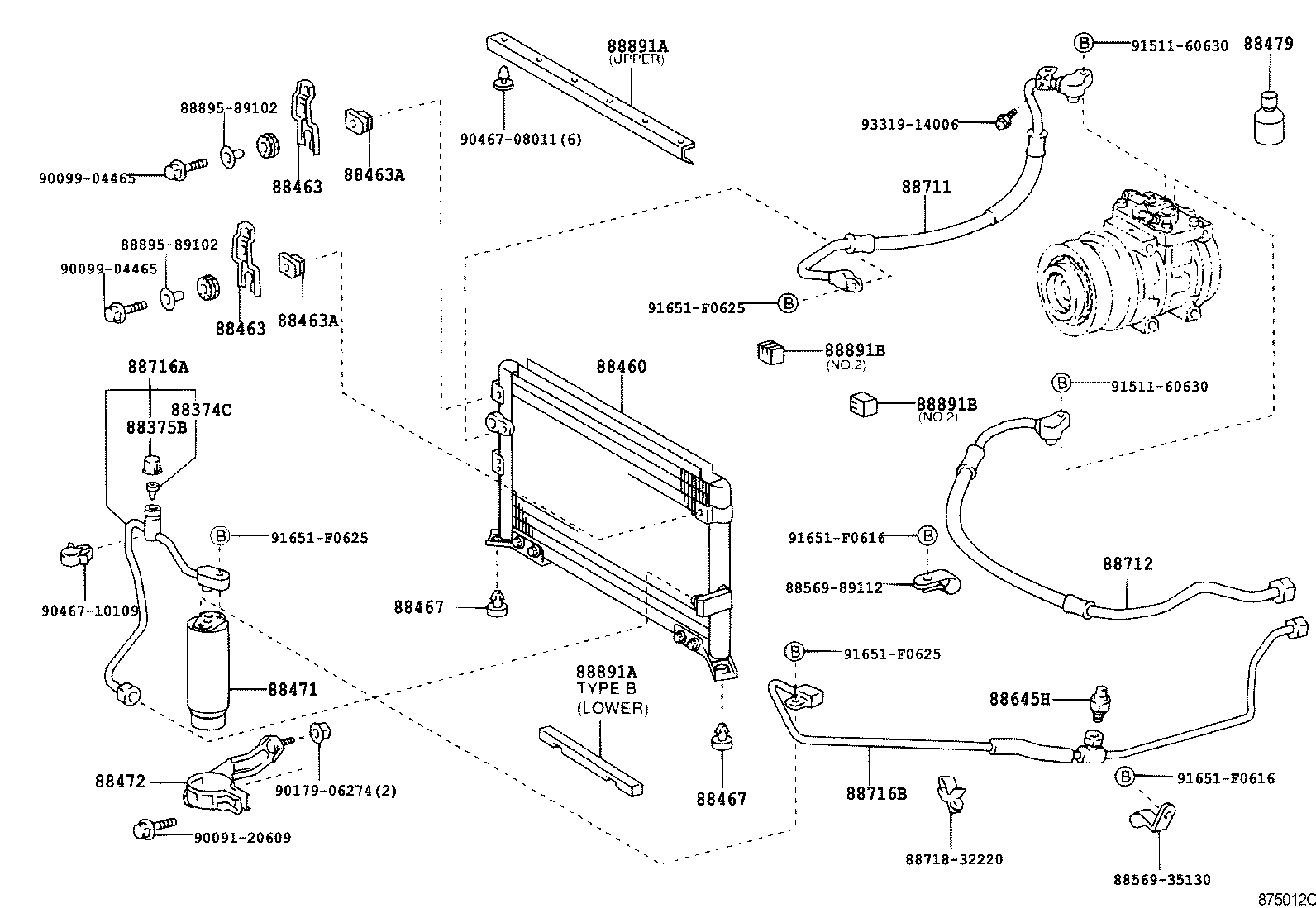

HEATING AIR CONDITIONING COOLER PIPING

DEALER OPTION ILLUST NO. 1 OF 2(9708-0108)LN166..RHD ; (0108- )LN166..RHD..G

HILUX | HEATING AIR CONDITIONING COOLER PIPING 88374C - VALVE, SERVICE, NO.2 88375B - CAP, SERVICE VALVE, NO.1 88460 - CONDENSER ASSY, COOLER 88463 - BRACKET, COOLER CONDENSER, NO.1 88463 - BRACKET, COOLER CONDENSER, NO.1 88463A - BRACKET, COOLER CONDENSER, NO.2 88463A - BRACKET, COOLER CONDENSER, NO.2 88467 - CUSHION, COOLER CONDENSER, NO.1 88467 - CUSHION, COOLER CONDENSER, NO.1 88471 - TANK, RECEIVER AIR CONDITIONER 88472 - BRACKET, RECEIVER TANK, NO.1 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) ** Std Part ** Std Part 88645H - SWITCH, PRESSURE NO.1 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 88716A - PIPE, COOLER REFRIGERANT LIQUID, A 88716B - PIPE, COOLER REFRIGERANT LIQUID, B ** Std Part 88891A - PACKING A (FOR COOLER) 88891A - PACKING A (FOR COOLER) 88891B - PACKING B (FOR COOLER) 88891B - PACKING B (FOR COOLER) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
