TOYOTA T U V KF82L-HRMDEU / BODY / SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SEAT SEAT TRACK

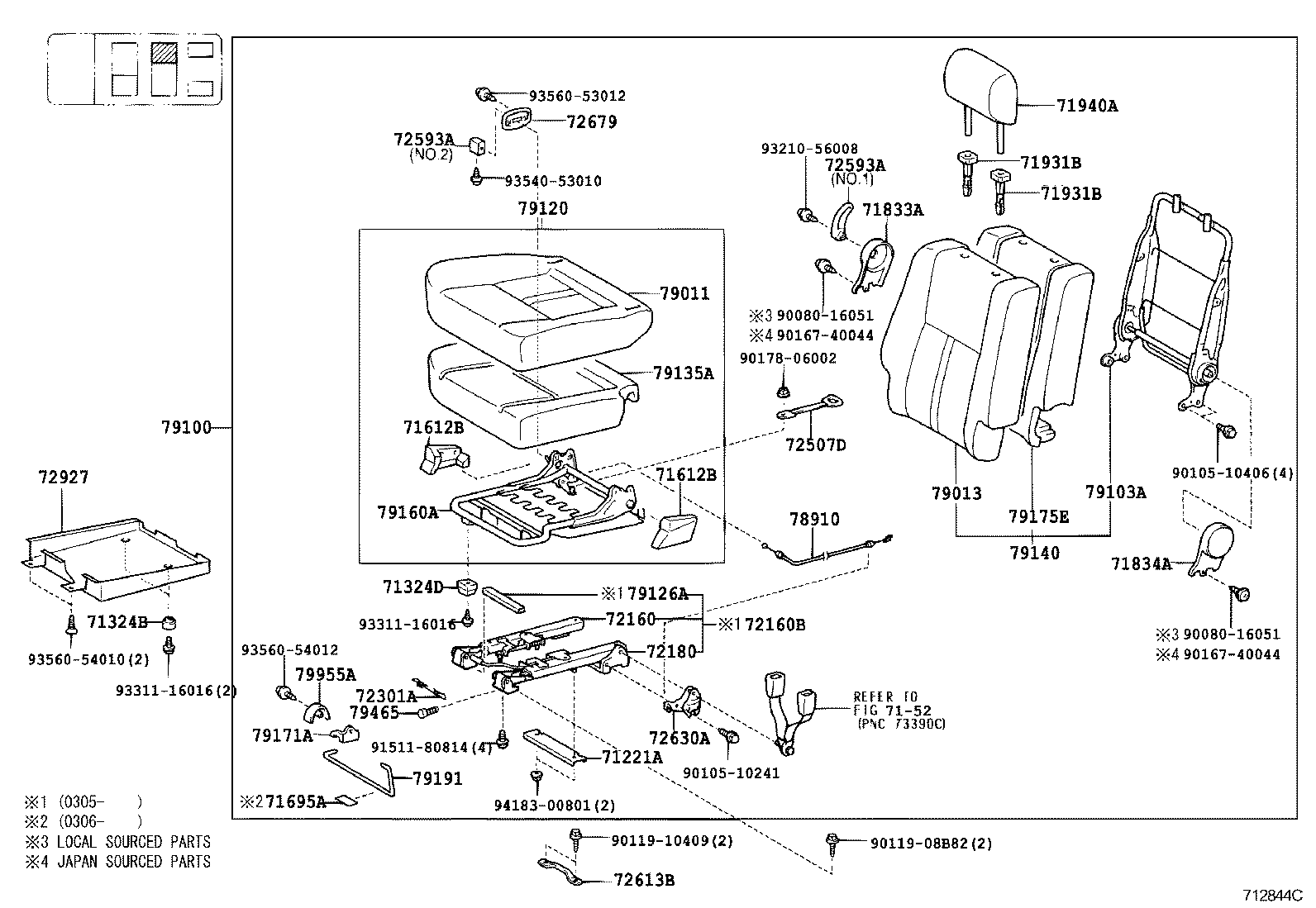

RH ILLUST NO. 2 OF 3(0302- )VN

T U V | SEAT SEAT TRACK 71221A - REINFORCEMENT, REAR SEAT CUSHION, REAR 71324B - CUSHION, REAR SEAT 71324D - CUSHION, REAR SEAT, RH ** Refer Fig 71612B - PAD, REAR SEAT CUSHION, B 71612B - PAD, REAR SEAT CUSHION, B 71695A - PROTECTOR, REAR SEAT, NO.1 RH 71833A - COVER, REAR SEAT RECLINING, NO.1 RH 71834A - COVER, REAR SEAT RECLINING, NO.1 LH 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST 71940A - HEADREST ASSY, REAR SEAT 72160 - TRACK ASSY, REAR SEAT, OUTER RH 72160B - TRACK ASSY, REAR NO.1 SEAT, RH 72180 - TRACK ASSY, REAR SEAT, INNER RH 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH 72507D - HANDLE SUB-ASSY, NO.2 SEAT RECLINING RELEASE 72593A - KNOB, REMOTE CONTROL LEVER, RH 72593A - KNOB, REMOTE CONTROL LEVER, RH 72613B - STRIKER, REAR SEAT LOCK 72630A - LOCK ASSY, REAR NO.1 SEAT 72679 - BEZEL, REAR SEAT BACK LOCK CONTROL 72927 - COVER, REAR SEAT CUSHION UNDER, RH 78910 - CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.1 79011 - COVER SUB-ASSY, NO.1 SEAT CUSHION, RH 79013 - COVER SUB-ASSY, NO.1 SEAT BACK, RH 79100 - SEAT ASSY, REAR NO.1 RH (FOR SEPARATE TYPE) 79103A - FRAME SUB-ASSY, NO.1 SEAT BACK, RH 79120 - CUSHION ASSY, NO.1 SEAT, RH 79126A - REINFORCEMENT, NO.1 SEAT LEG, NO.1 79135A - PAD, NO.1 SEAT CUSHION, RH 79140 - BACK ASSY, NO.1 SEAT, RH 79160A - SPRING ASSY, NO.1 SEAT CUSHION, RH 79171A - BRACKET, NO.1 SEAT 79175E - PAD, NO.1 SEAT BACK, RH 79191 - SPRING, NO.1 SEAT CUSHION, NO.1 79465 - STOPPER REAR SEAT TORSION BAR 79955A - COVER, REAR SEAT FRONT BRACKET, RH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
