TOYOTA T U V KF82L-HRMDEU / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

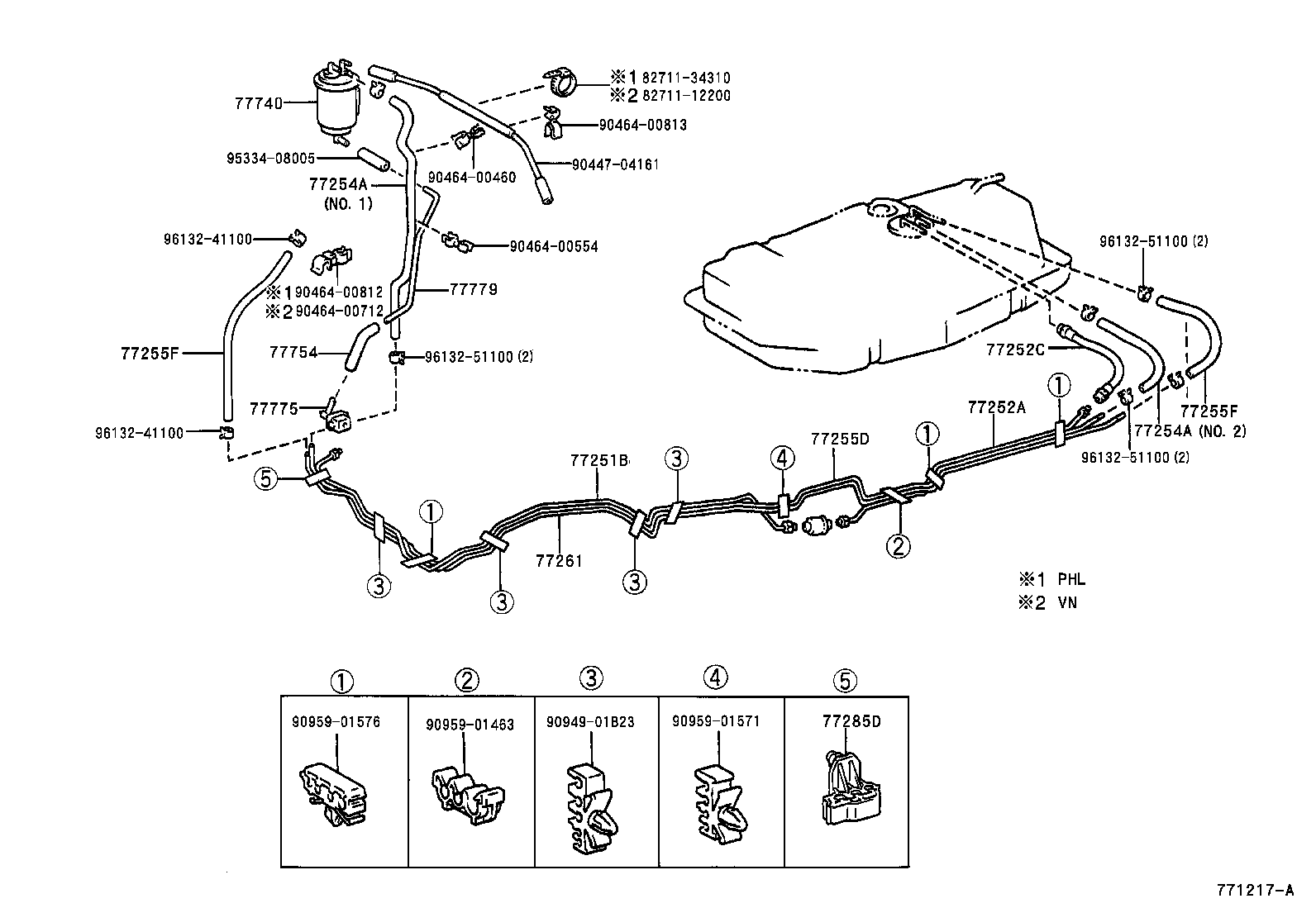

FUEL TANK TUBE

ILLUST NO. 2 OF 2(0211- )KF82..LHD

 T U V |  FUEL TANK TUBE 77251B - TUBE, FUEL MAIN 77252A - TUBE, FUEL MAIN, NO.2 77252C - HOSE, FUEL, NO.2(FOR FUEL MAIN NO.2 TUBE) 77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1) 77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1) 77255D - TUBE, FUEL RETURN 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) 77261 - TUBE SUB-ASSY, FUEL EMISSION 77285D - CLAMP, FUEL TUBE, NO.1 77740 - CANISTER ASSY, CHARCOAL 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 77775 - GUIDE, CHARCOAL CANISTER OUTLET 77779 - TUBE, CHARCOAL CANISTER OUTLET  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
