TOYOTA AURIS UKP ZZE150R-DHMDKN / POWERTRAIN-CHASSIS / CLUTCH PEDAL FLEXIBLE HOSE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

CLUTCH PEDAL FLEXIBLE HOSE

ILLUST NO. 2 OF 2(0706- )ZZE150

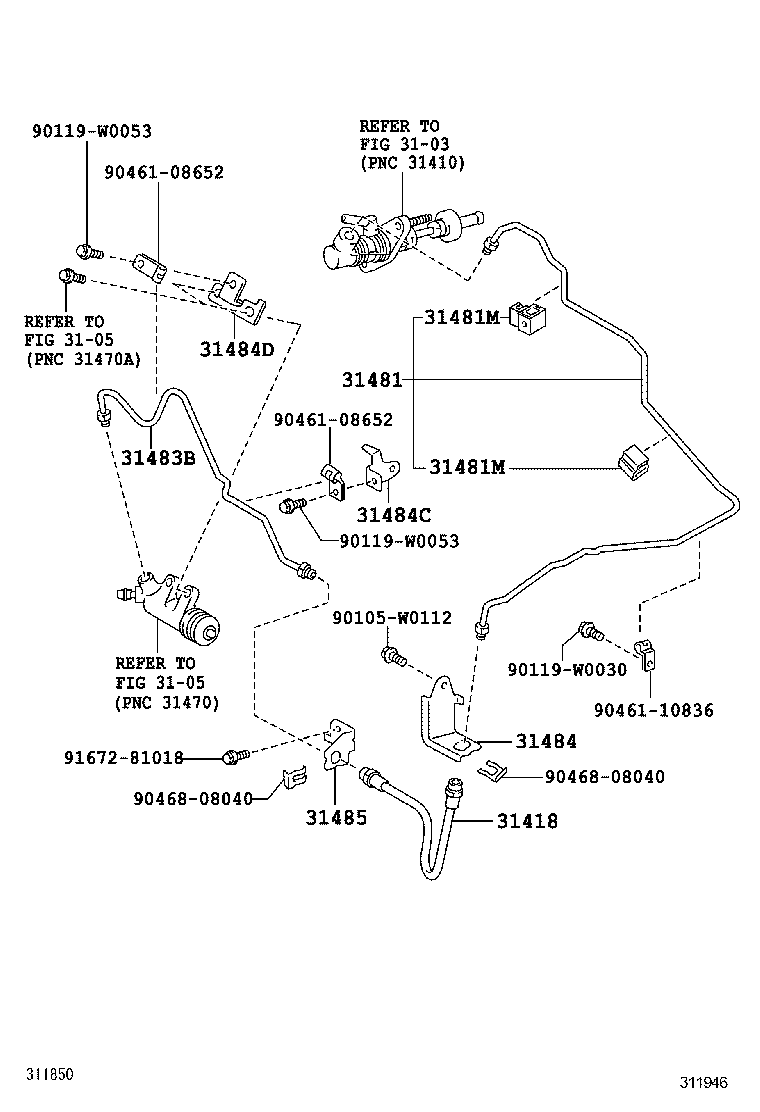

 AURIS UKP |  CLUTCH PEDAL FLEXIBLE HOSE ** Refer Fig ** Refer Fig ** Refer Fig 31418 - HOSE, CLUTCH 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE 31481M - CLAMP(FOR CLUTCH MASTER CYLINDER TUBE) 31481M - CLAMP(FOR CLUTCH MASTER CYLINDER TUBE) 31483B - TUBE, ACCUMULATOR TO FLEXIBLE HOSE 31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH) 31484C - BRACKET, CLUTCH TUBE, NO.1 31484D - BRACKET, CLUTCH TUBE, NO.2 31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
