TOYOTA COASTER CHINA BB54L-ZEMSW / TOOL-ENGINE-FUEL / MECHANICAL GOVERNOR

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

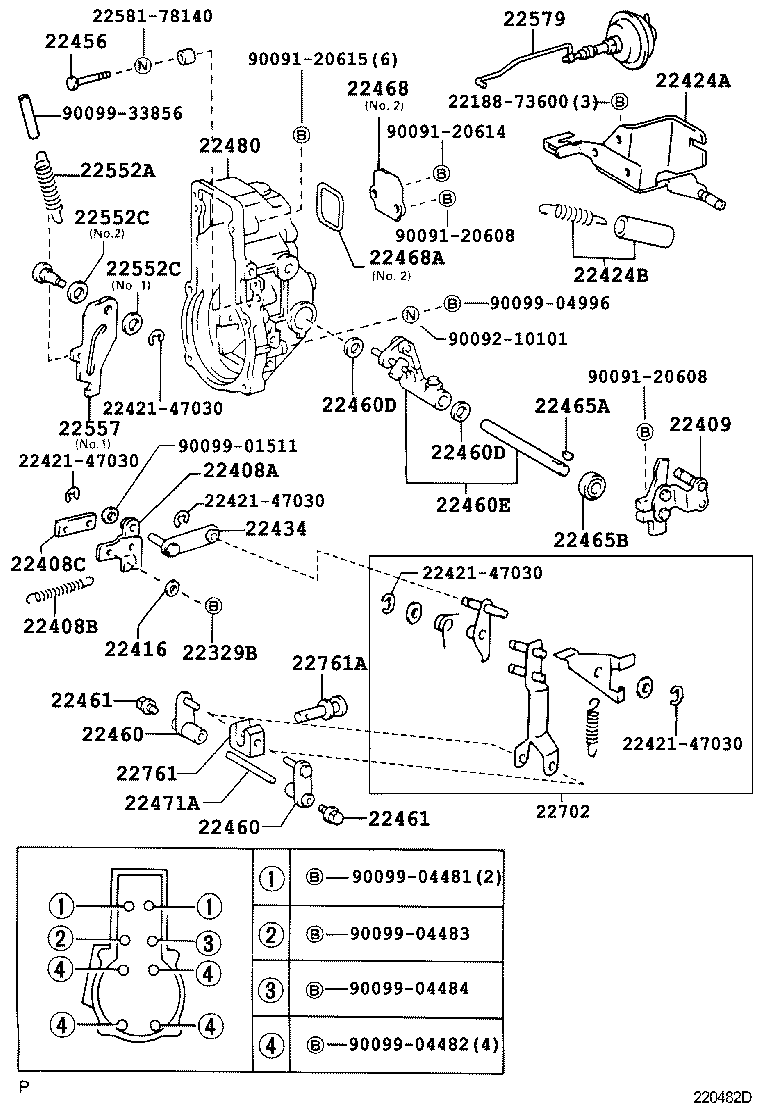

MECHANICAL GOVERNOR

ILLUST NO. 2 OF 2(0310- )15BFT

COASTER CHINA | MECHANICAL GOVERNOR ** Std Part 22329B - BOLT, DIAPHRAGM CONNECTING, NO.3 22408A - ARM SUB-ASSY(FOR CONTROL LACK) 22408B - SPRING, RETURN(FOR ARM) 22408C - NUT, ARM 22409 - LEVER SUB-ASSY, SUPPROTING 22416 - WASHER, GOVERNOR LOCK ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part 22424A - ARM, SPRING 22424B - SPRING, RETURN(FOR SPRING ARM) 22434 - SHACKLE 22456 - SCREW, STOP 22460 - LEVER SUB-ASSY, SUPPORT 22460 - LEVER SUB-ASSY, SUPPORT 22460D - WASHER, LOCK(FOR STEERING LEVER) 22460D - WASHER, LOCK(FOR STEERING LEVER) 22460E - ARM ASSY, GUIDE 22461 - PLUG, SCREW 22461 - PLUG, SCREW 22465A - KEY, WOODRUFF(FOR ADJUSTING LEVER) 22465B - SEAL, OIL(FOR ADJUSTING LEVER) 22468 - COVER, PLATE 22468A - O, RING 22471A - SHAFT, LEVER SUPPORTING 22480 - COVER SUB-ASSY, GOVERNOR 22552A - SPRING, RETURN(FOR CAM PLATE) 22552C - WASHER(FOR CAM PLATE BUSH) 22552C - WASHER(FOR CAM PLATE BUSH) 22557 - CAM, FULL STOP 22579 - ACTUATOR, FUEL CUT ** Std Part 22702 - LEVER ASSY, FLOATING 22761 - SLIDER(FOR SPEED CONTROL) 22761A - SHAFT, SLIDING WEIGHT ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
