TOYOTA LAND CRUISER 200 GRJ200L-GNMNKV / ELECTRICAL / HEATING AIR CONDITIONING COOLER UNIT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING COOLER UNIT

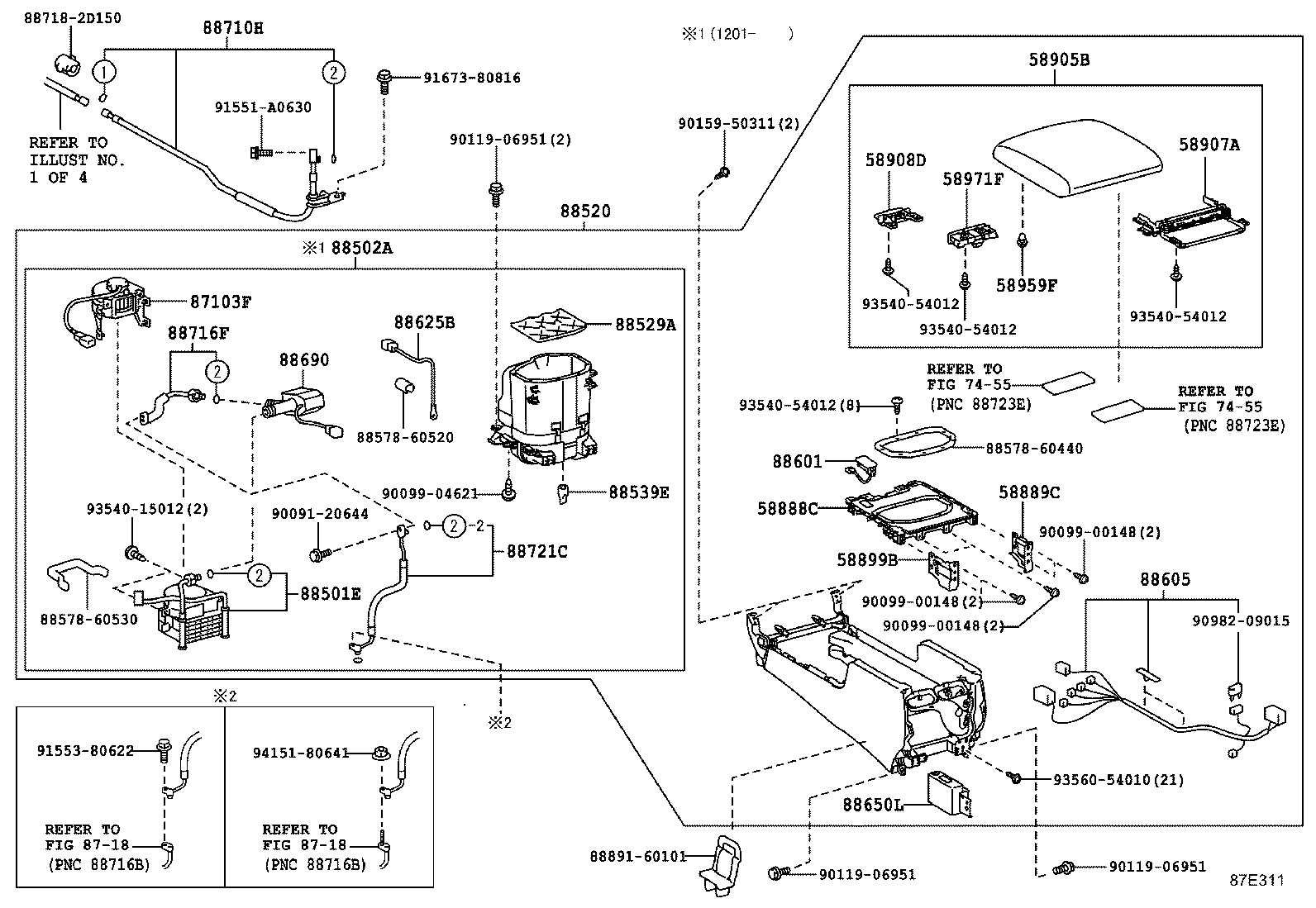

COOL BOX ILLUST NO. 3 OF 4(0709- )LHD

LAND CRUISER 200 | HEATING AIR CONDITIONING COOLER UNIT 58888C - BASE, COOLING BOX 58889C - BRACKET, COOLING BOX 58899B - BRACKET, COOLING BOX, NO.2 58905B - DOOR SUB-ASSY, CONSOLE COMPARTMENT(FOR COOL BOX) 58907A - HINGE SUB-ASSY, COOLING BOX DOOR 58908D - LOCK SUB-ASSY, COOLING BOX DOOR 58959F - CUSHION, COOLING BOX DOOR 58971F - LOCK, COOLING BOX DOOR ** Refer Fig ** Refer Fig 87103F - MOTOR SUB-ASSY, BLOWER W/FAN(FOR COOL BOX) ** Refer Fig ** Refer Fig 88501E - EVAPOLATOR SUB-ASSY, COOLER (COOL BOX) 88502A - CASE SUB-ASSY, COOLING UNIT 88520 - BOX ASSY, COOLING 88529A - TRAY, COOLING BOX 88539E - HOSE, COOLER UNIT DRAIN, NO.3 ** Std Part ** Std Part ** Std Part 88601 - SWITCH SUB-ASSY, COOLER CONTROL 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 88625B - THERMISTOR, COOLER NO.3 88650L - AMPLIFIER ASSY, AIR CONDITIONER (FOR COOL BOX) 88690 - VALVE ASSY, COOLER MAGNET 88710H - TUBE & ACCESSORY ASSY, AIRCONDITIONER 88716F - PIPE, COOLER REFRIGERANT LIQUID, F ** Std Part 88721C - HOSE, LIQUID ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
