TOYOTA LAND CRUISER 200 VDJ200L-GMMNZ / TOOL-ENGINE-FUEL / RADIATOR WATER OUTLET

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

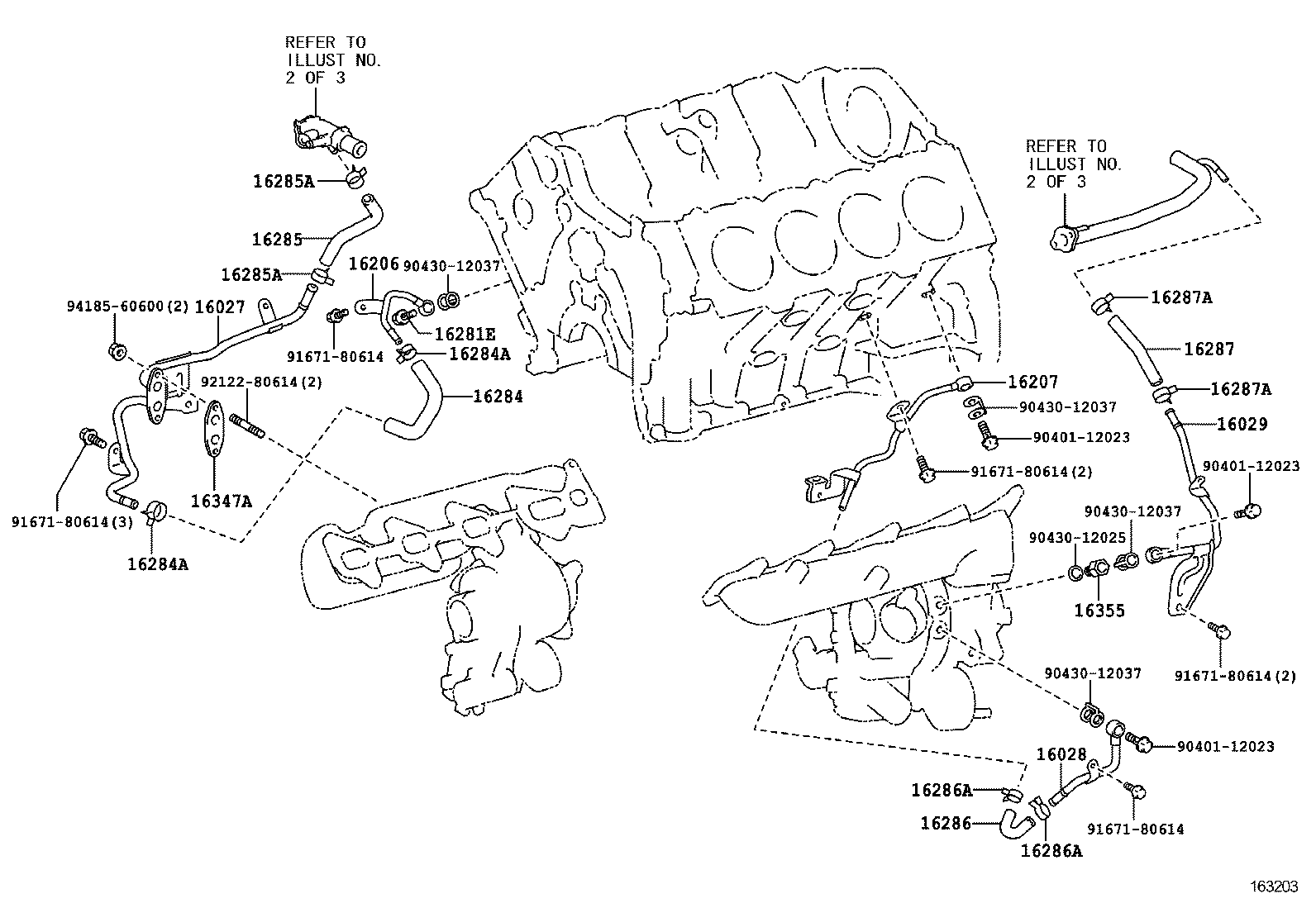

RADIATOR WATER OUTLET

ILLUST NO. 3 OF 3(0709- )1VDFTV

LAND CRUISER 200 | RADIATOR WATER OUTLET 16027 - PIPE SUB-ASSY, TURBO WATER, NO.1 16028 - PIPE SUB-ASSY, TURBO WATER, NO.2 16029 - PIPE SUB-ASSY, TURBO WATER, NO.3 16206 - PIPE SUB-ASSY, WATER BY-PASS 16207 - PIPE SUB-ASSY, WATER BY-PASS, NO.2 16281E - BOLT, UNION(FOR WATER BY-PASS PIPE UNION NO.3) 16284 - HOSE, TURBO WATER, NO.1 16284A - CLIP(FOR TURBO WATER HOSE NO.1) 16284A - CLIP(FOR TURBO WATER HOSE NO.1) 16285 - HOSE, TURBO WATER, NO.2 16285A - CLIP(FOR TURBO WATER HOSE NO.2) 16285A - CLIP(FOR TURBO WATER HOSE NO.2) 16286 - HOSE, TURBO WATER, NO.3 16286A - CLIP(FOR TURBO WATER HOSE NO.3) 16286A - CLIP(FOR TURBO WATER HOSE NO.3) 16287 - HOSE, TURBO WATER, NO.4 16287A - CLIP(FOR TURBO WATER HOSE NO.4) 16287A - CLIP(FOR TURBO WATER HOSE NO.4) 16347A - GASKET(FOR TURBO WATER PIPE) 16355 - JOINT, WATER BY-PASS, FRONT ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
