TOYOTA LAND CRUISER 70 FZJ78R-RJMRK / ELECTRICAL / HEATING AIR CONDITIONING COOLER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING COOLER PIPING

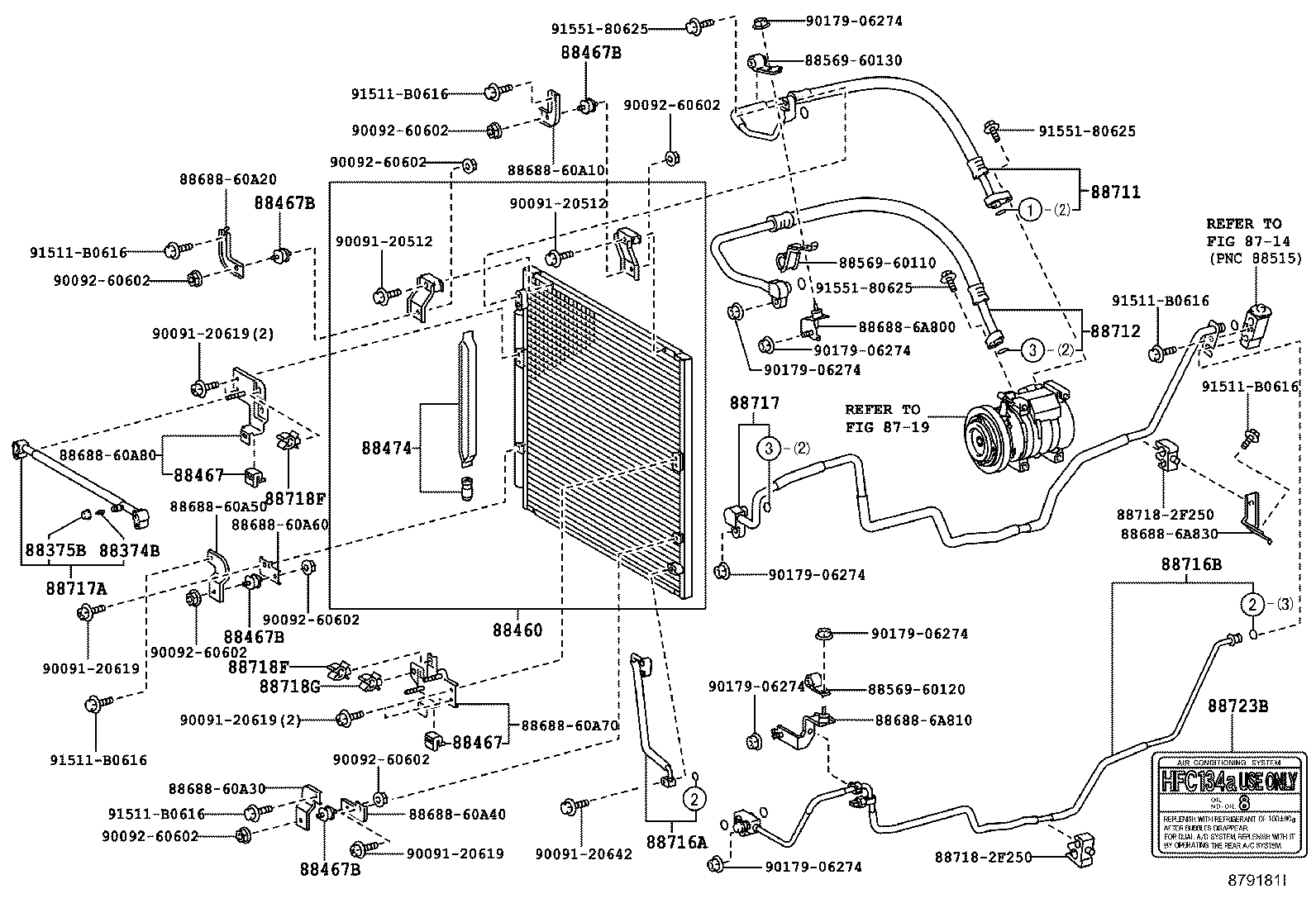

ILLUST NO. 1 OF 3(0701-0907)FZJ71,78,79..RHD

LAND CRUISER 70 | HEATING AIR CONDITIONING COOLER PIPING ** Refer Fig ** Refer Fig 88374B - VALVE, SERVICE, NO.1 88375B - CAP, SERVICE VALVE, NO.1 88460 - CONDENSER ASSY, COOLER 88467 - CUSHION, COOLER CONDENSER, NO.1 88467 - CUSHION, COOLER CONDENSER, NO.1 88467B - INSULATOR, COOLER CONDENSER MOUNTING 88467B - INSULATOR, COOLER CONDENSER MOUNTING 88467B - INSULATOR, COOLER CONDENSER MOUNTING 88467B - INSULATOR, COOLER CONDENSER MOUNTING 88474 - DRYER, COOLER ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 88716A - PIPE, COOLER REFRIGERANT LIQUID, A 88716B - PIPE, COOLER REFRIGERANT LIQUID, B 88717 - PIPE, COOLER REFRIGERANT SUCTION, NO.1 88717A - PIPE, COOLER REFRIGERANT SUCTION, A ** Std Part ** Std Part 88718F - CLAMP(FOR COOLER REFRIGERANT HOSE), NO.1 88718F - CLAMP(FOR COOLER REFRIGERANT HOSE), NO.1 88718G - CLAMP(FOR COOLER REFRIGERANT HOSE), NO.2 88723B - LABEL, COOLER SERVICE CAUTION ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
