TOYOTA CAMRY HYBRID ASIA ACV41R-JEPEKE / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SWITCH RELAY COMPUTER

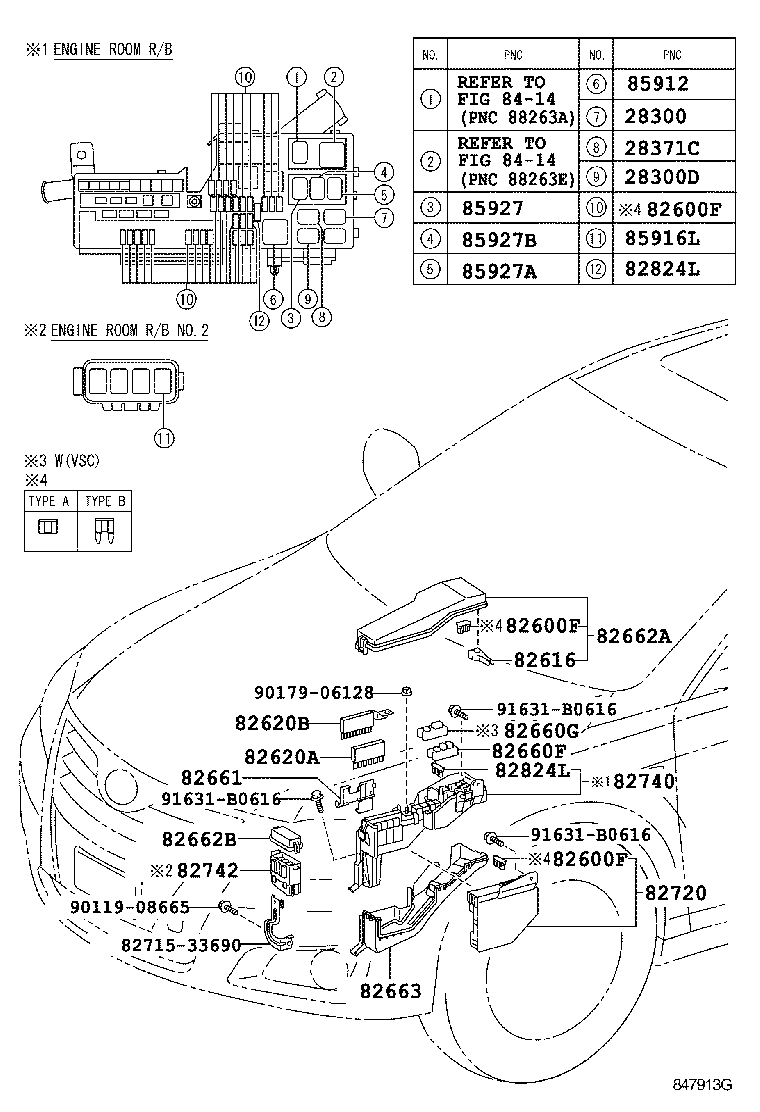

ENGINE ROOM ILLUST NO. 2 OF 7(0605- )ACV4#

CAMRY HYBRID ASIA | SWITCH RELAY COMPUTER 28300 - RELAY ASSY, STARTER 28300D - RELAY, STARTER CUT 28371C - RELAY, IGNITION, NO.2 82600F - FUSE, FUSE BLOCK 82600F - FUSE, FUSE BLOCK 82600F - FUSE, FUSE BLOCK 82616 - PULLER, FUSE 82620A - BLOCK ASSY, FUSIBLE LINK 82620B - BLOCK ASSY, FUSIBLE LINK 82660F - BLOCK ASSY, RELAY 82660G - BLOCK ASSY, RELAY 82661 - COVER, RELAY BLOCK, NO.1 82662A - COVER, RELAY BLOCK, UPPER, NO.1 82662B - COVER, RELAY BLOCK, UPPER, NO.2 82663 - COVER, RELAY BLOCK, LOWER ** Std Part 82720 - BLOCK ASSY, ENGINE ROOM JUNCTION 82740 - BLOCK ASSY, ENGINE ROOM RELAY 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 82824L - PIN, SHORT 82824L - PIN, SHORT ** Refer Fig ** Refer Fig 85912 - RELAY, DEFOGGER 85916L - RELAY, REAR FOG LAMP 85927 - RELAY, COOLING FAN 85927A - RELAY, COOLING FAN, NO.2 85927B - RELAY, COOLING FAN, NO.3 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
