TOYOTA DYNA WU342R-TKMRBD3 / BODY / SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

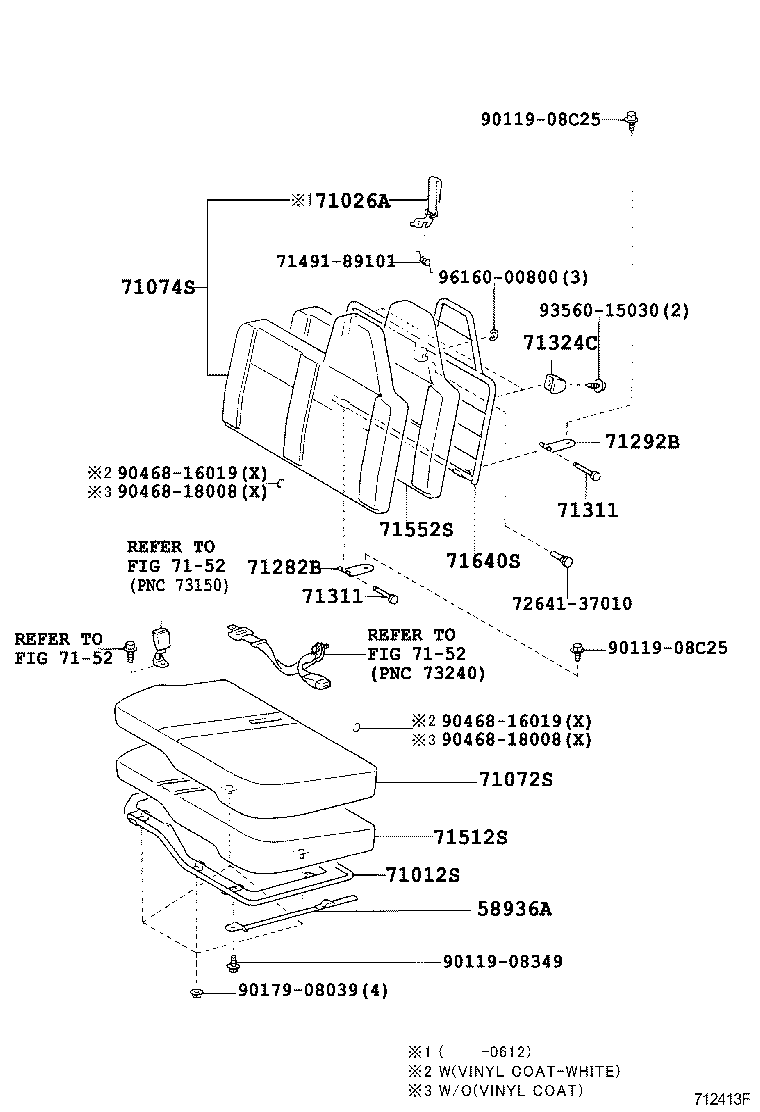

SEAT SEAT TRACK

PASSENGER SIDE ILLUST NO. 2 OF 2(0209- )DCRTH,DCRTJ,DSL..IDN

DYNA | SEAT SEAT TRACK 58936A - BAND, ENGINE SERVICE HOLE COVER SUPPORT 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH 71026A - SUPPORT, FRONT SEAT BACK, LH 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) 71282B - HINGE, FRONT SEAT BACK, LOWER RH 71292B - HINGE, FRONT SEAT BACK, LOWER LH 71311 - PIN, FRONT SEAT HINGE 71311 - PIN, FRONT SEAT HINGE 71324C - CUSHION, FRONT SEAT ** Std Part 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) ** Refer Fig ** Refer Fig ** Refer Fig 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
