TOYOTA DYNA WU342R-TKMRBD3 / TOOL-ENGINE-FUEL / RADIATOR WATER OUTLET

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

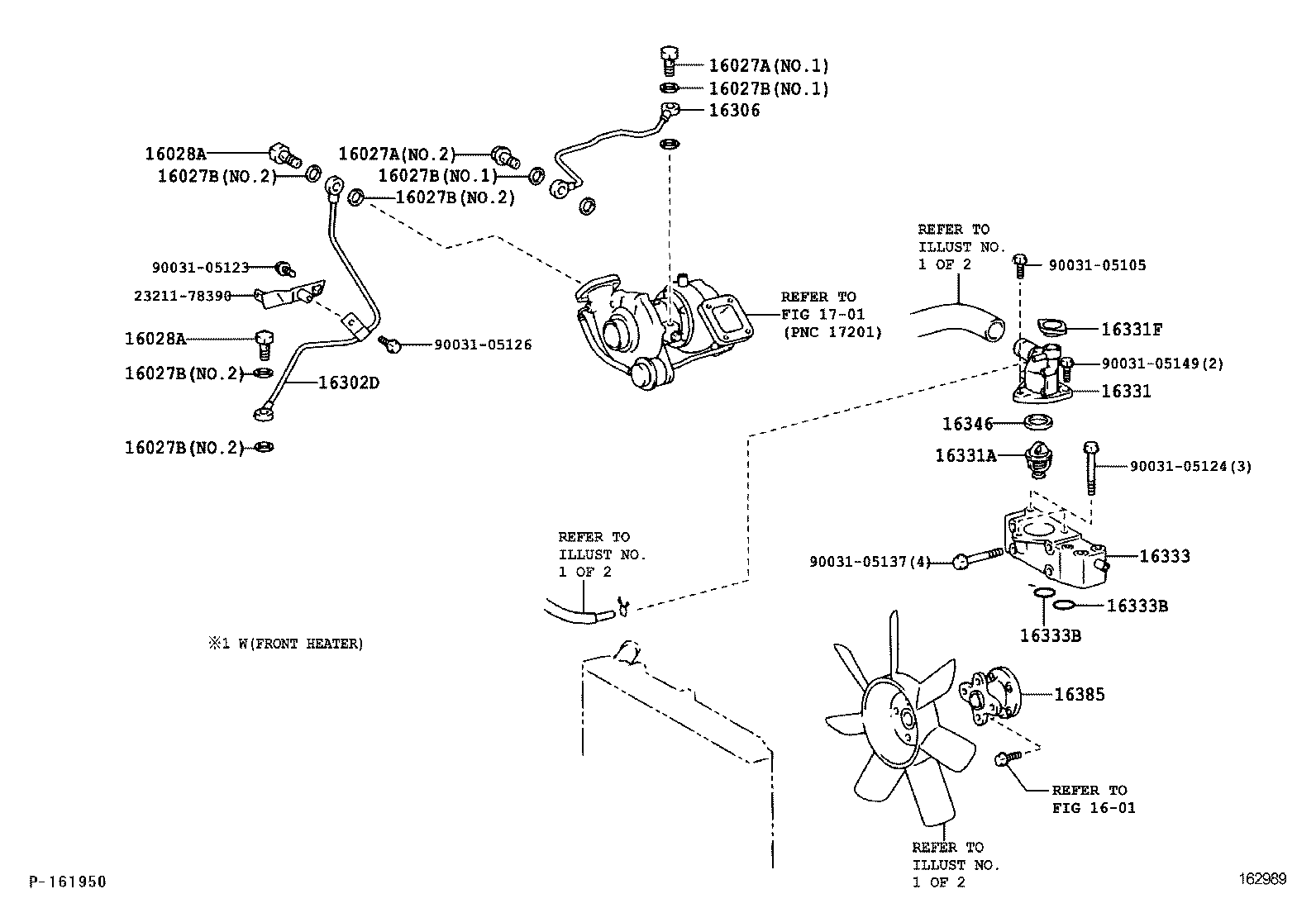

RADIATOR WATER OUTLET

ILLUST NO. 2 OF 2(0612- )W04D..WU302,342..DCRTH,DCRTJ..IDN

DYNA | RADIATOR WATER OUTLET ** Refer Fig 16027A - BOLT, UNION(FOR TURBO WATER PIPE) 16027A - BOLT, UNION(FOR TURBO WATER PIPE) 16027B - GASKET(FOR TURBO WATER PIPE) 16027B - GASKET(FOR TURBO WATER PIPE) 16027B - GASKET(FOR TURBO WATER PIPE) 16027B - GASKET(FOR TURBO WATER PIPE) 16027B - GASKET(FOR TURBO WATER PIPE) 16027B - GASKET(FOR TURBO WATER PIPE) 16028A - BOLT, UNION(FOR TURBO WATER PIPE NO.2) 16028A - BOLT, UNION(FOR TURBO WATER PIPE NO.2) 16302D - PIPE SUB-ASSY, WATER INLET 16306 - PIPE SUB-ASSY, WATER OUTLET 16331 - OUTLET, WATER 16331A - THERMOSTAT 16331F - CAP SUB-ASSY(FOR WATER OUTLET) 16333 - HOUSING, WATER OUTLET 16333B - RING, O(FOR WATER OUTLET HOUSING) 16333B - RING, O(FOR WATER OUTLET HOUSING) 16346 - GASKET, THERMOSTAT 16385 - SLIDER, FAN BELT ADJUSTING ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
