TOYOTA DYNA XZU412L-TKFRW3 / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SWITCH RELAY COMPUTER

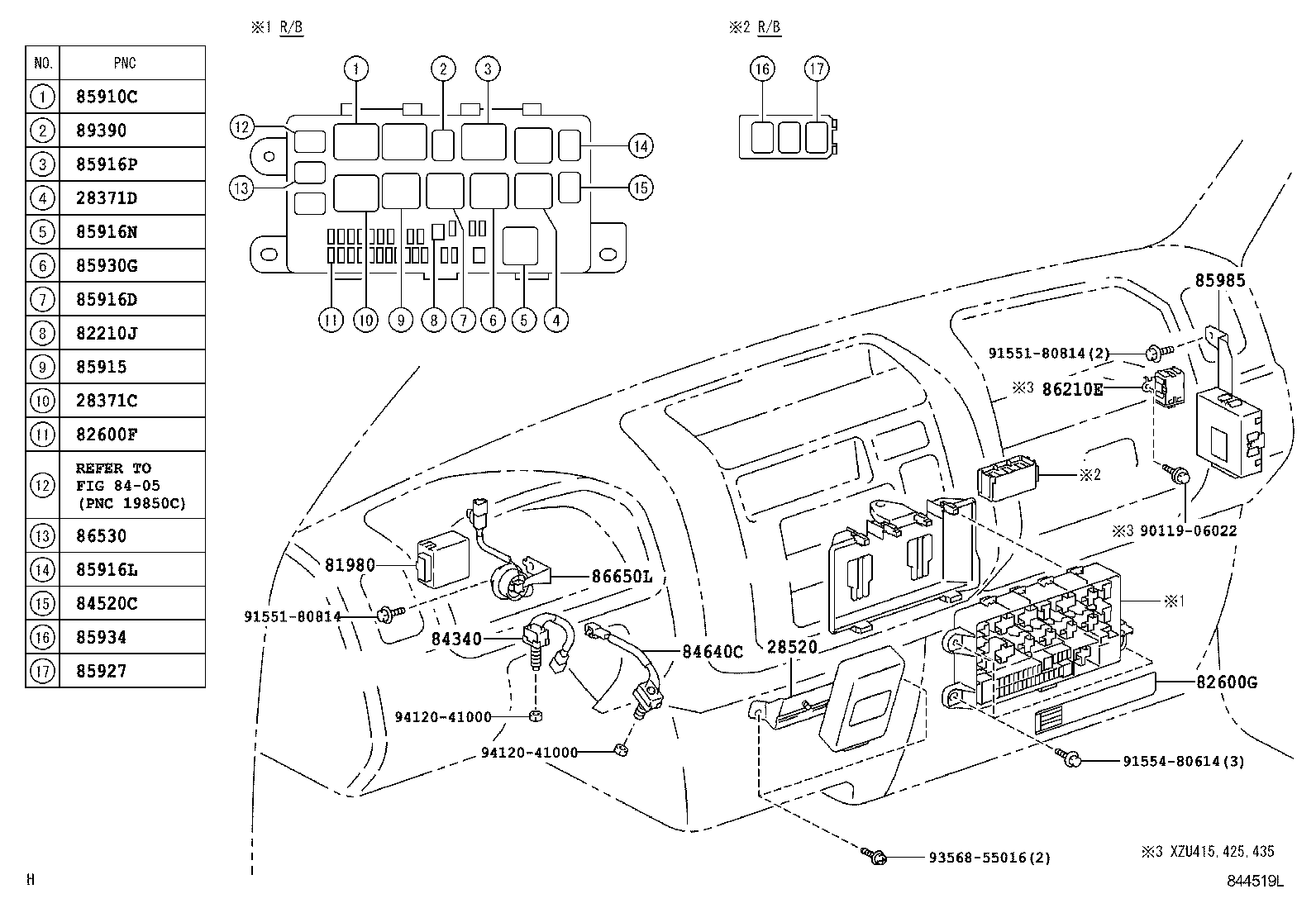

INSTRUMENT PANEL & COWL ILLUST NO. 5 OF10(0110-0802)BU410,420,XZU412,414,415,422,424,425,

DYNA | SWITCH RELAY COMPUTER 28371C - RELAY, IGNITION, NO.2 28371D - RELAY, IGNITION, NO.3 28520 - TIMER ASSY, PREHEATING 81980 - FLASHER ASSY, TURN SIGNAL 82210J - FUSIBLE LINK 82600F - FUSE, FUSE BLOCK 82600G - PLATE, CAUTION(FOR FUSE) ** Refer Fig 84340 - SWITCH ASSY, STOP LAMP 84520C - RELAY, NEUTRAL SIGNAL REVERSE 84640C - SWITCH ASSY, EXHAUST RETARDER 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) 85915 - RELAY, MAIN 85916D - RELAY, FOG LAMP 85916L - RELAY, REAR FOG LAMP 85916N - RELAY, TAIL LAMP 85916P - RELAY, HEADLAMP 85927 - RELAY, COOLING FAN 85930G - RELAY, ACC 85934 - RELAY, MAGNET-CLUTCH 85985 - RELAY, KEY REMINDER 86210E - CONVERTER ASSY, VOLTAGE 86530 - RELAY ASSY, HORN 86650L - BUZZER ASSY, VACUUM WARNING 89390 - RELAY, BRAKE WARNING ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
