TOYOTA DYNA XZU423R-TKFRDN3 / TOOL-ENGINE-FUEL / RADIATOR WATER OUTLET

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

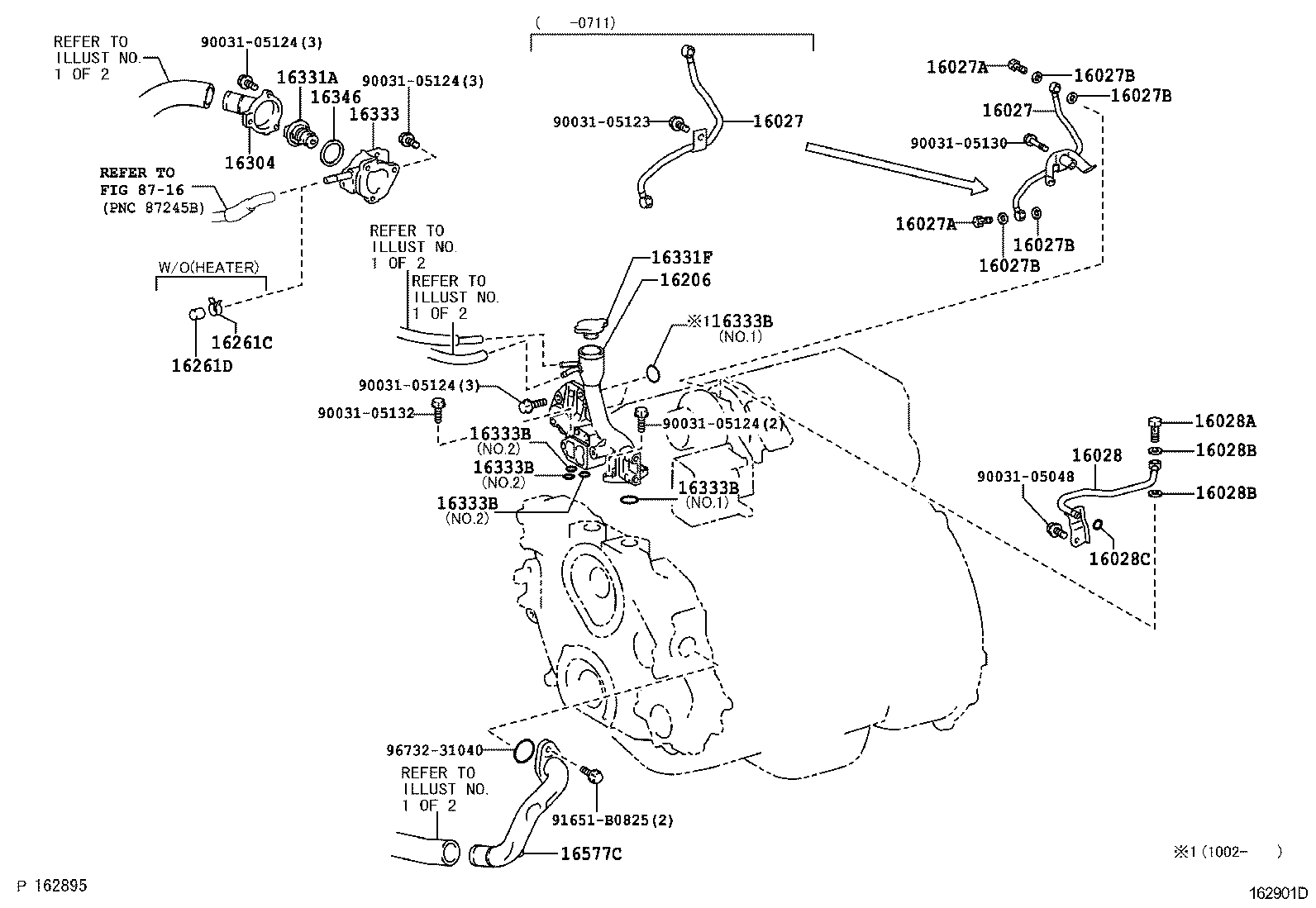

RADIATOR WATER OUTLET

ILLUST NO. 2 OF 2(0610- )N04C..XZU413,423,433

 DYNA |  RADIATOR WATER OUTLET 16027 - PIPE SUB-ASSY, TURBO WATER, NO.1 16027 - PIPE SUB-ASSY, TURBO WATER, NO.1 16027A - BOLT, UNION(FOR TURBO WATER PIPE) 16027A - BOLT, UNION(FOR TURBO WATER PIPE) 16027B - GASKET(FOR TURBO WATER PIPE) 16027B - GASKET(FOR TURBO WATER PIPE) 16027B - GASKET(FOR TURBO WATER PIPE) 16027B - GASKET(FOR TURBO WATER PIPE) 16028 - PIPE SUB-ASSY, TURBO WATER, NO.2 16028A - BOLT, UNION(FOR TURBO WATER PIPE NO.2) 16028B - GASKET(FOR TURBO WATER PIPE NO.2) 16028B - GASKET(FOR TURBO WATER PIPE NO.2) 16028C - RING, O(FOR TURBO WATER PIPE) 16206 - PIPE SUB-ASSY, WATER BY-PASS 16261C - CLAMP, W/O HEATER 16261D - PLUG, W/O HEATER 16304 - OUTLET SUB-ASSY, WATER 16331A - THERMOSTAT 16331F - CAP SUB-ASSY(FOR WATER OUTLET) 16333 - HOUSING, WATER OUTLET 16333B - RING, O(FOR WATER OUTLET HOUSING) 16333B - RING, O(FOR WATER OUTLET HOUSING) 16333B - RING, O(FOR WATER OUTLET HOUSING) 16333B - RING, O(FOR WATER OUTLET HOUSING) 16333B - RING, O(FOR WATER OUTLET HOUSING) 16346 - GASKET, THERMOSTAT 16577C - PIPE, RADIATOR ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
