TOYOTA RAV4 ZSA35L-AWFXPW / BODY / ROOF PANEL BACK PANEL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

ROOF PANEL BACK PANEL

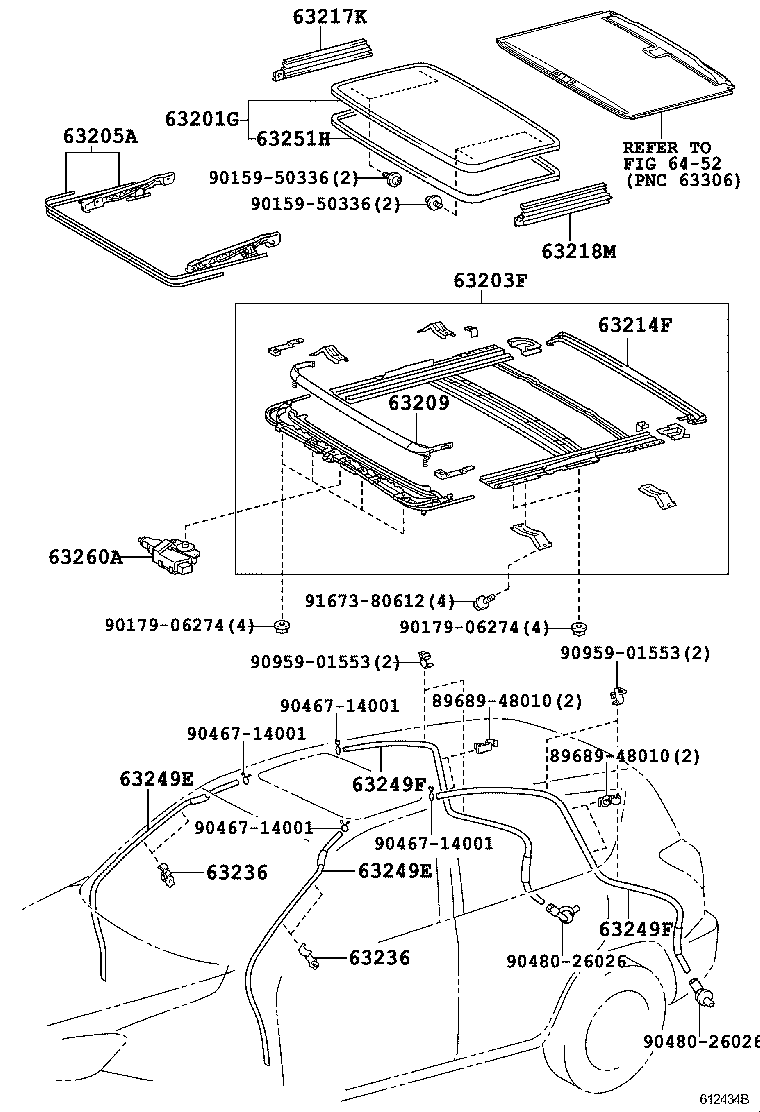

SLIDING ROOF ILLUST NO. 2 OF 3(0511- )

 RAV4 |  ROOF PANEL BACK PANEL 63201G - GLASS SUB-ASSY, SLIDING ROOF 63203F - HOUSING SUB-ASSY, SLIDING ROOF 63205A - CABLE SUB-ASSY, SLIDING ROOF DRIVE 63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR 63214F - CHANNEL, ROOF DRIP, REAR 63217K - GARNISH, SLIDING ROOF SIDE, RH 63218M - GARNISH, SLIDING ROOF SIDE, LH 63236 - CLAMP, SLIDING ROOF OR REMOVABLE ROOF DRAIN HOSE 63236 - CLAMP, SLIDING ROOF OR REMOVABLE ROOF DRAIN HOSE 63249E - HOSE, SLIDING ROOF DRAIN 63249E - HOSE, SLIDING ROOF DRAIN 63249F - HOSE, SLIDING ROOF DRAIN 63249F - HOSE, SLIDING ROOF DRAIN 63251H - WEATHERSTRIP, SLIDING ROOF 63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
