TOYOTA VIOS SOLUNA VIOS SCP42L-EEPSKC / TOOL-ENGINE-FUEL / RADIATOR WATER OUTLET

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

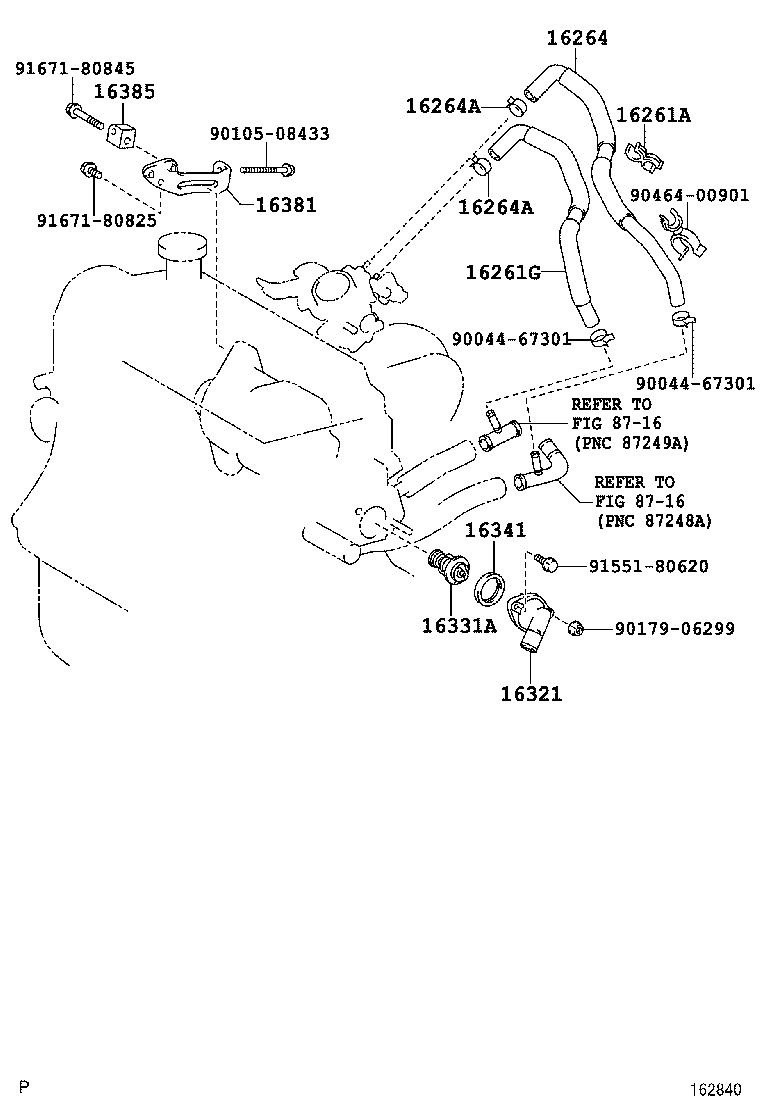

RADIATOR WATER OUTLET

ILLUST NO. 2 OF 2(0608- )2SZFE,3SZFE

 VIOS SOLUNA VIOS |  RADIATOR WATER OUTLET 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) 16261G - HOSE, WATER BY-PASS, NO.1 16264 - HOSE, WATER BY-PASS, NO.2 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) 16321 - INLET, WATER 16331A - THERMOSTAT 16341 - GASKET, WATER OUTLET 16381 - BAR, FAN BELT ADJUSTING 16385 - SLIDER, FAN BELT ADJUSTING ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
