TOYOTA COASTER CHINA TRB53L-ZCMSK / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SWITCH RELAY COMPUTER

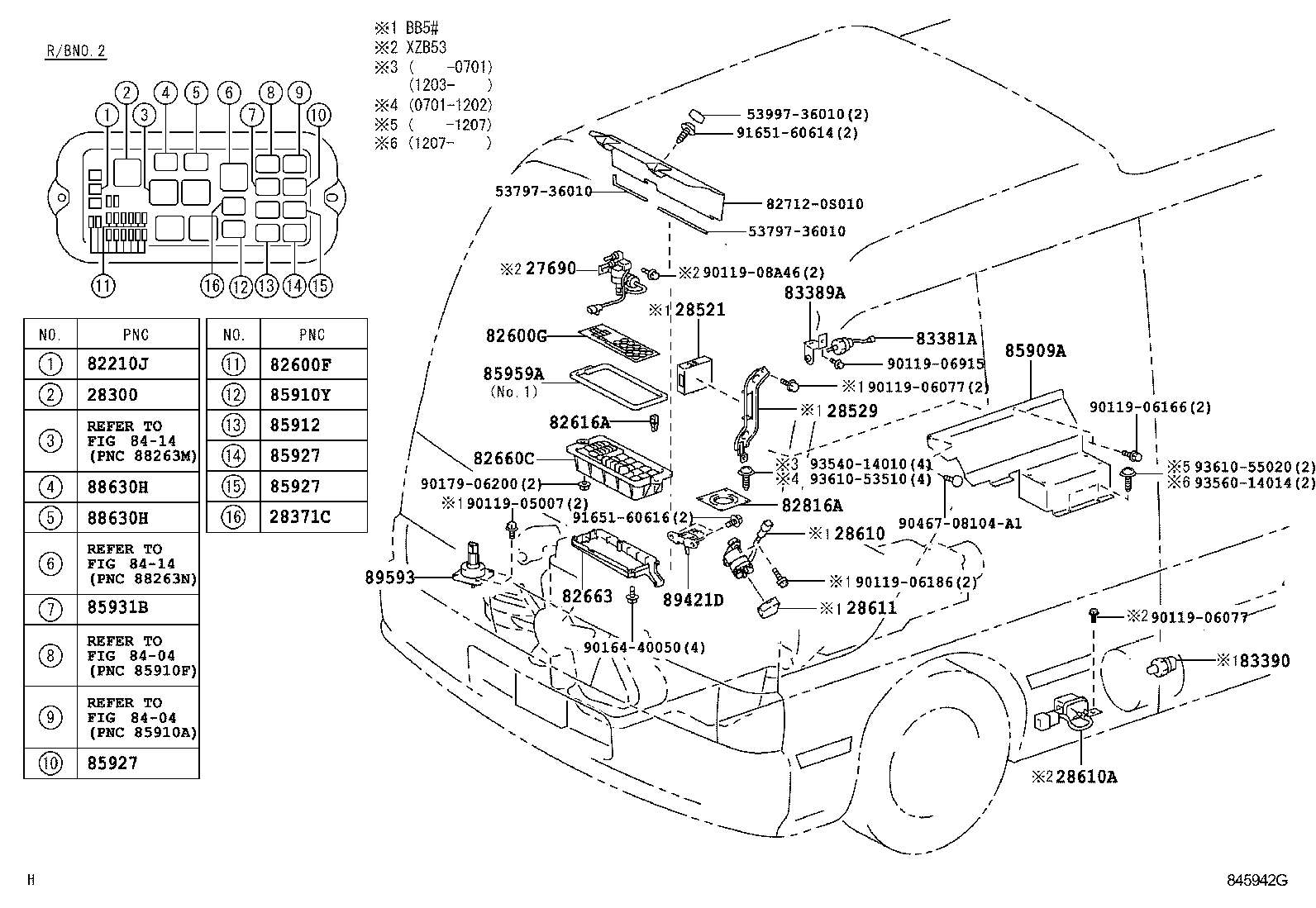

ENGINE ROOM ILLUST NO. 2 OF 6(0310- )

COASTER CHINA | SWITCH RELAY COMPUTER 27690 - SOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE) 28300 - RELAY ASSY, STARTER 28371C - RELAY, IGNITION, NO.2 28521 - TIMER, PREHEATING 28529 - BRACKET, PREHEATING TIMER, NO.1 28610 - RELAY ASSY, GLOW PLUG 28610A - RELAY ASSY, GLOW PLUG(SUB) 28611 - COVER, GLOW PLUG RELAY ** Std Part ** Std Part ** Std Part 82210J - FUSIBLE LINK 82600F - FUSE, FUSE BLOCK 82600G - PLATE, CAUTION(FOR FUSE) 82616A - PULLER, FUSE, NO.2 82660C - BLOCK ASSY, RELAY 82663 - COVER, RELAY BLOCK, LOWER ** Std Part 82816A - BRACKET, WIRING HARNESS GROMMET 83381A - SWITCH, PRESSURE 83389A - BRACKET, PRESSURE SWITCH 83390 - SWITCH ASSY, VACUUM WARNING ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 85909A - BRACKET SUB-ASSY, RELAY BLOCK 85910Y - RELAY, REAR HEATER 85912 - RELAY, DEFOGGER 85927 - RELAY, COOLING FAN 85927 - RELAY, COOLING FAN 85927 - RELAY, COOLING FAN 85931B - RELAY, FUEL HEATER 85959A - HOLDER, RELAY 88630H - RELAY ASSY, COOLER 88630H - RELAY ASSY, COOLER 89421D - SENSOR, TURBO PRESSURE 89593 - SENSOR, AIR CLEANER WARNING ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
