TOYOTA CROWN CHINA GRS182L-DETUKC / BODY / FRONT SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FRONT SEAT SEAT TRACK

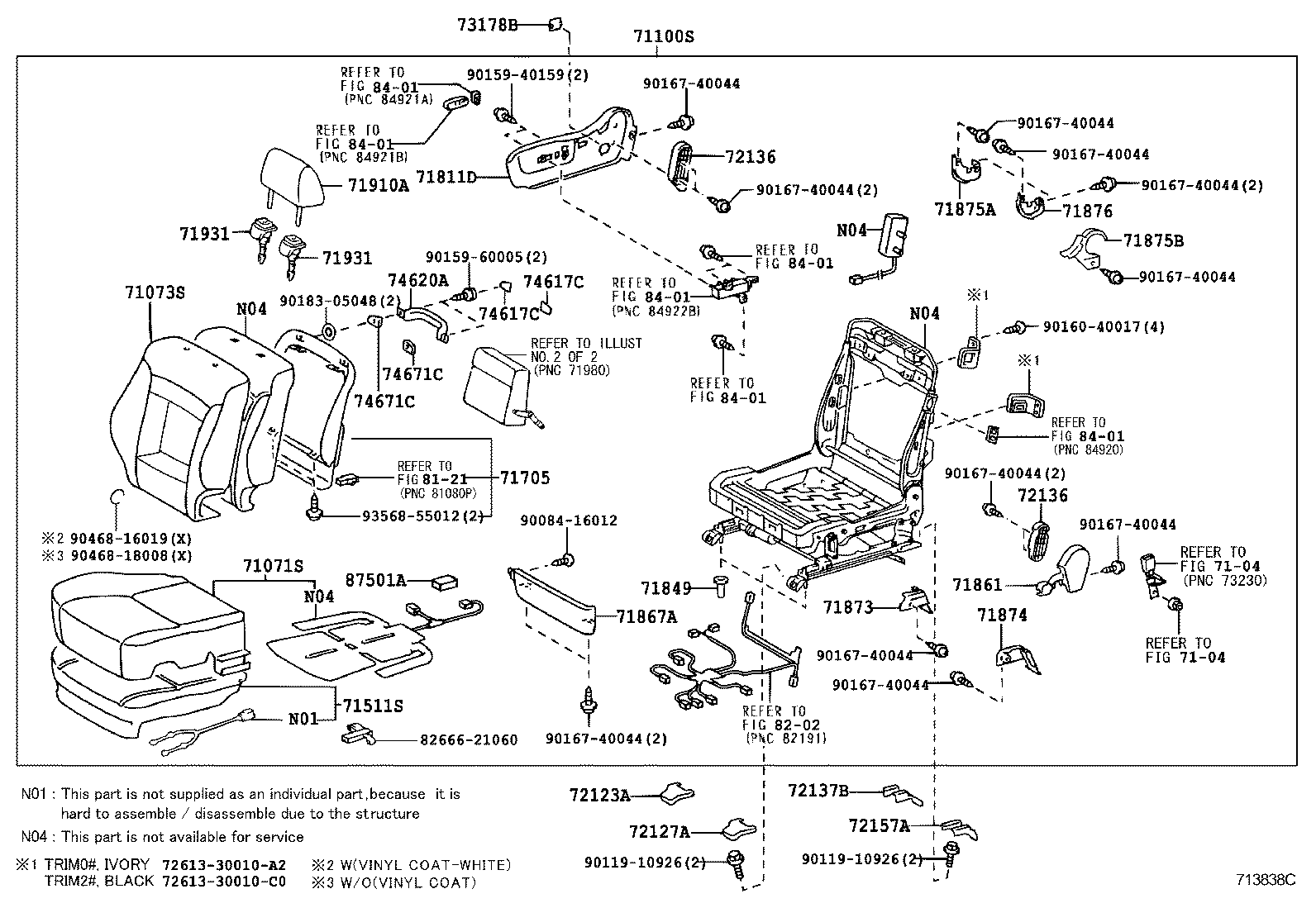

RH SEAT ILLUST NO. 1 OF 2(0502- )ROYG

CROWN CHINA | FRONT SEAT SEAT TRACK ** Refer Fig ** Refer Fig 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) 71100S - SEAT ASSY, FRONT RH 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH 71811D - SHIELD, FRONT SEAT CUSHION, RH 71849 - CAP, SEAT ADJUSTER COVER, LH 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH 71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH 71875A - COVER, RECLINING ADJUSTER INSIDE, RH 71875B - COVER, RECLINING ADJUSTER INSIDE, RH 71876 - COVER, RECLINING ADJUSTER INSIDE, LH 71910A - HEADREST ASSY, FRONT SEAT 71931 - SUPPORT, FRONT SEAT HEADREST 71931 - SUPPORT, FRONT SEAT HEADREST 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH 72136 - SPACER, SEAT TRACK, LOWER NO.1 72136 - SPACER, SEAT TRACK, LOWER NO.1 72137B - COVER, SEAT TRACK, RH 72157A - COVER, SEAT TRACK BRACKET, INNER RH ** Std Part ** Std Part 73178B - CAP, SEAT BELT ANCHOR COVER 74617C - PLUG, ASSIST GRIP 74617C - PLUG, ASSIST GRIP 74620A - GRIP ASSY, ASSIST, REAR 74671C - SUPPORT, ASSIST GRIP 74671C - SUPPORT, ASSIST GRIP ** Refer Fig ** Refer Fig ** Std Part ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 87501A - CONTROL SUB-ASSY, SEAT HEATER, RH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
