TOYOTA CROWN CHINA GRS182L-DETUKC / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

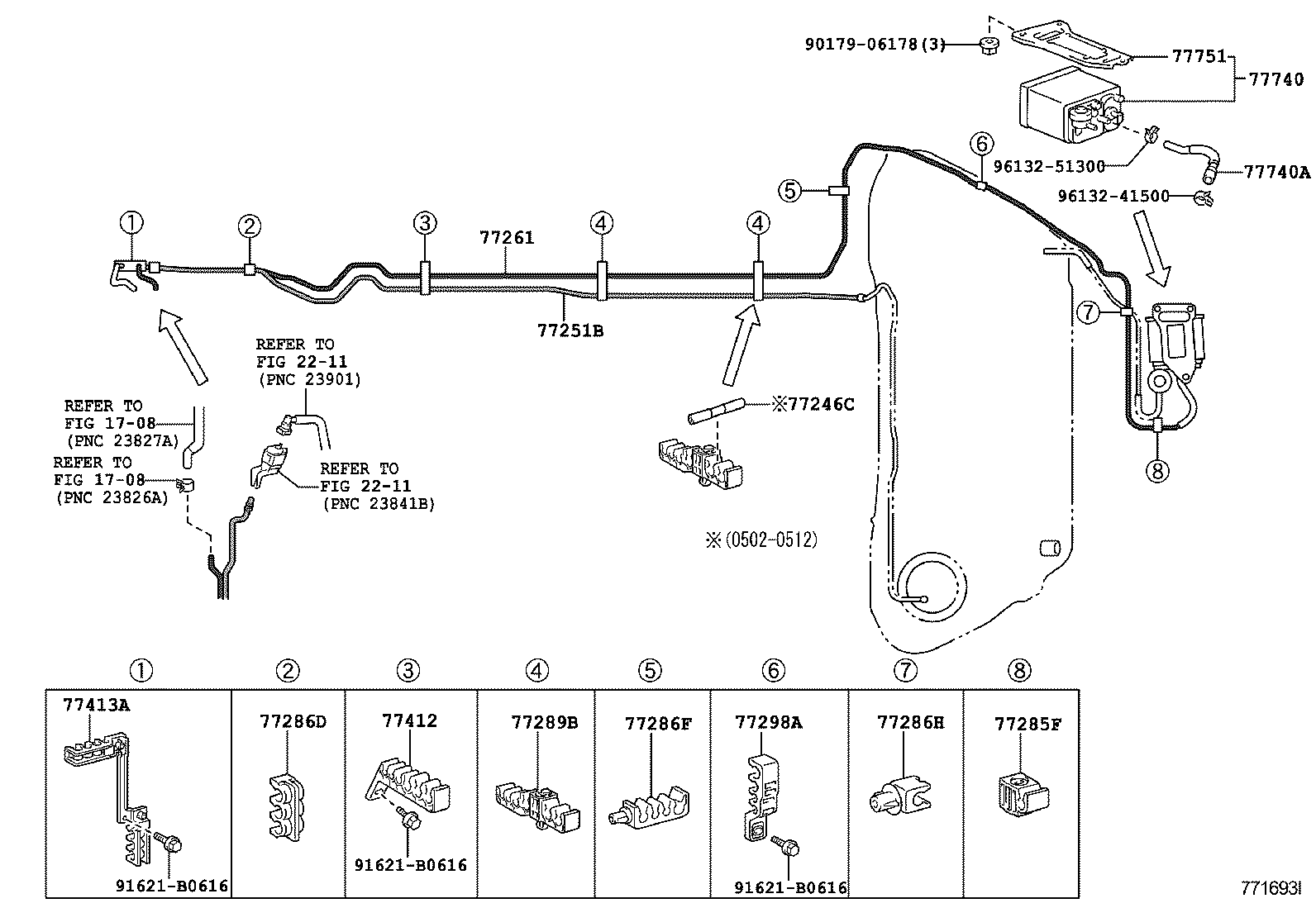

FUEL TANK TUBE

FUEL TUBE ILLUST NO. 2 OF 2(0502- )

CROWN CHINA | FUEL TANK TUBE ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 77246C - SUPPORT, FUEL MAIN TUBE 77251B - TUBE, FUEL MAIN 77261 - TUBE SUB-ASSY, FUEL EMISSION 77285F - CLAMP, FUEL TUBE, NO.1 77286D - CLAMP, FUEL TUBE, NO.2 77286F - CLAMP, FUEL TUBE, NO.2 77286H - CLAMP, FUEL TUBE, NO.3 77289B - CLAMP, FUEL TUBE, NO.3 77298A - CLAMP, FUEL TUBE, NO.4 77412 - SUPPORT, FUEL TUBE GROMMET, NO.2 77413A - SUPPORT, FUEL TUBE GROMMET, NO.3 77740 - CANISTER ASSY, CHARCOAL 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) 77751 - BRACKET, CHARCOAL CANISTER BASE ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
