TOYOTA HILUX KUN15L-TRMDYV3 / TOOL-ENGINE-FUEL / AIR CLEANER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

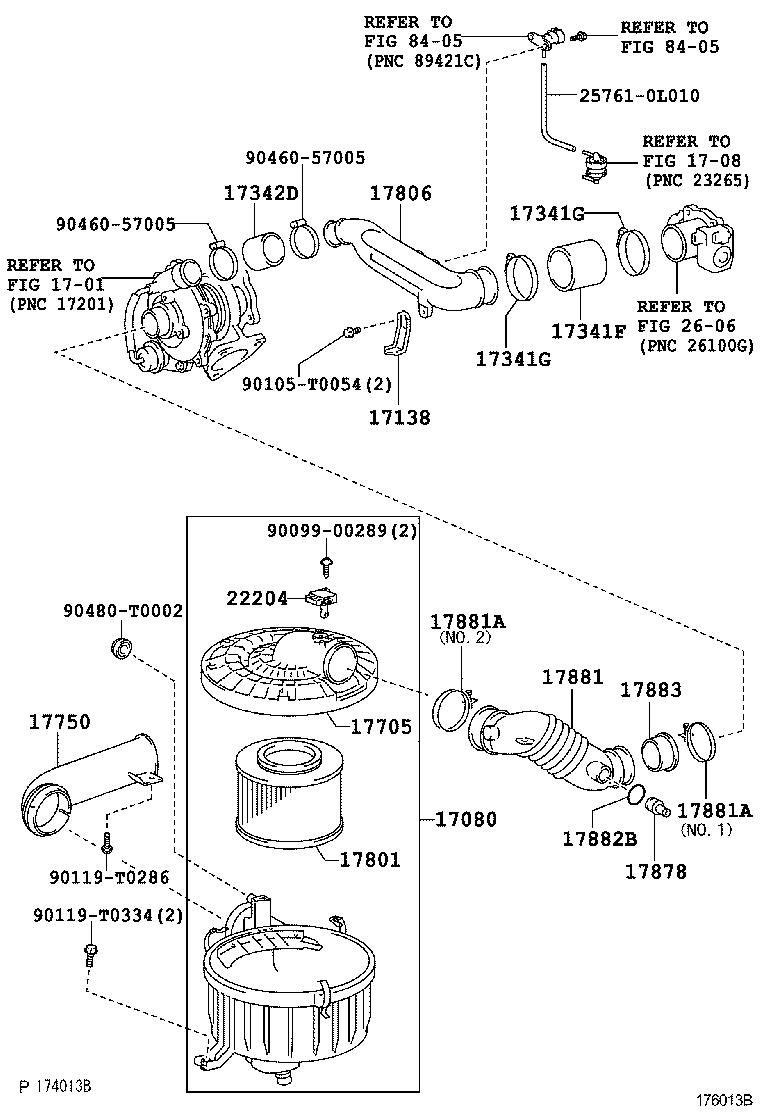

AIR CLEANER

PHILIPPINES SPEC (0808-1012)2KDFTV..KUN15..GCC..IV3

HILUX | AIR CLEANER ** Refer Fig ** Refer Fig 17080 - CLEANER ASSY, AIR W/AIR FLOW METER 17138 - STAY, INTAKE PIPE OR HOSE 17341F - HOSE, AIR, NO.1 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) 17342D - HOSE, AIR, NO.2 17705 - CAP SUB-ASSY, AIR CLEANER 17750 - COVER ASSY, AIR CLEANER INLET, SEAL 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER 17806 - PIPE SUB-ASSY, AIR CLEANER, NO.2 17878 - PIPE, INTAKE AIR CONNECTOR, NO.3 17881 - HOSE, AIR CLEANER, NO.1 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) 17882B - CLAMP(FOR COOL AIR INTAKE) 17883 - HOSE, AIR CLEANER, NO.3 22204 - METER SUB-ASSY, INTAKE AIR FLOW ** Std Part ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
