TOYOTA LAND CRUISER PRADO GRJ150L-GKFEK / POWERTRAIN-CHASSIS / CLUTCH PEDAL FLEXIBLE HOSE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

CLUTCH PEDAL FLEXIBLE HOSE

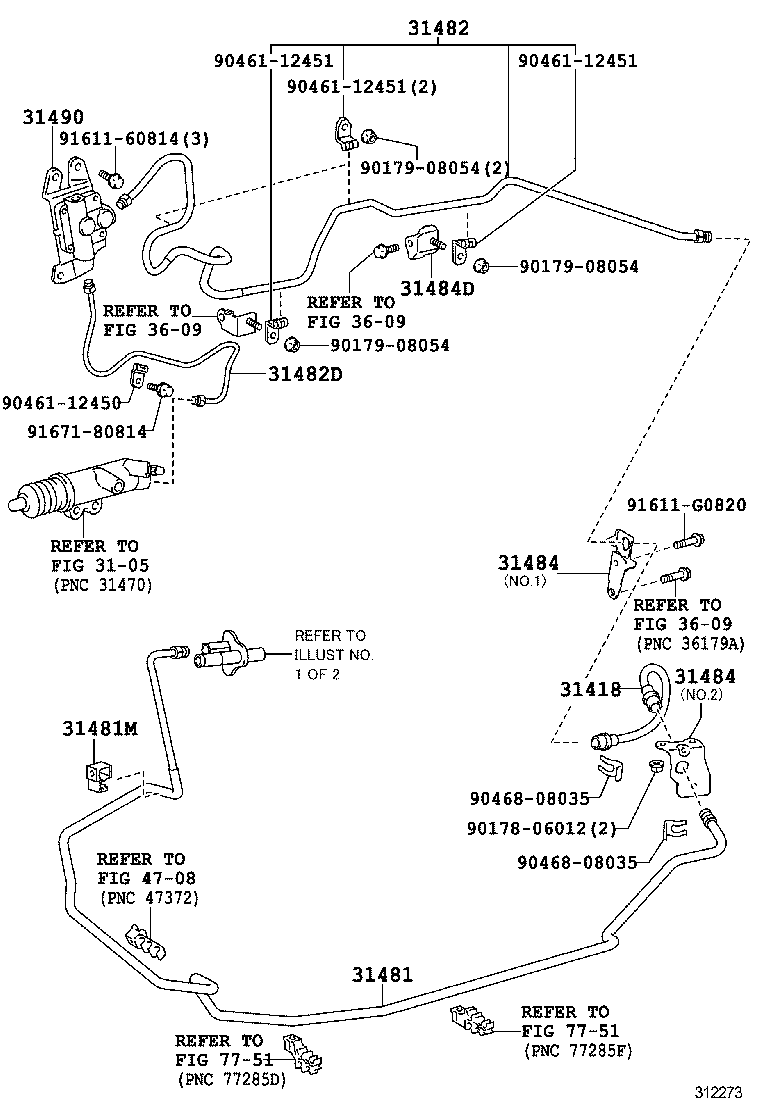

ILLUST NO. 2 OF 2(0908- )GRJ150..LHD..6F

LAND CRUISER PRADO | CLUTCH PEDAL FLEXIBLE HOSE ** Refer Fig 31418 - HOSE, CLUTCH 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE 31481M - CLAMP(FOR CLUTCH MASTER CYLINDER TUBE) 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE 31482D - TUBE, CLUTCH RELEASE CYLINDER TO ACCUMULATOR 31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH) 31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH) 31484D - BRACKET, CLUTCH TUBE, NO.2 31490 - ACCUMULATOR ASSY, CLUTCH ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
