TOYOTA PRIUS ZVW30R-AHXEBQ / BODY / FRONT FENDER APRON DASH PANEL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FRONT FENDER APRON DASH PANEL

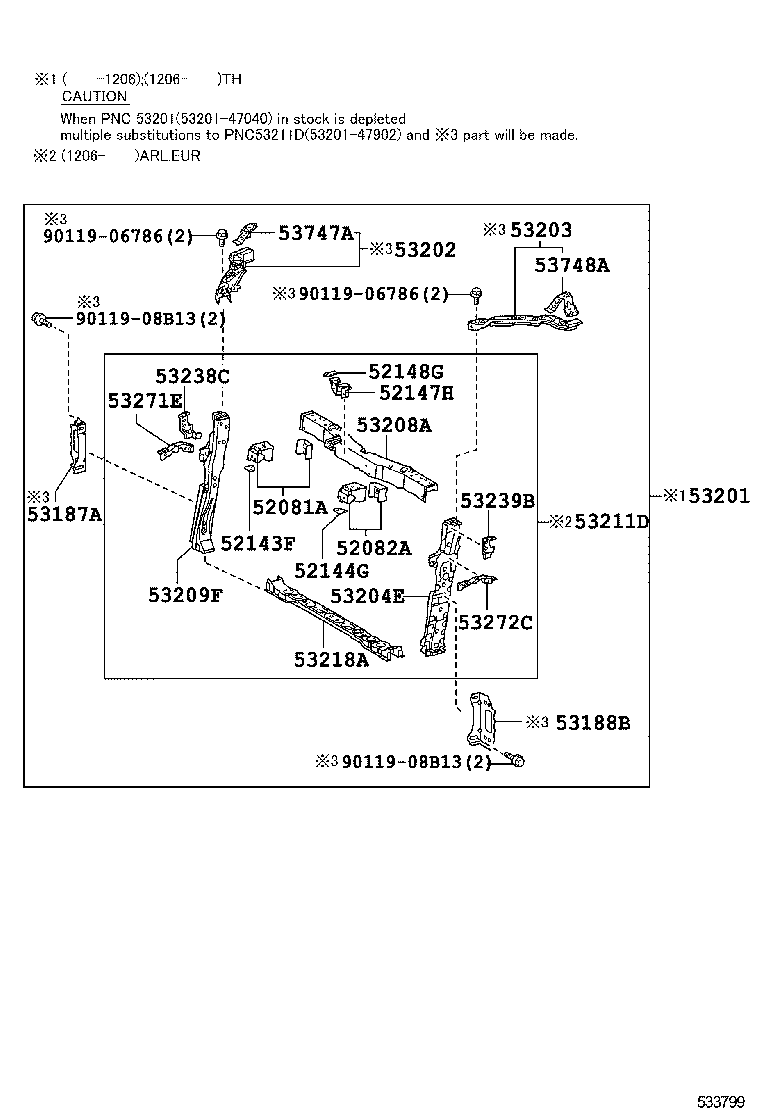

RADIATOR SUPPORT ILLUST NO. 2 OF 2(0904- )

PRIUS | FRONT FENDER APRON DASH PANEL 52081A - STAY SUB-ASSY, FRONT BUMPER, RH 52082A - STAY SUB-ASSY, FRONT BUMPER, LH 52143F - BRACKET, FRONT BUMPER SIDE, RH 52144G - BRACKET, FRONT BUMPER SIDE, LH 52147H - BRACKET, FRONT BUMPER MOUNTING 52148G - BRACKET, FRONT BUMPER MOUNTING, NO.2 53187A - STAY, RADIATOR SUPPORT, RH 53188B - STAY, RADIATOR SUPPORT, LH 53201 - SUPPORT SUB-ASSY, RADIATOR 53202 - SUPPORT SUB-ASSY, RADIATOR, RH 53203 - SUPPORT SUB-ASSY, RADIATOR, LH 53204E - BRACE SUB-ASSY, RADIATOR SUPPORT TO CROSS MEMBER, LH 53208A - SUPPORT SUB-ASSY, HOOD LOCK 53209F - BRACE SUB-ASSY, RADIATOR SUPPORT TO CROSS MEMBER, RH 53211D - SUPPORT, RADIATOR 53218A - SUPPORT, RADIATOR, LOWER 53238C - BRACKET, HOOD BUMPER MOUNTING, RH 53239B - BRACKET, HOOD BUMPER MOUNTING, LH 53271E - BRACKET, HEADLAMP MOUNTING, RH 53272C - BRACKET, HEADLAMP MOUNTING, LH 53747A - EXTENSION, APRON FENDER SIDE, RH 53748A - EXTENSION, APRON FENDER SIDE, LH ** Std Part ** Std Part ** Std Part ** Std Part
