TOYOTA PRIUS ZVW30R-AHXEBQ / ELECTRICAL / WIRING CLAMP

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

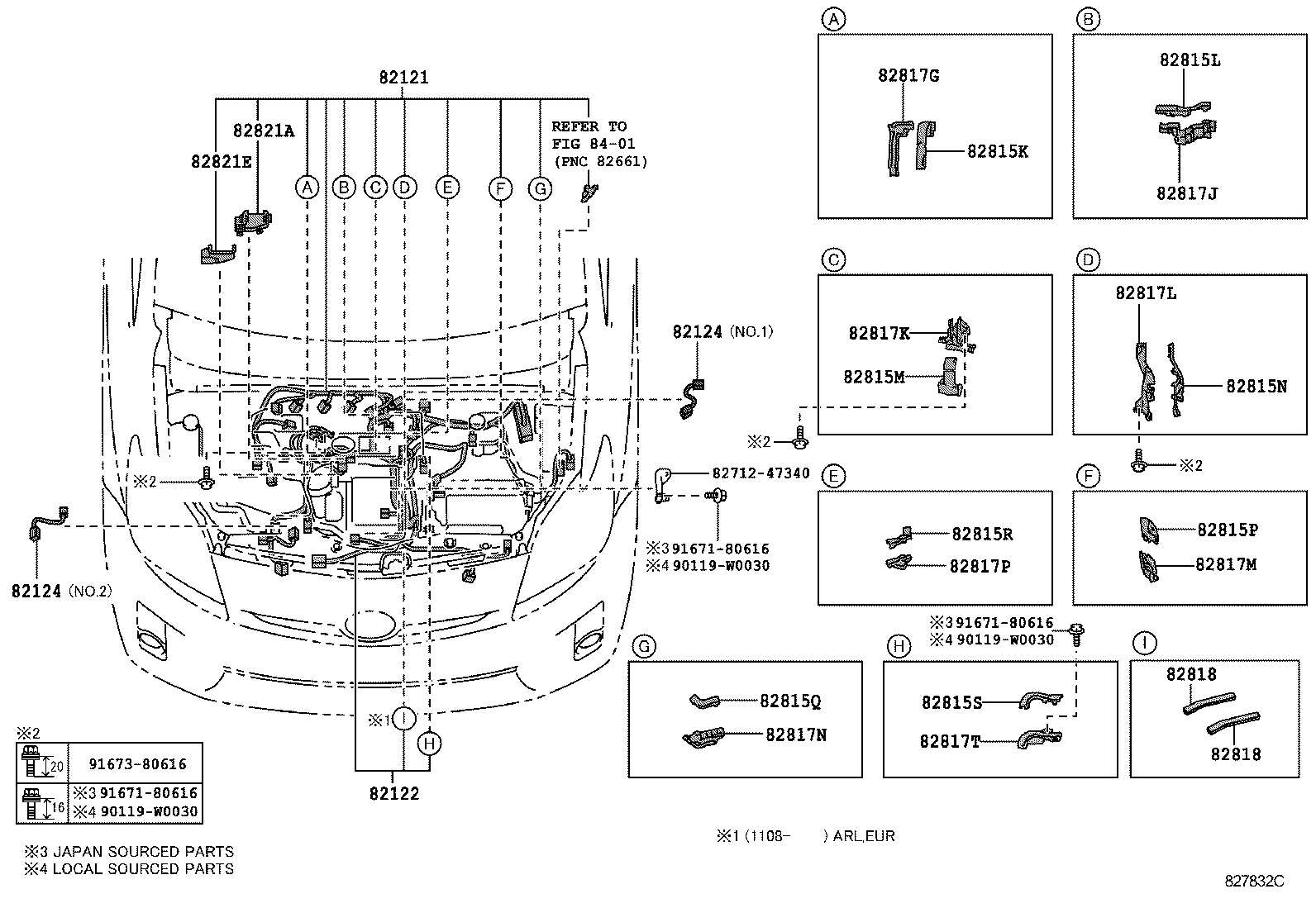

WIRING CLAMP

ENGINE ILLUST NO. 2 OF10(0904- )

PRIUS | WIRING CLAMP 82121 - WIRE, ENGINE 82122 - WIRE, ENGINE, NO.2 82124 - WIRE, ENGINE, NO.4 82124 - WIRE, ENGINE, NO.4 ** Std Part 82815K - COVER, WIRING HARNESS PROTECTOR, NO.8 82815L - COVER, WIRING HARNESS PROTECTOR, NO.9 82815M - COVER, WIRING HARNESS PROTECTOR, NO.10 82815N - COVER, WIRING HARNESS PROTECTOR, NO.11 82815P - COVER, WIRING HARNESS PROTECTOR, NO.12 82815Q - COVER, WIRING HARNESS PROTECTOR, NO.13 82815R - COVER, WIRING HARNESS PROTECTOR, NO.14 82815S - COVER, WIRING HARNESS PROTECTOR, NO.15 82817G - PROTECTOR, WIRING HARNESS, NO.8 82817J - PROTECTOR, WIRING HARNESS, NO.9 82817K - PROTECTOR, WIRING HARNESS, NO.10 82817L - PROTECTOR, WIRING HARNESS, NO.11 82817M - PROTECTOR, WIRING HARNESS, NO.12 82817N - PROTECTOR, WIRING HARNESS, NO.13 82817P - PROTECTOR, WIRING HARNESS, NO.14 82817T - PROTECTOR, WIRING HARNESS, NO.15 82818 - PROTECTOR, WIRING HARNESS, NO.2 82818 - PROTECTOR, WIRING HARNESS, NO.2 82821A - COVER, CONNECTOR 82821E - COVER, CONNECTOR ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
