TOYOTA PRIUS ZVW30R-AHXEBQ / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SWITCH RELAY COMPUTER

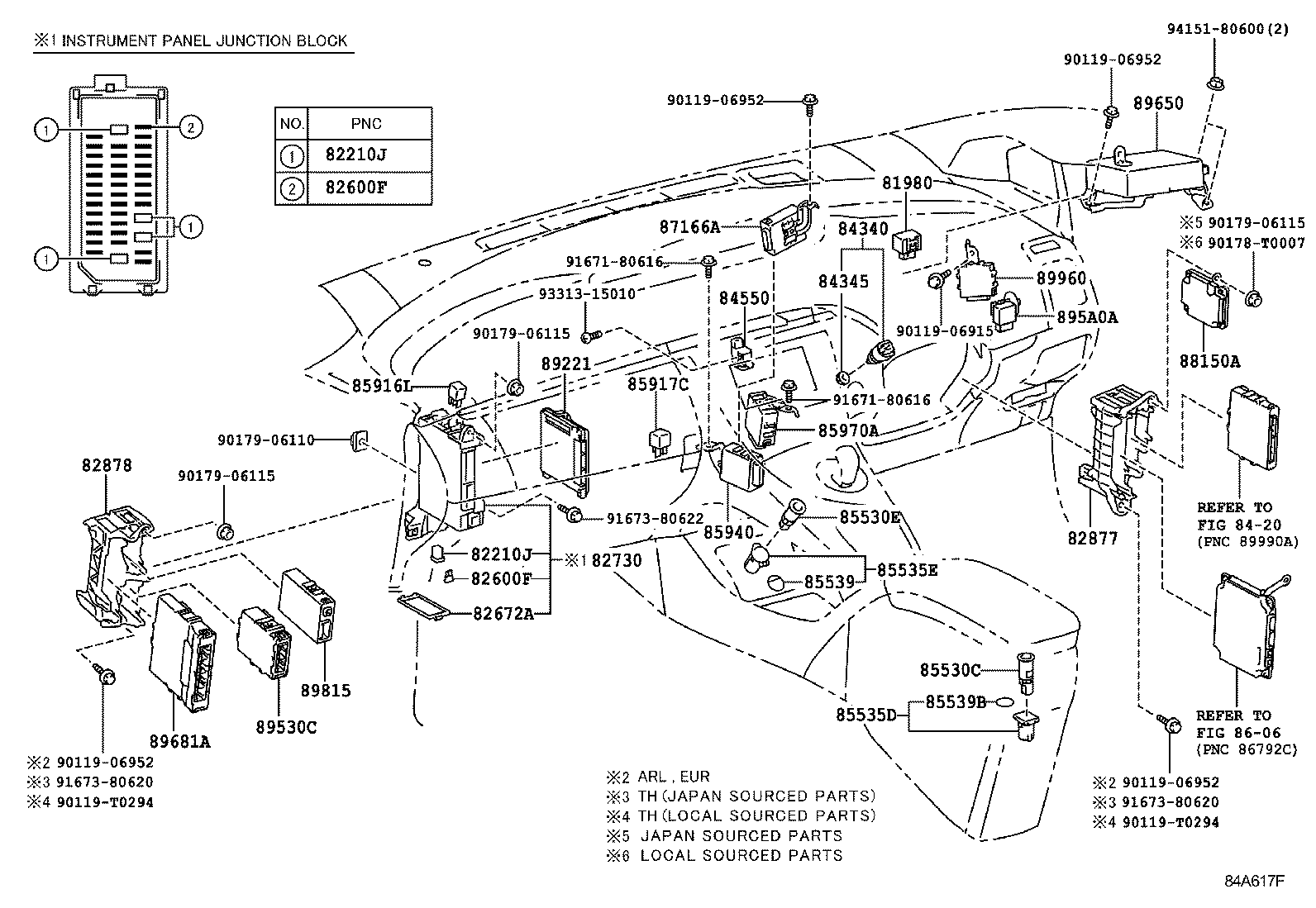

COWL ILLUST NO. 3 OF 6(0904-1112)RHD..ARL,EUR ; (1012-1204)TH

PRIUS | SWITCH RELAY COMPUTER 81980 - FLASHER ASSY, TURN SIGNAL 82210J - FUSIBLE LINK 82210J - FUSIBLE LINK 82600F - FUSE, FUSE BLOCK 82600F - FUSE, FUSE BLOCK 82672A - COVER, JUNCTION BLOCK 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION 82877 - BOX, COMPUTER INTEGRATION, RH 82878 - BOX, COMPUTER INTEGRATION, LH ** Refer Fig 84340 - SWITCH ASSY, STOP LAMP 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING 84550 - SWITCH ASSY, PARKING BRAKE 85530C - SOCKET ASSY, POWER OUTLET, CENTER 85530E - SOCKET ASSY, POWER OUTLET, NO.3 85535D - COVER, POWER OUTLET SOCKET, CENTER 85535E - COVER, POWER OUTLET SOCKET, NO.2 85539 - LABEL, POWER OUTLET NOTICE 85539B - LABEL, POWER OUTLET NOTICE, CENTER 85916L - RELAY, REAR FOG LAMP 85917C - RELAY, SOLAR 85940 - RELAY ASSY, WINDSHIELD WIPER 85970A - RELAY ASSY, DOUBLE LOCK DOOR CONTROL ** Refer Fig 87166A - COMPUTER, SOLAR BATTERY AIRCONDITIONER BLOWER VENT 88150A - COMPUTER ASSY, DRIVING SUPPORT 89221 - COMPUTER, MULTIPLEX NETWORK BODY 89530C - COMPUTER ASSY, TRANSMISSION CONTROL 895A0A - COMPUTER ASSY, STOP LAMP CONTROL 89650 - COMPUTER ASSY, POWER STEERING 89681A - COMPUTER, POWER MANAGEMENT CONTROL 89815 - COMPUTER, SEAT BELT CONTROL 89960 - COMPUTER ASSY, HEADLAMP LEVELING ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
