TOYOTA AVENSIS AZT270R-AEPGK / BODY / INSTRUMENT PANEL GLOVE COMPARTMENT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

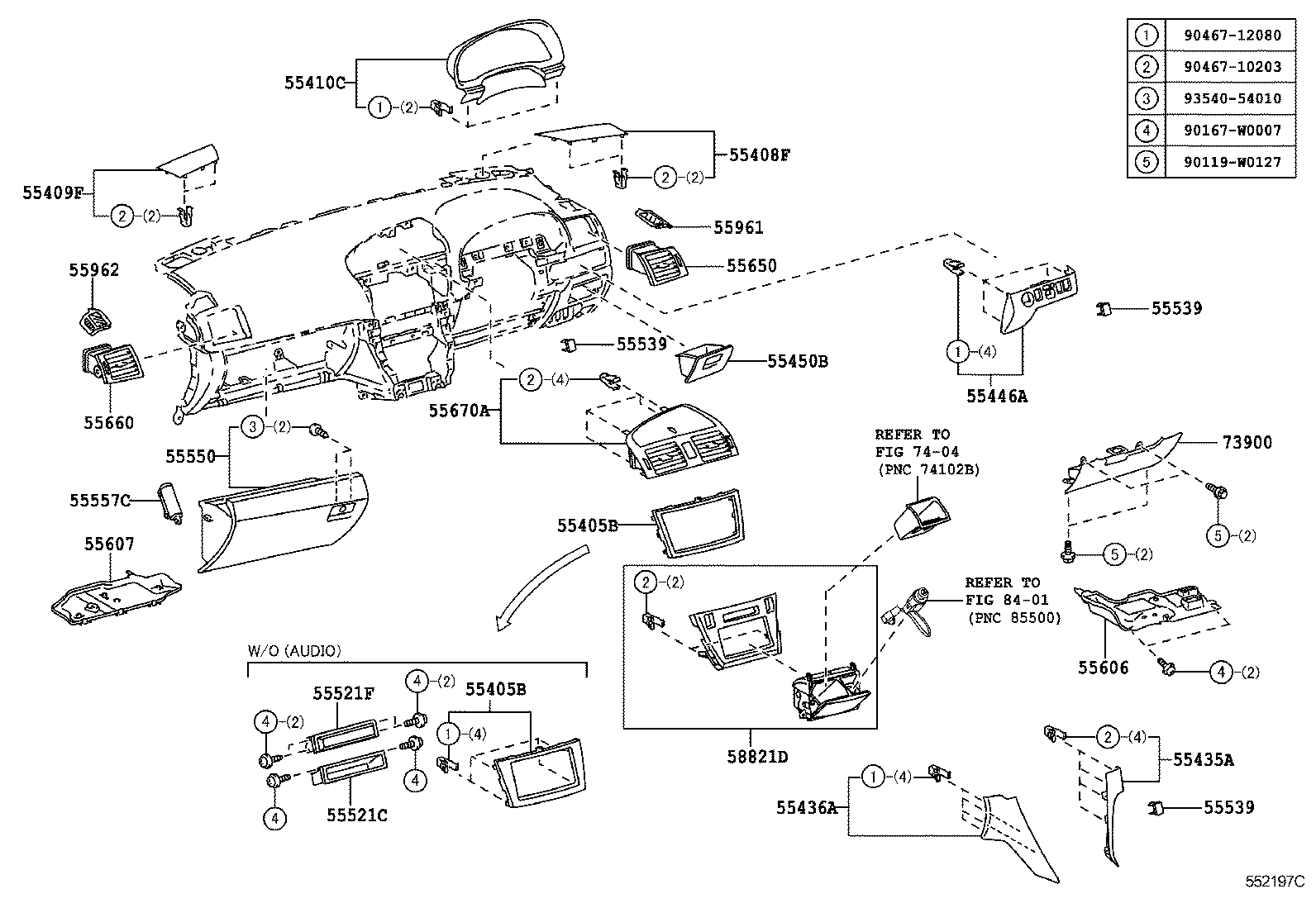

INSTRUMENT PANEL GLOVE COMPARTMENT

ILLUST NO. 2 OF 2(0811-1104)RHD

 AVENSIS |  INSTRUMENT PANEL GLOVE COMPARTMENT 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH 55435A - PANEL, INSTRUMENT PANEL FINISH, END RH 55436A - PANEL, INSTRUMENT PANEL FINISH, END LH 55446A - BASE, SWITCH HOLE, NO.1 55450B - BOX ASSY, COIN 55521C - COVER, STEREO OPENING 55521F - COVER, STEREO OPENING, NO.2 55539 - COVER, SPARE SWITCH HOLE 55539 - COVER, SPARE SWITCH HOLE 55539 - COVER, SPARE SWITCH HOLE 55550 - DOOR ASSY, GLOVE COMPARTMENT 55557C - DAMPER, GLOVE COMPARTMENT DOOR 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER 55961 - NOZZLE, SIDE DEFROSTER, NO.1 55962 - NOZZLE, SIDE DEFROSTER, NO.2 58821D - PANEL, CONSOLE, UPPER FRONT 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
