TOYOTA COASTER CHINA TRB53L-ZEMSK / BODY / SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SEAT SEAT TRACK

REAR SEAT - NO.8(FIXED SEAT) (0701- )

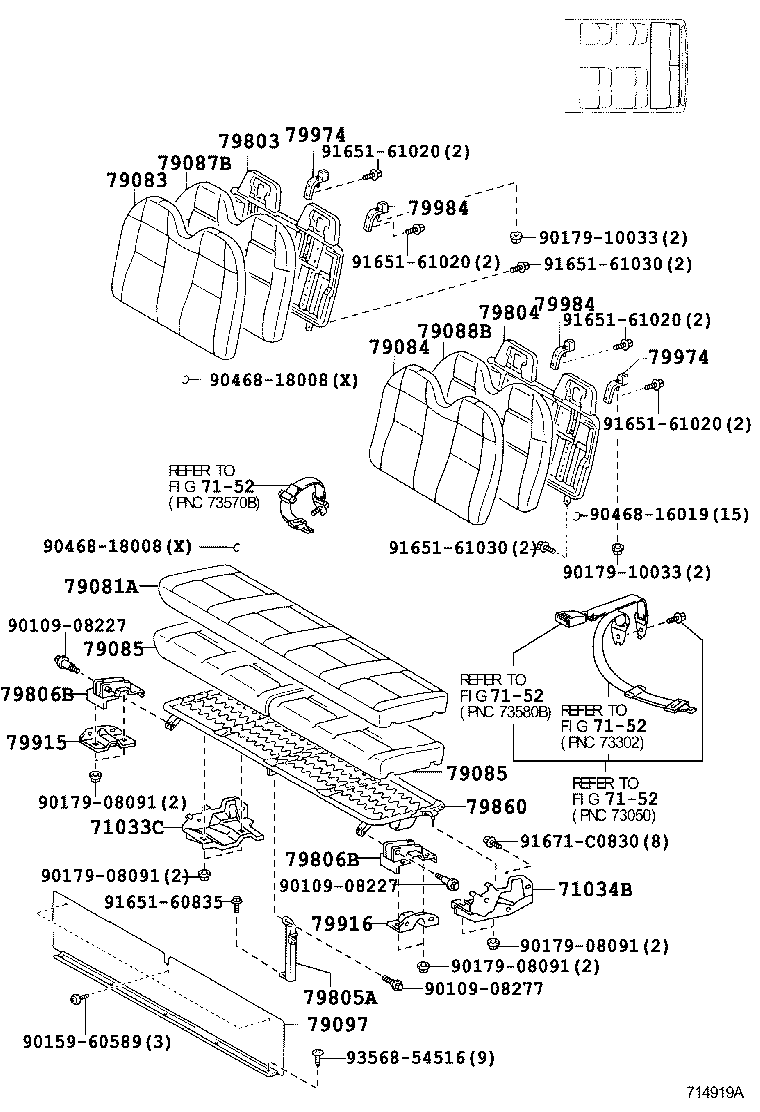

 COASTER CHINA |  SEAT SEAT TRACK 71033C - LEG SUB-ASSY, REAR SIDE SEAT CUSHION, NO.2 RH 71034B - LEG SUB-ASSY, REAR SIDE SEAT CUSHION, NO.2 LH ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 79081A - COVER SUB-ASSY, NO.8 SEAT CUSHION 79083 - COVER SUB-ASSY, NO.8 SEAT BACK, RH 79084 - COVER SUB-ASSY, NO.8 SEAT BACK, LH 79085 - PAD SUB-ASSY, NO.8 SEAT CUSHION 79085 - PAD SUB-ASSY, NO.8 SEAT CUSHION 79087B - PAD SUB-ASSY, NO.8 SEAT BACK, RH 79088B - PAD SUB-ASSY, NO.8 SEAT BACK, LH 79097 - PARTITION SUB-ASSY, LUGGAGE COMPARTMENT WALL 79803 - FRAME SUB-ASSY, NO.8 SEAT BACK, RH 79804 - FRAME SUB-ASSY, NO.8 SEAT BACK, LH 79805A - LEG SUB-ASSY, FOLD SEAT, FRONT 79806B - LEG SUB ASSY, FOLD SEAT REAR 79806B - LEG SUB ASSY, FOLD SEAT REAR 79860 - SPRING ASSY, NO.8 SEAT CUSHION 79915 - BRACKET, SEAT LEG 79916 - BRACKET, SEAT LEG, NO.2 79974 - BRACKET, SEAT BACK ASSIST, RH 79974 - BRACKET, SEAT BACK ASSIST, RH 79984 - BRACKET, SEAT BACK ASSIST, LH 79984 - BRACKET, SEAT BACK ASSIST, LH  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
