TOYOTA LAND CRUISER 200 URJ200L-GNTEKV / TOOL-ENGINE-FUEL / RADIATOR WATER OUTLET

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

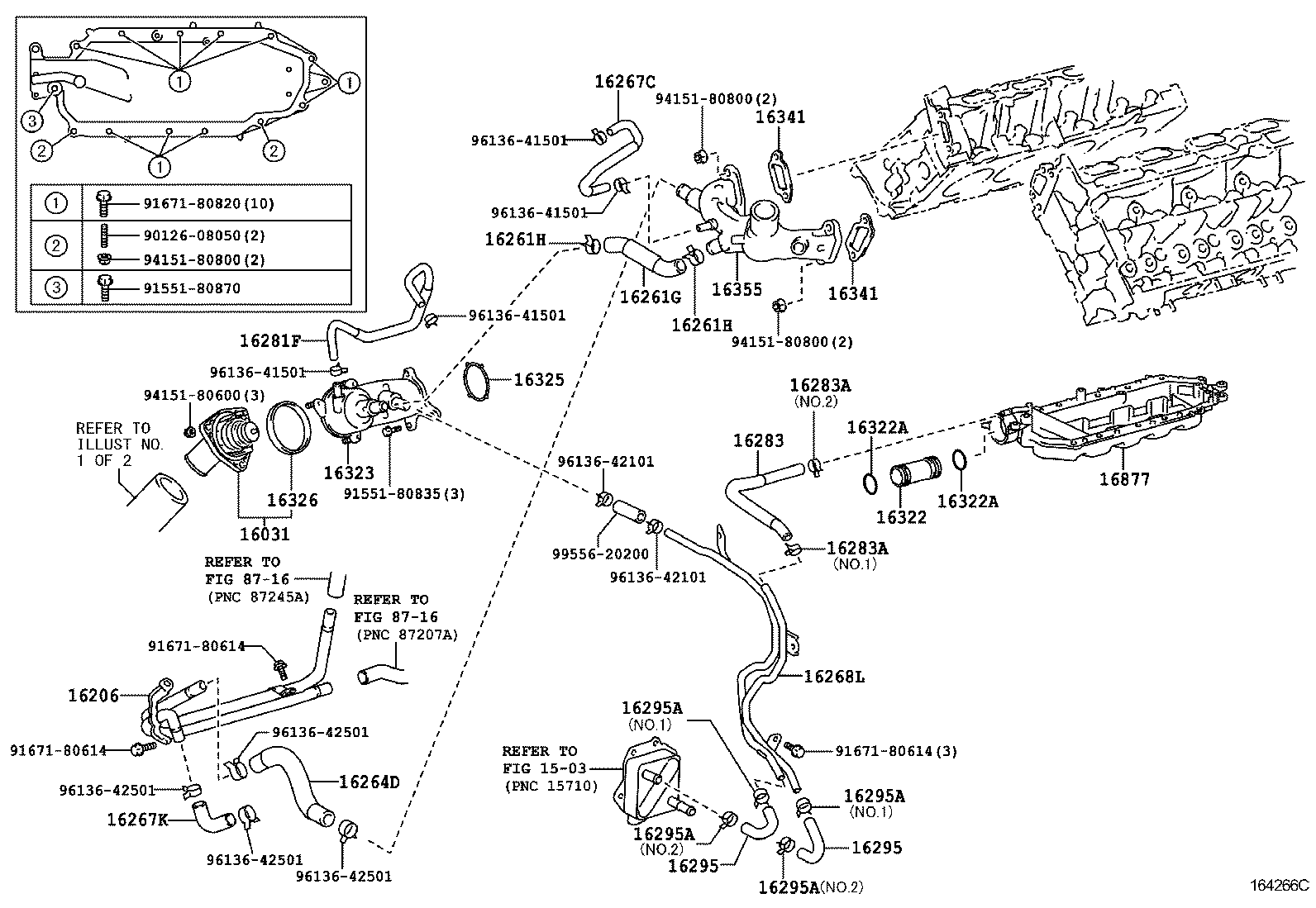

RADIATOR WATER OUTLET

ILLUST NO. 2 OF 2(1007- )3URFE

 LAND CRUISER 200 |  RADIATOR WATER OUTLET ** Refer Fig 16031 - WATER INLET SUB-ASSY, W/THERMOSTAT 16206 - PIPE SUB-ASSY, WATER BY-PASS 16261G - HOSE, WATER BY-PASS, NO.1 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) 16264D - HOSE, WATER BY-PASS, NO.2 16267C - HOSE, WATER BY-PASS, NO.4 16267K - HOSE, WATER BY-PASS, NO.3 16268L - PIPE, WATER BY-PASS 16281F - HOSE, WATER BY-PASS, NO.5 16283 - HOSE, WATER BY-PASS, NO.6 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) 16295 - HOSE, WATER BY-PASS, NO.7 16295 - HOSE, WATER BY-PASS, NO.7 16295A - CLIP(FOR WATER BY-PASS HOSE NO.7) 16295A - CLIP(FOR WATER BY-PASS HOSE NO.7) 16295A - CLIP(FOR WATER BY-PASS HOSE NO.7) 16295A - CLIP(FOR WATER BY-PASS HOSE NO.7) 16322 - PIPE, WATER INLET 16322A - RING, O(FOR WATER INLET) 16322A - RING, O(FOR WATER INLET) 16323 - HOUSING, WATER INLET 16325 - GASKET, WATER INLET HOUSING, NO.1 16326 - GASKET, WATER INLET HOUSING, NO.2 16341 - GASKET, WATER OUTLET 16341 - GASKET, WATER OUTLET 16355 - JOINT, WATER BY-PASS, FRONT 16877 - COVER, HEAT EXCHANGER, NO.1 ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
