TOYOTA PRIUS ZVW30R-AHXEBT / BODY / FRONT SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

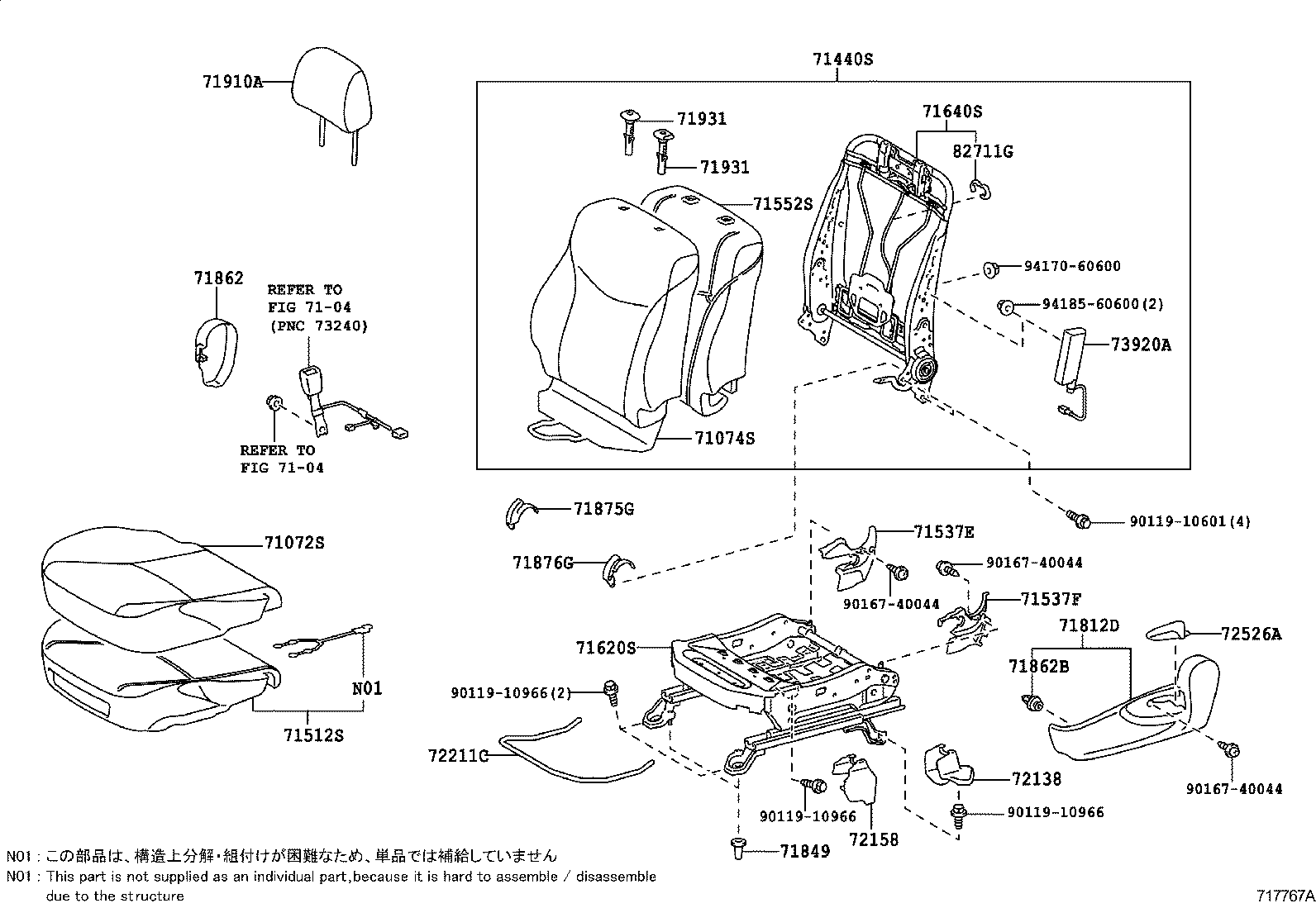

FRONT SEAT SEAT TRACK

LH SEAT ILLUST NO. 2 OF 2(1204- )TH

PRIUS | FRONT SEAT SEAT TRACK ** Refer Fig ** Refer Fig 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) 71537E - PROTECTOR, FRONT SEAT CUSHION, NO.1 71537F - PROTECTOR, FRONT SEAT CUSHION, NO.2 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) 71812D - SHIELD, FRONT SEAT CUSHION, LH 71849 - CAP, SEAT ADJUSTER COVER, LH 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH 71862B - CLIP(FOR FRONT SEAT SHIELD, LH) 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) 71910A - HEADREST ASSY, FRONT SEAT 71931 - SUPPORT, FRONT SEAT HEADREST 71931 - SUPPORT, FRONT SEAT HEADREST 72138 - COVER, SEAT TRACK OUTER, LH 72158 - COVER, SEAT TRACK BRACKET, INNER LH 72211C - HANDLE, SEAT TRACK ADJUSTING 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH 73920A - AIR BAG ASSY, FRONT SEAT, LH 82711G - CLAMP, WIRING HARNESS ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
