TOYOTA YARIS ASIA NCP91L-AHPRKM / BODY / FRONT BUMPER BUMPER STAY

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

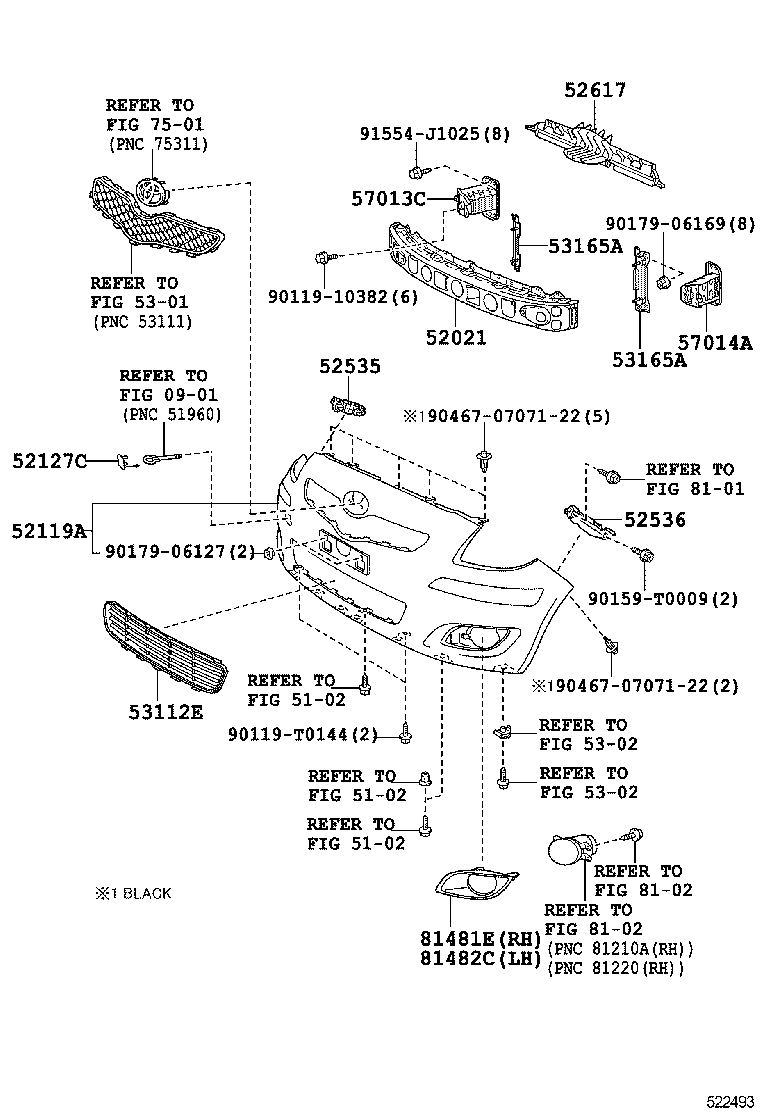

FRONT BUMPER BUMPER STAY

E STANDARD PACKAGE(VIETNAM) (1202- )ATM..PH

YARIS ASIA | FRONT BUMPER BUMPER STAY ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER 52119A - COVER, FRONT BUMPER 52127C - COVER, FRONT BUMPER HOLE 52535 - RETAINER, FRONT BUMPER SIDE, RH 52536 - RETAINER, FRONT BUMPER SIDE, LH 52617 - ABSPRBER, RADIATOR SUPPORT, UPPER ** Refer Fig ** Refer Fig ** Refer Fig 53112E - GRILLE, RADIATOR, LOWER NO.1 53165A - BRACKET, FRONT BUMPER STONE DEFLECTOR, NO.1 53165A - BRACKET, FRONT BUMPER STONE DEFLECTOR, NO.1 57013C - BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH 57014A - BRACKET SUB-ASSY, FRONT SIDE MEMBER, LH ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 81481E - COVER, FOG LAMP, RH 81482C - COVER, FOG LAMP, LH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
