TOYOTA LAND CRUISER 70 VDJ79R-TJMRYQ3 / POWERTRAIN-CHASSIS / BRAKE TUBE CLAMP

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

BRAKE TUBE CLAMP

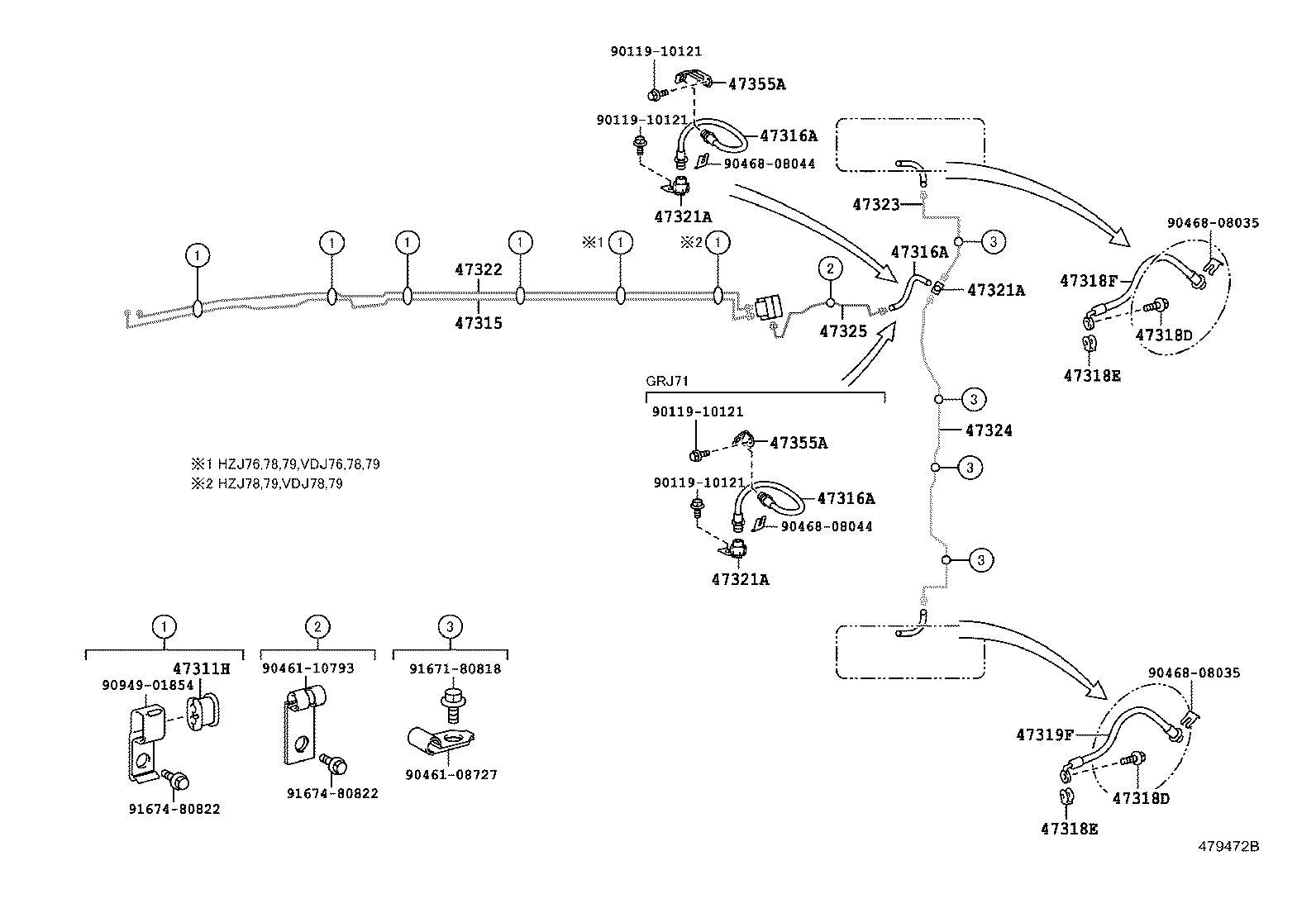

ILLUST NO. 4 OF 6(1208- )HZJ7#,VDJ7#

 LAND CRUISER 70 |  BRAKE TUBE CLAMP 47311H - GROMMET(FOR BRAKE TUBE) 47315 - TUBE, FRONT BRAKE, NO.5 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) 47318E - GASKET(FOR REAR FLEXIBLE HOSE) 47318E - GASKET(FOR REAR FLEXIBLE HOSE) 47318F - HOSE, FLEXIBLE(FOR REAR RH) 47319F - HOSE, FLEXIBLE(FOR REAR LH) 47321A - WAY(FOR REAR BRAKE TUBE) 47321A - WAY(FOR REAR BRAKE TUBE) 47321A - WAY(FOR REAR BRAKE TUBE) 47322 - TUBE, REAR BRAKE, NO.2 47323 - TUBE, REAR BRAKE, NO.3 47324 - TUBE, REAR BRAKE, NO.4 47325 - TUBE, REAR BRAKE, NO.5 47355A - BRACKET, FLEXIBLE HOSE, NO.5 47355A - BRACKET, FLEXIBLE HOSE, NO.5  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
