TOYOTA LAND CRUISER PRADO GRJ150L-GKAEKC / BODY / SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

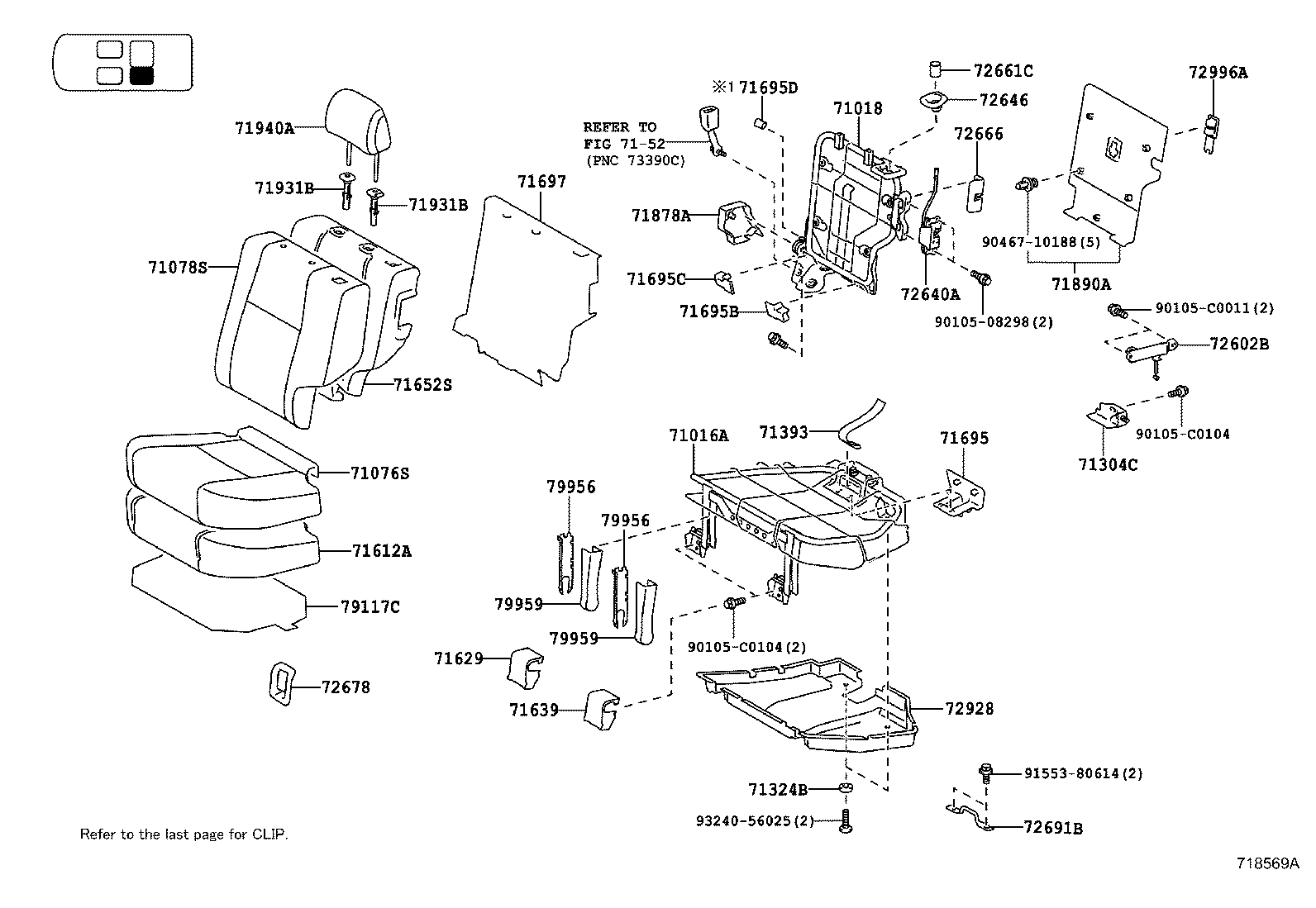

SEAT SEAT TRACK

REAR NO.1 SEAT(LH) FOLD TYPE (1311- )TX

LAND CRUISER PRADO | SEAT SEAT TRACK 71016A - FRAME SUB-ASSY, REAR SEAT CUSHION, LH 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH 71076S - COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE) 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) 71304C - HINGE SUB-ASSY, REAR SEAT BACK, LH 71324B - CUSHION, REAR SEAT 71393 - BAND, REAR SEAT CUSHION ** Refer Fig 71612A - PAD, REAR SEAT CUSHION, LH 71629 - COVER, REAR SEAT CUSHION HINGE 71639 - COVER, REAR SEAT CUSHION HINGE, LH 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) 71695 - PROTECTOR, REAR SEAT BACK 71695B - PROTECTOR, REAR SEAT, NO.1 LH 71695C - PROTECTOR, REAR SEAT, NO.1 71695D - PROTECTOR, SEAT 71697 - PROTECTOR, REAR SEAT BACK EDGE 71878A - COVER, REAR SEAT RECLINING, INNER RH 71890A - CARPET ASSY, REAR SEAT BACK BOARD, LH 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST 71940A - HEADREST ASSY, REAR SEAT 72602B - STRIKER SUB-ASSY, REAR SEAT BACK LOCK, NO.2 LH 72640A - LOCK ASSY, REAR SEAT BACK, LH 72646 - GROMMET, REAR SEAT BACK STOP BUTTON 72661C - BUTTON, REAR SEAT BACK LOCK RELEASE 72666 - COVER, REAR SEAT BACK LOCK, LH 72678 - BASE, REAR SEAT BACK LOCK CONTROL LEVER, LH 72691B - STRIKER, REAR SEAT CUSHION LOCK 72928 - COVER, REAR SEAT CUSHION UNDER, LH 72996A - COVER, REAR SEAT BACK 79117C - COVER, NO.1 SEAT CUSHION, LH 79956 - COVER, REAR SEAT LEG BRACKET 79956 - COVER, REAR SEAT LEG BRACKET 79959 - COVER, RR SEAT LEG 79959 - COVER, RR SEAT LEG ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
