TOYOTA AVALON GSX40L-AETGKV / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL TANK TUBE

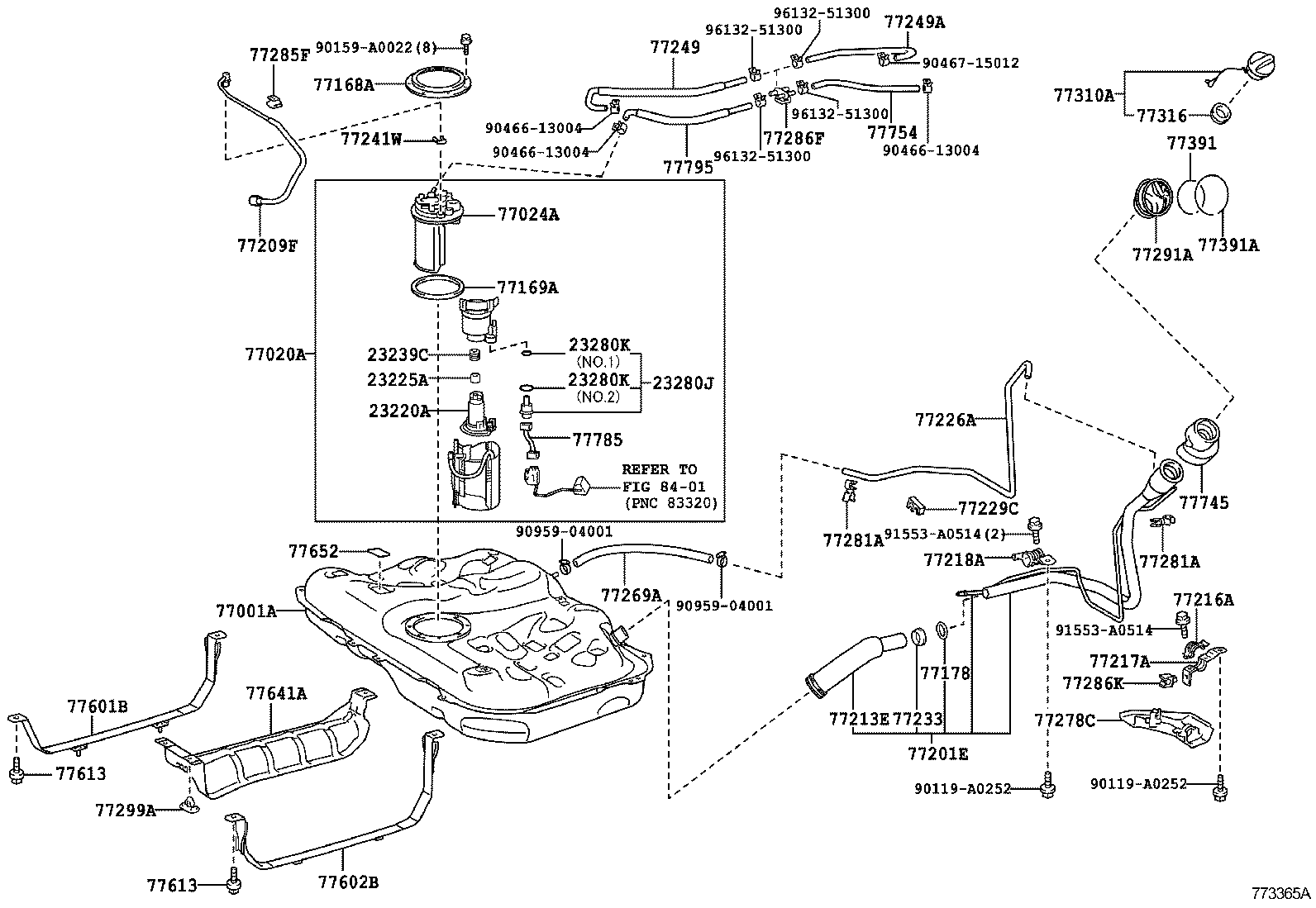

FUEL TANK ILLUST NO. 1 OF 3(1210- )

AVALON | FUEL TANK TUBE 23220A - PUMP ASSY, FUEL W/FILTER 23225A - SPACER, FUEL PUMP 23239C - SEAL, FUEL PUMP FILTER 23280J - REGULATOR ASSY, FUEL PRESSURE 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) 77001A - TANK SUB-ASSY, FUEL 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE 77024A - PLATE SUB-ASSY, FUEL SUCTION 77168A - PLATE, FUEL TANK VENT TUBE SET 77169A - GASKET, FUEL SUCTION TUBE SET 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER 77201E - PIPE SUB-ASSY, FUEL TANK FILLER 77209F - TUBE SUB-ASSY, FUEL TANK MAIN 77213E - HOSE, FUEL TANK TO FILLER PIPE 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 77218A - SUPPORT, FUEL TANK FILLER PIPE, NO.3 77226A - TUBE, FUEL TANK BREATHER, NO.6 77229C - CLAMP, BREATHER TUBE 77233 - JOINT, FUEL HOSE 77241W - CLIP, TUBE JOINT 77249 - HOSE, FUEL EMISSION 77249A - HOSE, FUEL EMISSION 77269A - HOSE, FUEL TANK BREATHER 77278C - PROTECTOR, FUEL TANK FILLER PIPE, NO.2 77281A - CLAMP, FUEL FILLER PIPE 77281A - CLAMP, FUEL FILLER PIPE 77285F - CLAMP, FUEL TUBE, NO.1 77286F - CLAMP, FUEL TUBE, NO.2 77286K - CLAMP, FUEL TUBE, NO.2 77291A - SHIELD, FUEL TANK FILLER PIPE 77299A - CLAMP, FUEL TUBE, NO.5 77310A - CAP ASSY, FUEL TANK 77316 - GASKET, FUEL TANK CAP 77391 - RING, FUEL INLET BOX 77391A - RING, FUEL INLET BOX 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH 77613 - BOLT, FUEL TANK BAND SET 77613 - BOLT, FUEL TANK BAND SET 77641A - PROTECTOR, FUEL TANK, NO.1 77652 - CUSHION, FUEL TANK, NO.1 77745 - FILTER, CHARCOAL CANISTER, NO.1 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 77785 - HARNESS, FUEL PUMP 77795 - HOSE, CHARCOAL CANISTER OUTLET, NO.2 ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
