TOYOTA AVALON GSX40L-AETGKV / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL TANK TUBE

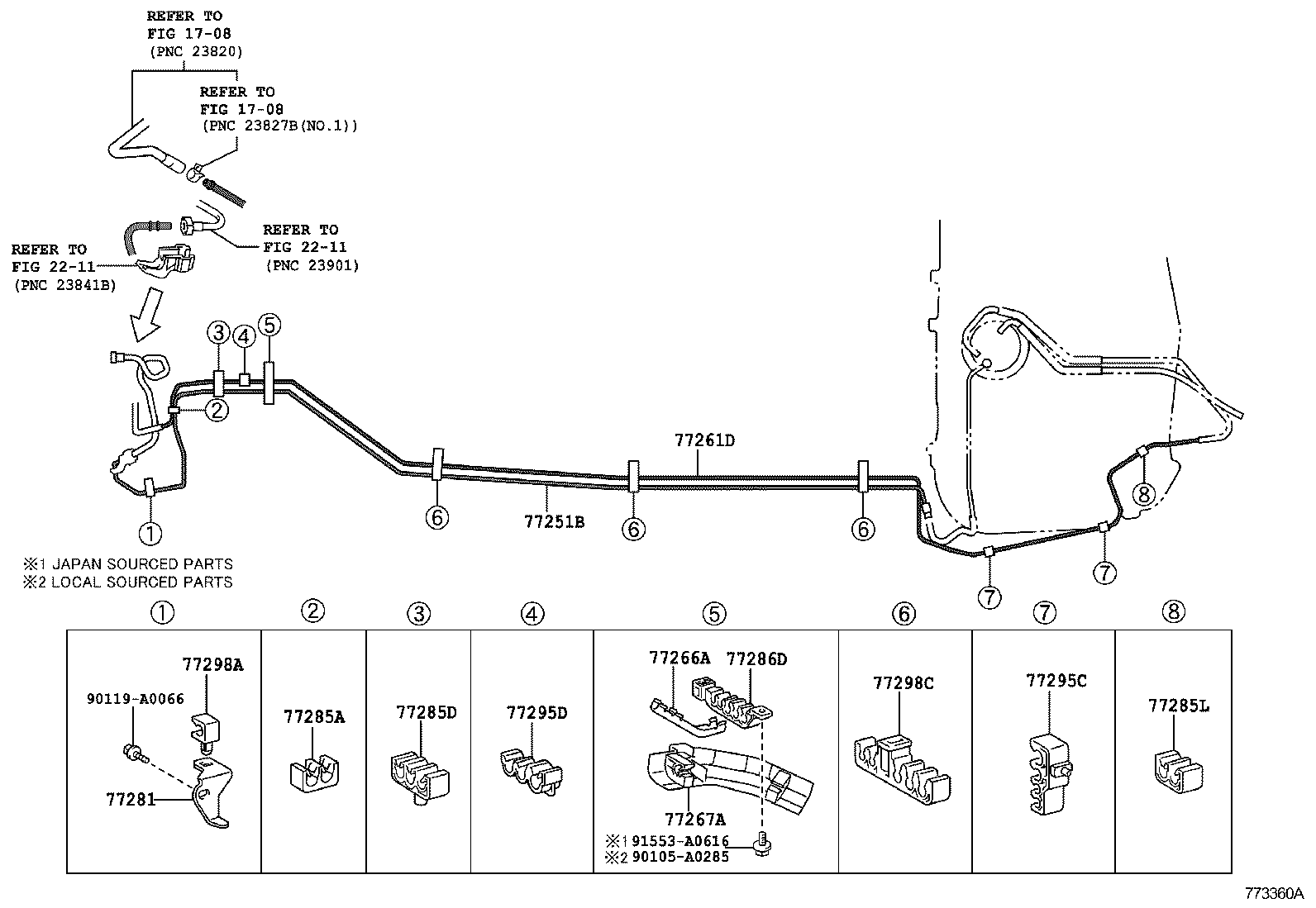

FUEL TUBE ILLUST NO. 2 OF 3(1210- )

AVALON | FUEL TANK TUBE ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 77251B - TUBE, FUEL MAIN 77261D - TUBE, FUEL TANK TO CANISTER 77266A - PROTECTOR, FUEL TUBE, NO.1 77267A - PROTECTOR, FUEL TUBE, NO.2 77281 - BRACKET, FUEL MAIN TUBE, NO.1 77285A - SUPPORT, FUEL RETURN AND MAIN TUBE 77285D - CLAMP, FUEL TUBE, NO.1 77285L - CLAMP, FUEL TUBE, NO.1 77286D - CLAMP, FUEL TUBE, NO.2 77295C - GROMMET, FUEL TUBE 77295D - GROMMET, FUEL TUBE 77298A - CLAMP, FUEL TUBE, NO.4 77298C - CLAMP, FUEL TUBE, NO.4 ** Std Part ** Std Part ** Std Part
