TOYOTA AVANZA F651RM-GMDFM / BODY / SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SEAT SEAT TRACK

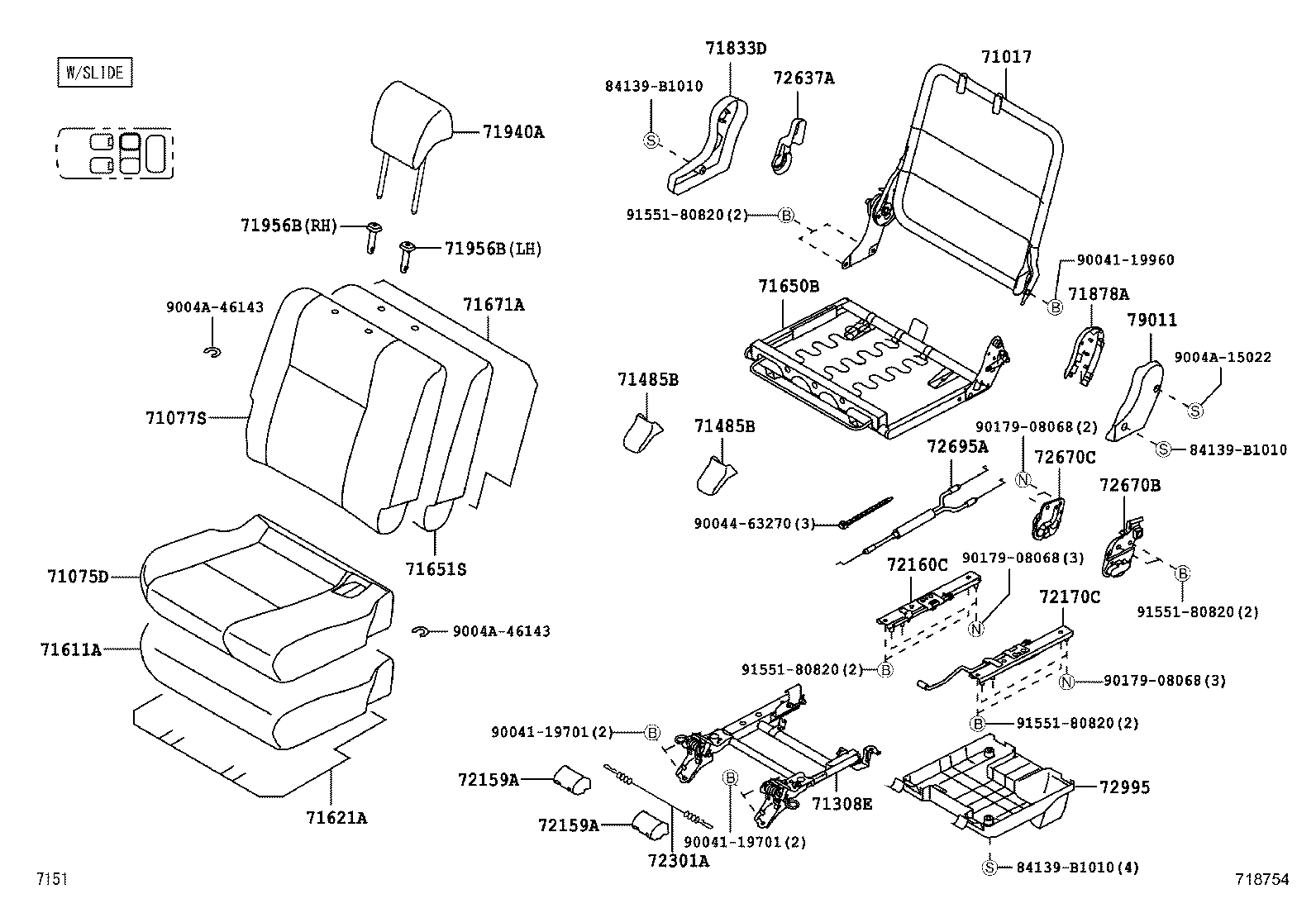

RR NO.1 SEAT (RH) ILLUST NO. 2 OF 2(1312- )MA

AVANZA | SEAT SEAT TRACK 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH 71075D - COVER SUB-ASSY, REAR SEAT CUSHION, RH 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) 71308E - LEG SUB-ASSY, REAR SEAT, RH 71485B - COVER, REAR SEAT HINGE 71485B - COVER, REAR SEAT HINGE 71611A - PAD, REAR SEAT CUSHION, RH 71621A - PAD, REAR SEAT CUSHION SILENCER, A 71650B - SPRING ASSY, REAR SEAT CUSHION, RH 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) 71671A - PAD, REAR SEAT BACK SILENCER, A 71833D - COVER REAR SEAT RECLINING, RH 71878A - COVER, REAR SEAT RECLINING, INNER RH 71940A - HEADREST ASSY, REAR SEAT 71956B - SUPPORT, REAR SEAT HEADREST 71956B - SUPPORT, REAR SEAT HEADREST 72159A - COVER, REAR SEAT TRACK BRACKET 72159A - COVER, REAR SEAT TRACK BRACKET 72160C - TRACK ASSY, REAR NO.1 SEAT, OUTER RH 72170C - TRACK ASSY, REAR NO.1 SEAT, INNER RH 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH 72637A - HANDLE, REAR SEAT LOCK 72670B - LOCK ASSY, REAR SEAT CUSHION, RH 72670C - LOCK ASSY, REAR SEAT CUSHION, NO.2 RH 72695A - CABLE, REAR SEAT LOCK CONTROL 72995 - COVER, REAR SEAT CUSHION, RH 79011 - COVER SUB-ASSY, NO.1 SEAT CUSHION, RH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
