TOYOTA CAMRY HYBRID CHINA AVV50L-JEXVBC / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SWITCH RELAY COMPUTER

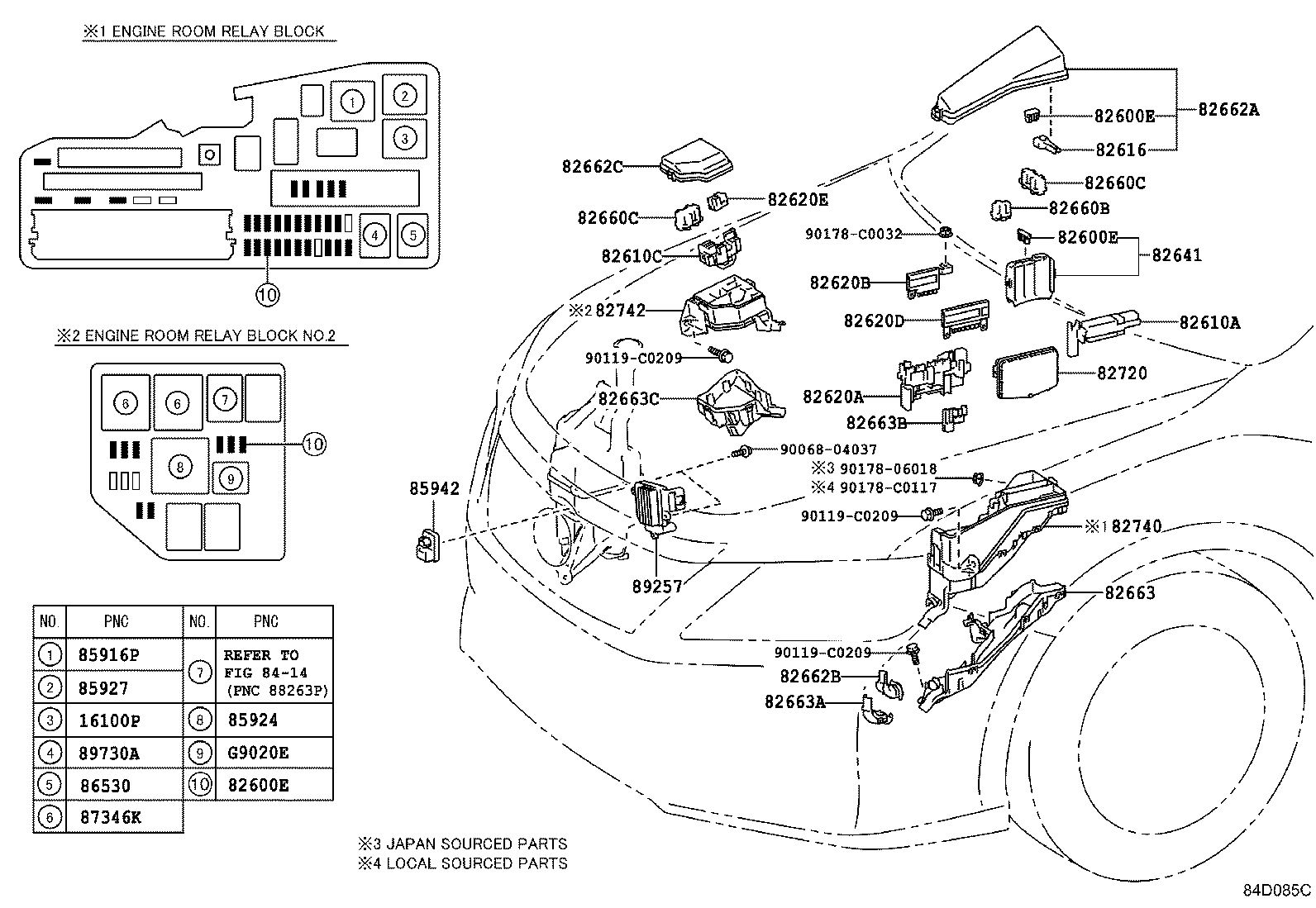

ENGINE ROOM ILLUST NO. 2 OF 7(1205- )AVV50

CAMRY HYBRID CHINA | SWITCH RELAY COMPUTER 16100P - RELAY, WATER PUMP 82600E - ENGINE ROOM FUSE 82600E - ENGINE ROOM FUSE 82600E - ENGINE ROOM FUSE 82610A - BLOCK ASSY, FUSE 82610C - BLOCK ASSY, FUSE 82616 - PULLER, FUSE 82620A - BLOCK ASSY, FUSIBLE LINK 82620B - BLOCK ASSY, FUSIBLE LINK 82620D - BLOCK ASSY, FUSIBLE LINK 82620E - BLOCK ASSY, FUSIBLE LINK 82641 - RELAY, INTEGRATION NO.1 82660B - BLOCK ASSY, RELAY 82660C - BLOCK ASSY, RELAY 82660C - BLOCK ASSY, RELAY 82662A - COVER, RELAY BLOCK, UPPER, NO.1 82662B - COVER, RELAY BLOCK, UPPER, NO.2 82662C - COVER, RELAY BLOCK, UPPER, NO.3 82663 - COVER, RELAY BLOCK, LOWER 82663A - COVER, RELAY BLOCK, LOWER, NO.2 82663B - COVER, RELAY BLOCK, LOWER, NO.3 82663C - COVER, RELAY BLOCK LOWER, NO.4 82720 - BLOCK ASSY, ENGINE ROOM JUNCTION 82740 - BLOCK ASSY, ENGINE ROOM RELAY 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 ** Refer Fig 85916P - RELAY, HEADLAMP 85924 - RELAY, IGNITION CONTROL 85927 - RELAY, COOLING FAN 85942 - RELAY, HEADLAMP CLEANER CONTROL 86530 - RELAY ASSY, HORN 87346K - RELAY, PTC HEATER 89257 - COMPUTER, COOLING FAN 89730A - RELAY(FOR SECURITY WARNING) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part G9020E - RELAY, HYBRID WATER PUMP
