TOYOTA DYNA WU710R-TKMQJ3 / BODY / FRAME

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

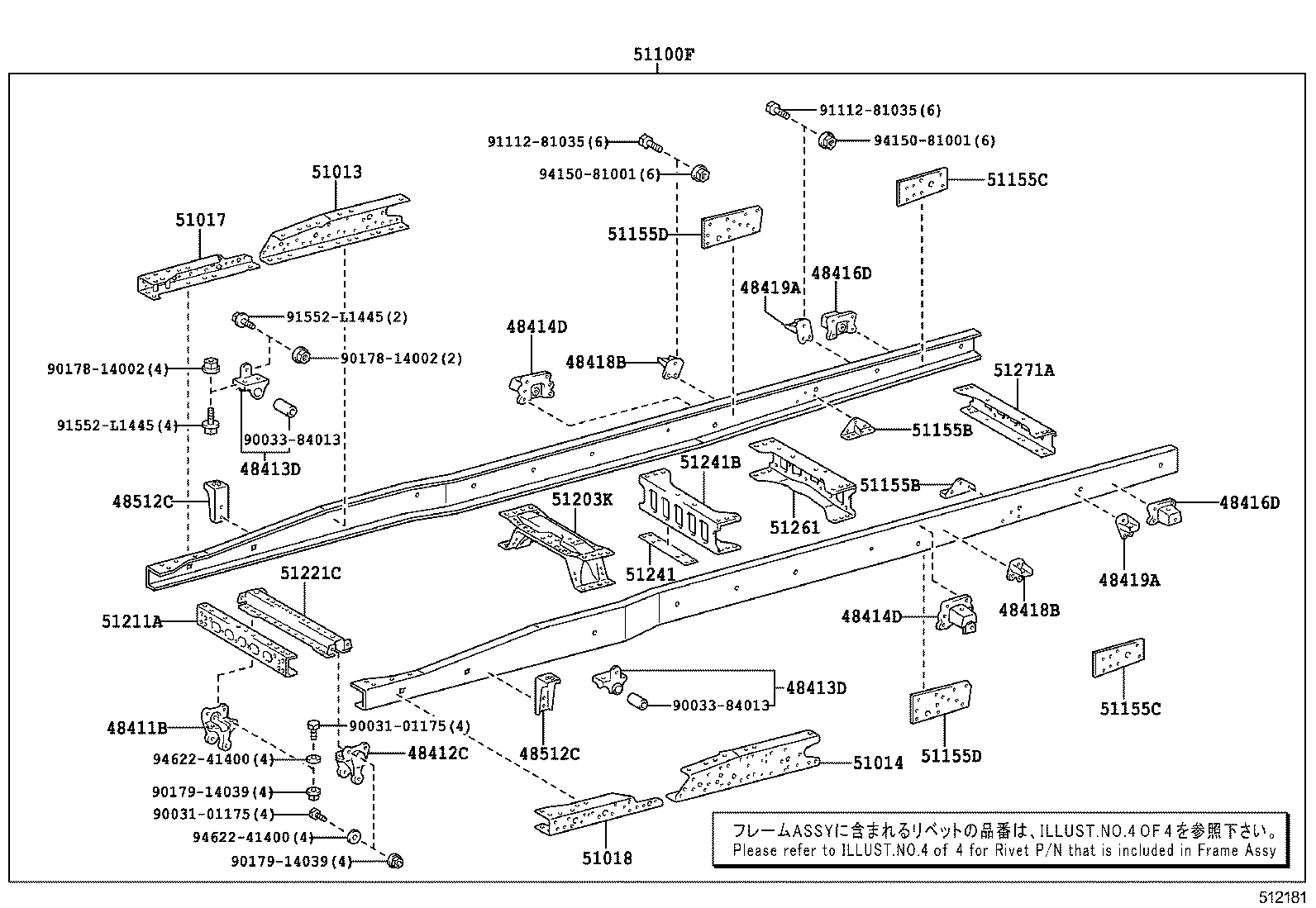

FRAME

REAR OVERHANG ILLUST NO. 1 OF 6(1107- )WU710..5F..IV3 ; (1108- )XZU710..G

DYNA | FRAME 48411B - BRACKET, SPRING, NO.1 RH 48412C - BRACKET, SPRING, NO.1 LH 48413D - BRACKET, SPRING, NO.2 48413D - BRACKET, SPRING, NO.2 48414D - BRACKET, SPRING, NO.3 48414D - BRACKET, SPRING, NO.3 48416D - BRACKET, SPRING, NO.4 48416D - BRACKET, SPRING, NO.4 48418B - BRACKET, SPRING, NO.6 48418B - BRACKET, SPRING, NO.6 48419A - BRACKET, SPRING, NO.7 48419A - BRACKET, SPRING, NO.7 48512C - BRACKET, FRONT SHOCK ABSORBER, UPPER 48512C - BRACKET, FRONT SHOCK ABSORBER, UPPER 51013 - CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT RH 51014 - CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT LH 51017 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 RH 51018 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 LH 51100F - FRAME SUB-ASSY 51155B - STIFFENER, FRAME SIDE RAIL, REAR NO.2 51155B - STIFFENER, FRAME SIDE RAIL, REAR NO.2 51155C - STIFFENER, FRAME SIDE RAIL, REAR NO.3 51155C - STIFFENER, FRAME SIDE RAIL, REAR NO.3 51155D - STIFFENER, FRAME SIDE RAIL, REAR NO.1 51155D - STIFFENER, FRAME SIDE RAIL, REAR NO.1 51203K - CROSSMEMBER SUB-ASSY, FRAME, NO.3 51211A - CROSSMEMBER, FRAME, FRONT 51221C - CROSSMEMBER, FRAME, NO.2 51241 - BRACKET, CENTER BEARING SUPPORT 51241B - CROSSMEMBER, FRAME, NO.4 51261 - CROSSMEMBER, FRAME, NO.6 51271A - CROSSMEMBER, FRAME, NO.7 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
