TOYOTA DYNA WU710R-TKMQJ3 / BODY / INSTRUMENT PANEL GLOVE COMPARTMENT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

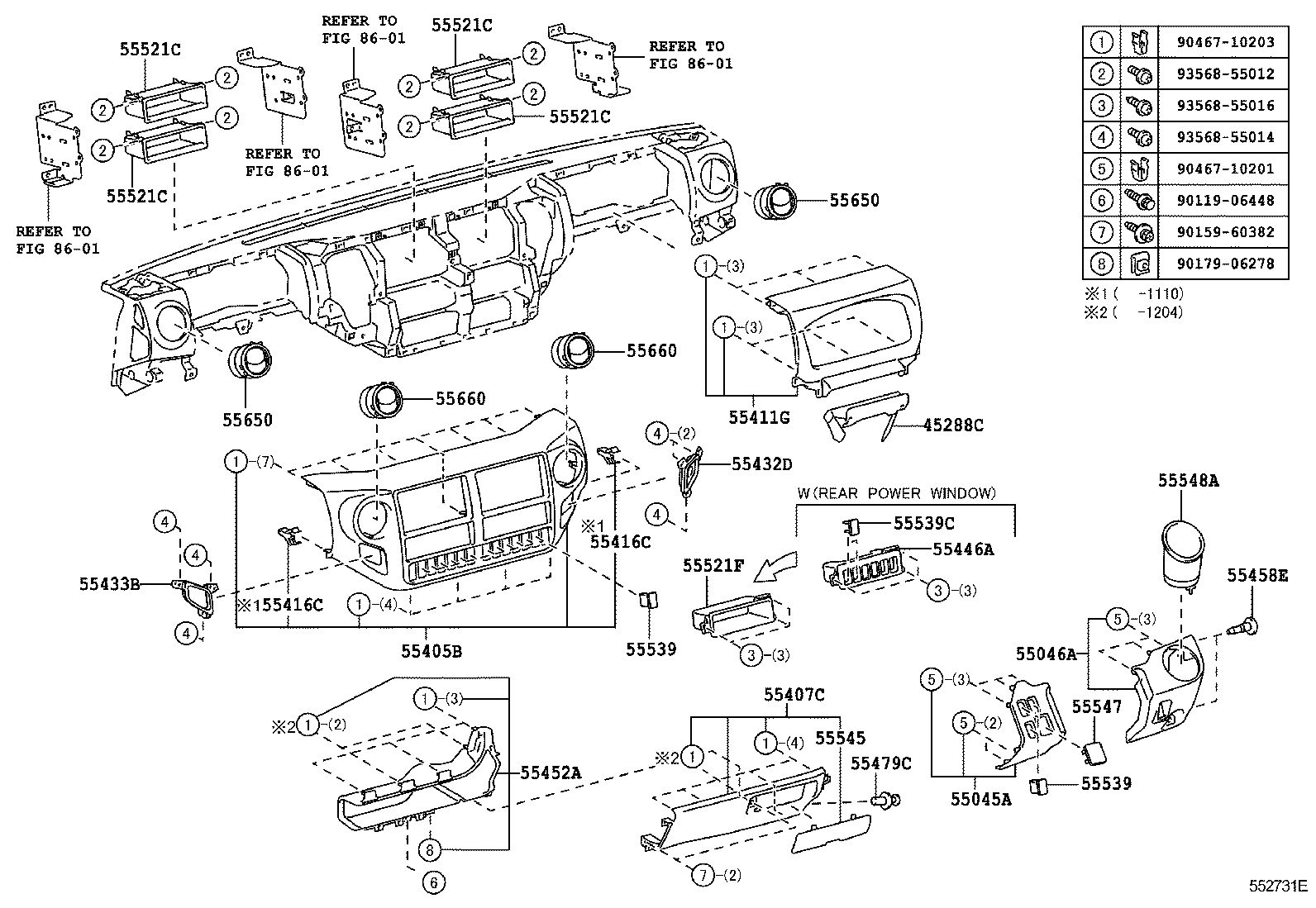

INSTRUMENT PANEL GLOVE COMPARTMENT

ILLUST NO. 2 OF 3(1107- )RHD

DYNA | INSTRUMENT PANEL GLOVE COMPARTMENT 45288C - PLATE, STEERING COLUMN COVER 55045A - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER RH 55046A - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER LH 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER 55407C - COVER SUB-ASSY, INSTRUMENT, LOWER 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 55416C - RETAINER, INSTRUMENT CLUSTER FINISH PANEL 55416C - RETAINER, INSTRUMENT CLUSTER FINISH PANEL 55432D - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.1 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 55446A - BASE, SWITCH HOLE, NO.1 55452A - BOX, INSTRUMENT PANEL, NO.2 55458E - CLIP(FOR INSTRUMENT LOWER COVER) 55479C - CLIP(FOR INSTRUMENT LOWER COVER) 55521C - COVER, STEREO OPENING 55521C - COVER, STEREO OPENING 55521C - COVER, STEREO OPENING 55521C - COVER, STEREO OPENING 55521F - COVER, STEREO OPENING, NO.2 55539 - COVER, SPARE SWITCH HOLE 55539 - COVER, SPARE SWITCH HOLE 55539C - COVER, SPARE SWITCH HOLE 55545 - COVER, FUSE BOX OPENING 55547 - COVER, REMOTE CONTROL MIRROR HOLE 55548A - COVER, INSTRUMENT PANEL HOLE 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
