TOYOTA DYNA WU710R-TKMRJ3 / ELECTRICAL / HEATING AIR CONDITIONING CONTROL AIR DUCT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING CONTROL AIR DUCT

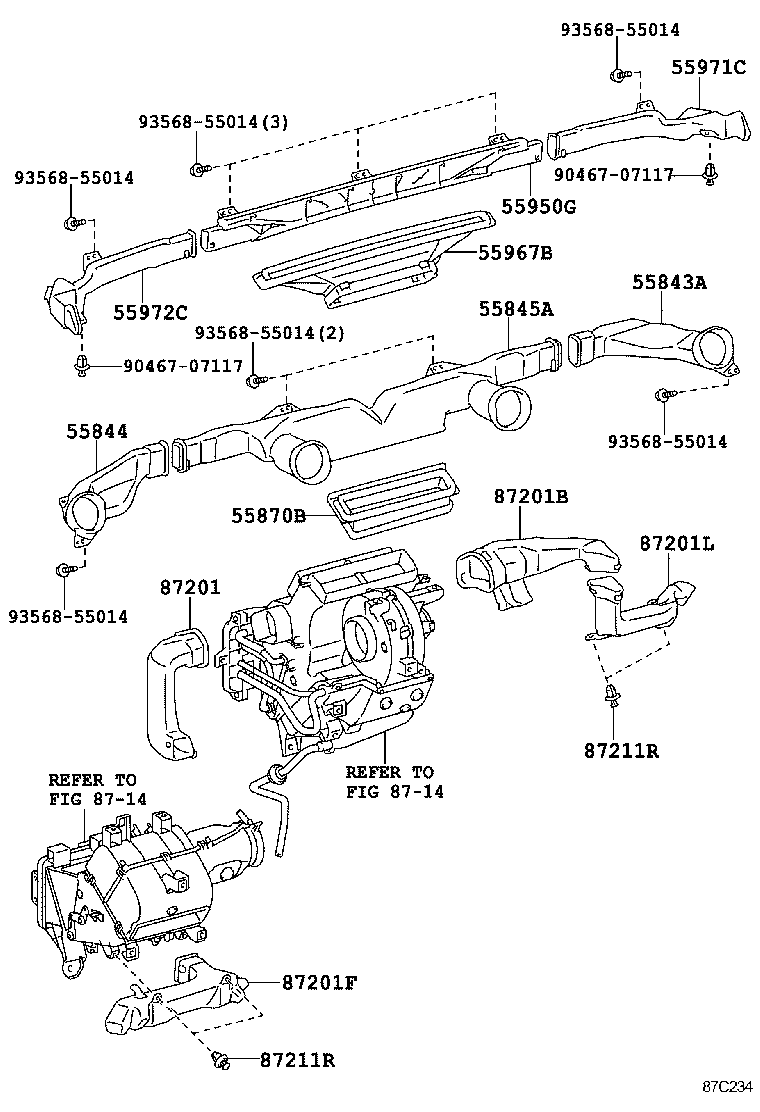

FRONT AIR DUCT---HEATER ILLUST NO. 2 OF 3(1107- )RHD

DYNA | HEATING AIR CONDITIONING CONTROL AIR DUCT 55843A - DUCT, HEATER TO REGISTER, NO.1 55844 - DUCT, HEATER TO REGISTER, NO.2 55845A - DUCT, HEATER TO REGISTER, NO.3 55870B - DUCT ASSY, HEATER TO REGISTER 55950G - NOZZLE ASSY, DEFROSTER 55967B - NOZZLE, DEFROSTER, LOWER 55971C - DUCT, SIDE DEFROSTER NOZZLE, NO.1 55972C - DUCT, SIDE DEFROSTER NOZZLE, NO.2 ** Refer Fig ** Refer Fig 87201 - DUCT SUB-ASSY, AIR, NO.1 87201B - DUCT SUB-ASSY, AIR, NO.2 87201F - DUCT SUB-ASSY, AIR, NO.3 87201L - DUCT SUB-ASSY, AIR, NO.4 87211R - CLIP, AIR DUCT 87211R - CLIP, AIR DUCT ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
