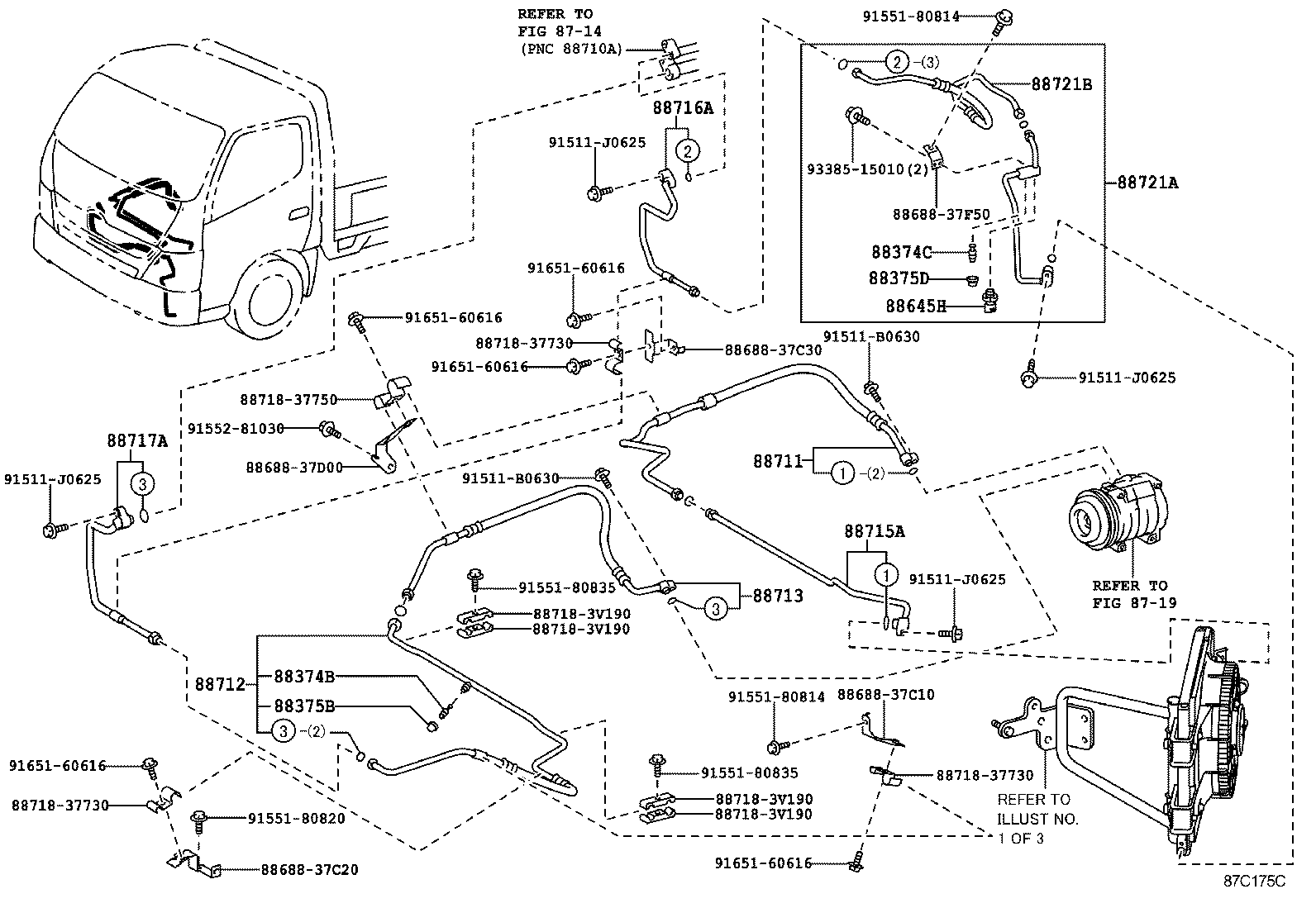

HEATING AIR CONDITIONING COOLER PIPING

PIPING ILLUST NO. 2 OF 3(1107- )RHD

DYNA | HEATING AIR CONDITIONING COOLER PIPING ** Refer Fig ** Refer Fig 88374B - VALVE, SERVICE, NO.1 88374C - VALVE, SERVICE, NO.2 88375B - CAP, SERVICE VALVE, NO.1 88375D - CAP, SERVICE VALVE, NO.2 88645H - SWITCH, PRESSURE NO.1 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 88713 - HOSE, COOLER REFRIGERANT SUCTION, NO.2 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A 88716A - PIPE, COOLER REFRIGERANT LIQUID, A 88717A - PIPE, COOLER REFRIGERANT SUCTION, A ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part 88721A - HOSE, LIQUID, A 88721B - HOSE, LIQUID, B ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
