TOYOTA FJ CRUISER GSJ15L-GKFSKV / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL TANK TUBE

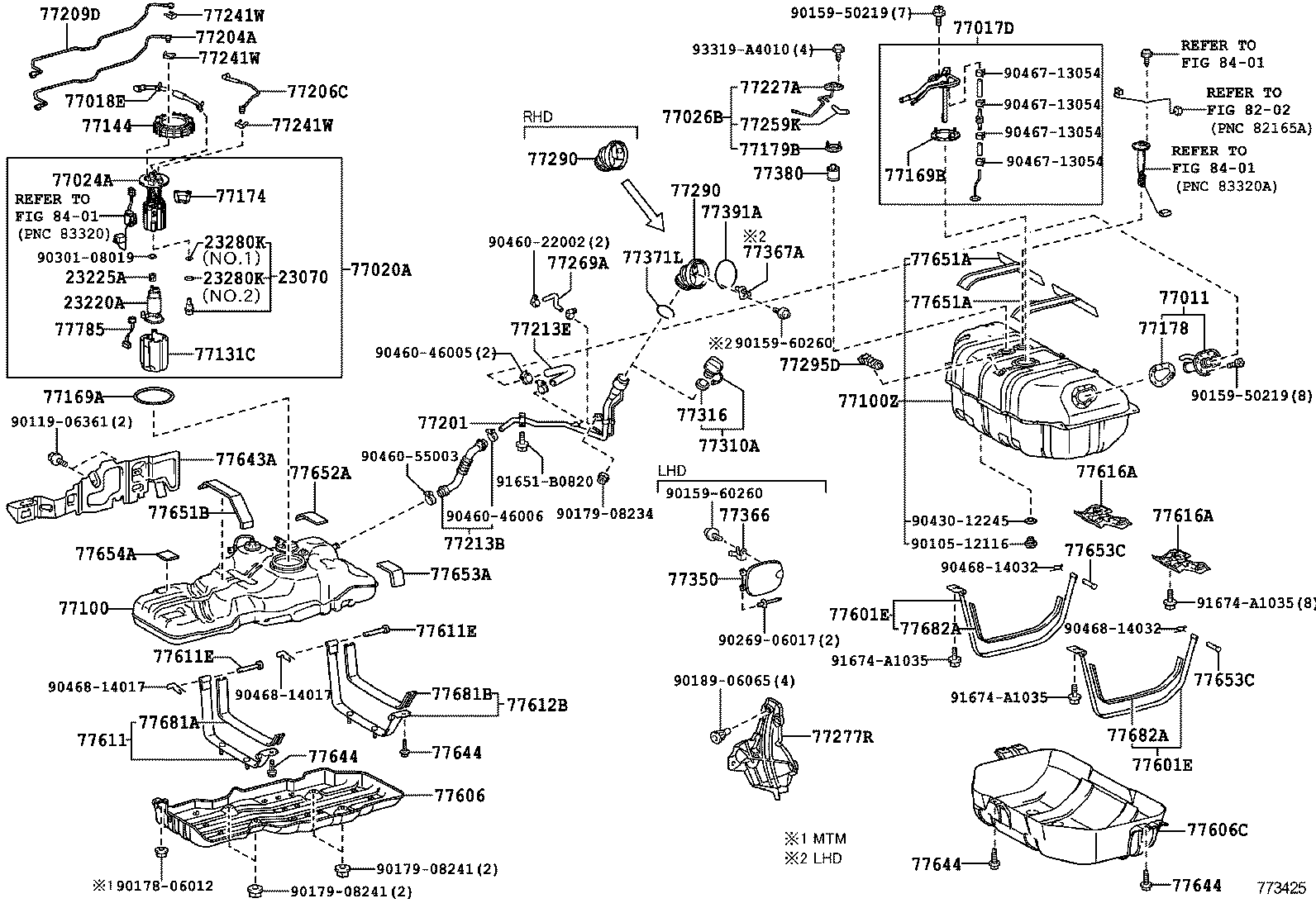

FUEL TANK,W(SUB TANK) ILLUST NO. 1 OF 2(1211- )GCC

FJ CRUISER | FUEL TANK TUBE 23070 - VALVE ASSY, FUEL MAIN 23220A - PUMP ASSY, FUEL W/FILTER 23225A - SPACER, FUEL PUMP 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER 77017D - TUBE SUB-ASSY, FUEL TANK VENT 77018E - TUBE SUB-ASSY, FUEL TANK EVAPORATION VENT 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE 77024A - PLATE SUB-ASSY, FUEL SUCTION 77026B - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 77100 - TANK ASSY, FUEL 77100Z - TANK SUB-ASSY, FUEL SUB 77131C - SUB-TANK, FUEL, NO.1 77144 - RETAINER, FUEL PUMP GAUGE 77169A - GASKET, FUEL SUCTION TUBE SET 77169B - GASKET, FUEL SUCTION TUBE SET, NO.1 77174 - SUPPORT, FUEL SUCTION, NO.1 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER 77179B - GASKET, FUEL TANK EVAPORATION VENT TUBE 77201 - PIPE SUB-ASSY, FUEL TANK INLET 77204A - TUBE, FUEL TANK RETURN 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 77209D - TUBE SUB-ASSY, FUEL TANK MAIN 77213B - HOSE, FUEL TANK TO FILLER PIPE 77213E - HOSE, FUEL TANK TO FILLER PIPE 77227A - TUBE, FUEL TANK EVAPORATION VENT 77241W - CLIP, TUBE JOINT 77241W - CLIP, TUBE JOINT 77241W - CLIP, TUBE JOINT 77259K - HOSE, FUEL 77269A - HOSE, FUEL TANK BREATHER 77277R - PROTECTOR, FUEL TANK FILLER PIPE 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE 77295D - GROMMET, FUEL TUBE 77310A - CAP ASSY, FUEL TANK 77316 - GASKET, FUEL TANK CAP 77350 - LID ASSY, FUEL FILLER OPENING 77366 - SPRING, FUEL FILLER OPENING LID HINGE 77367A - CLAMP, FUEL FILLER LID PIN, NO.1 77371L - RING, FUEL TANK FILLER PIPE SHIELD 77380 - VALVE ASSY, FUEL CUT OFF 77391A - RING, FUEL INLET BOX 77601E - BAND SUB-ASSY, FUEL TANK 77601E - BAND SUB-ASSY, FUEL TANK 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 77606C - PROTECTOR, FUEL TANK, NO.2 77611 - BAND, FUEL TANK 77611E - PIN, FUEL TANK BAND 77611E - PIN, FUEL TANK BAND 77612B - BAND, FUEL TANK, NO.2 77616A - BRACKET, FUEL TANK BAND, NO.4 77616A - BRACKET, FUEL TANK BAND, NO.4 77643A - PROTECTOR, FUEL TANK, NO.3 77644 - BOLT, FUEL TANK 77644 - BOLT, FUEL TANK 77644 - BOLT, FUEL TANK 77644 - BOLT, FUEL TANK 77651A - CUSHION, FUEL TANK, NO.1 77651A - CUSHION, FUEL TANK, NO.1 77651B - CUSHION, FUEL TANK 77652A - CUSHION, FUEL TANK, NO.2 77653A - CUSHION, FUEL TANK, NO.3 77653C - PIN, FUEL TANK BAND, NO.1 77653C - PIN, FUEL TANK BAND, NO.1 77654A - CUSHION, FUEL TANK, NO.4 77681A - SEAT, FUEL TANK BAND 77681B - SEAT, FUEL TANK BAND 77682A - SEAT, FUEL TANK BAND, NO.2 77682A - SEAT, FUEL TANK BAND, NO.2 77785 - HARNESS, FUEL PUMP ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
