TOYOTA FORTUNER KUN60L-EKPSH / POWERTRAIN-CHASSIS / BRAKE BOOSTER VACUUM TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

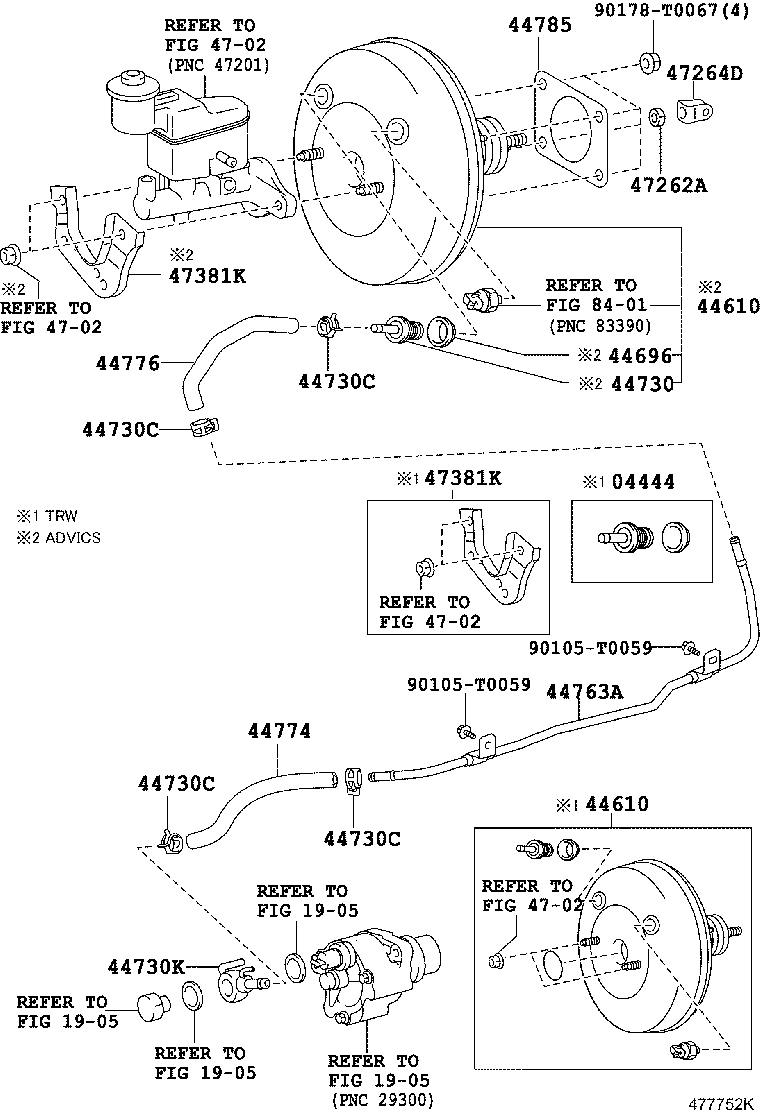

BRAKE BOOSTER VACUUM TUBE

(1107- )KUN51,60..LHD

FORTUNER | BRAKE BOOSTER VACUUM TUBE 04444 - VALVE KIT, BOOSTER CONTROL ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 44610 - BOOSTER ASSY, BRAKE 44610 - BOOSTER ASSY, BRAKE 44696 - GROMMET, CHECK VALVE 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) 44730C - CLIP(FOR VACUUM HOSE) 44730C - CLIP(FOR VACUUM HOSE) 44730C - CLIP(FOR VACUUM HOSE) 44730C - CLIP(FOR VACUUM HOSE) 44730K - UNION, VACUUM HOSE(FOR VACUUM PUMP) 44763A - TUBE, HOSE TO HOSE, NO.1 44774 - HOSE, UNION TO CONNECTOR TUBE 44776 - HOSE, BRAKE BOOSTER 44785 - GASKET, BRAKE BOOSTER ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 47262A - NUT, MASTER CYLINDER PUSH ROD CLEVIS LOCK 47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD 47381K - BRACKET, BRAKE BOOSTER TUBE CLAMP 47381K - BRACKET, BRAKE BOOSTER TUBE CLAMP ** Refer Fig ** Std Part ** Std Part ** Std Part
