TOYOTA HIACE LH222R-LEMDE / BODY / SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SEAT SEAT TRACK

*RES, FOR 1 PERSON(FRAME), W(*HR) ILLUST NO. 2 OF 5(1312- )KDH222,LH222,TRH223..RHD..GEN

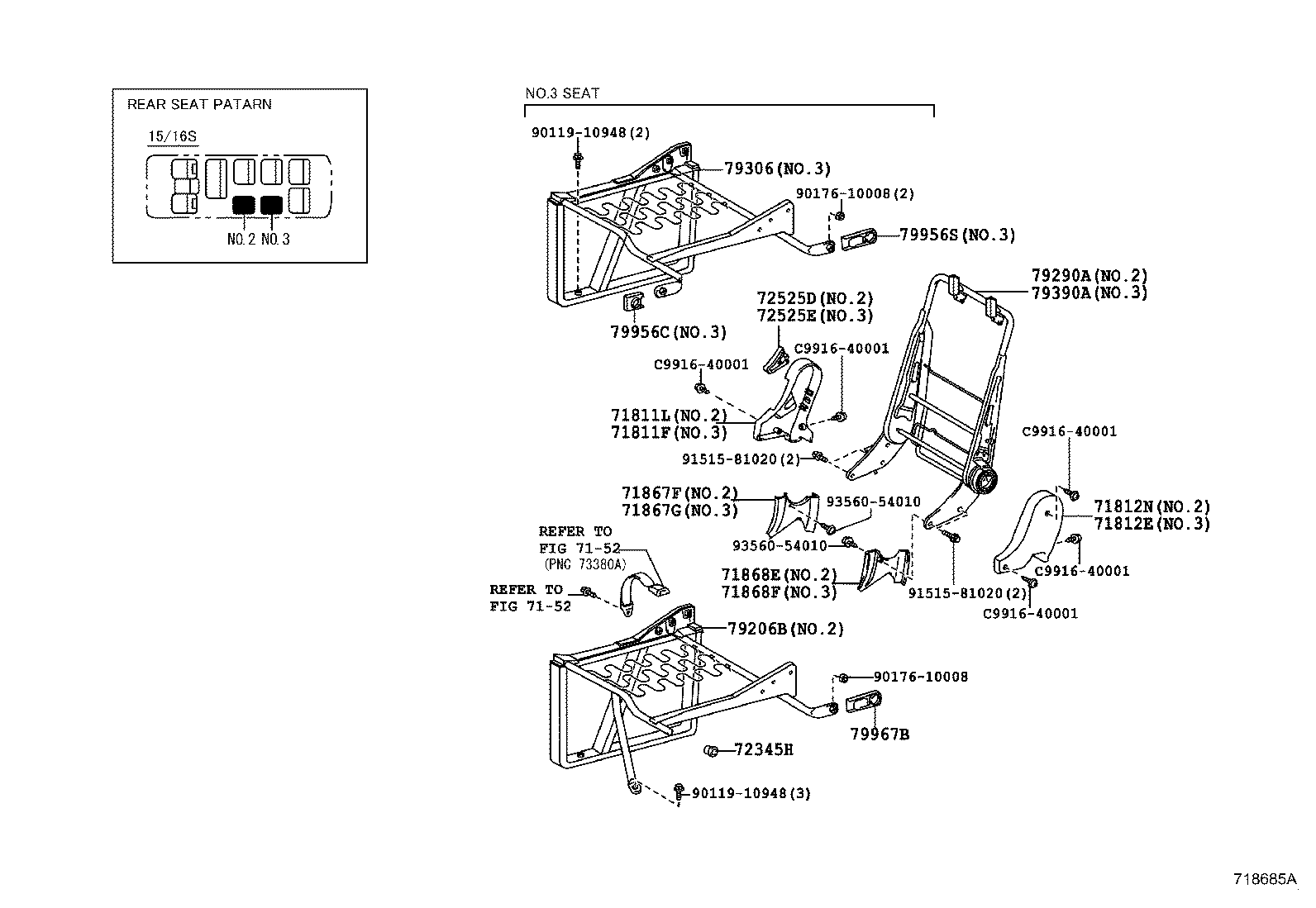

HIACE | SEAT SEAT TRACK ** Refer Fig ** Refer Fig 71811F - COVER, RECLINING ADJUSTER, RH 71811L - COVER, RECLINING ADJUSTER, RH 71812E - COVER, RECLINING ADJUSTER, LH 71812N - COVER, RECLINING ADJUSTER, LH 71867F - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH 71867G - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH 71868E - SHIELD, REAR SEAT CUSHION, INNER NO.1 LH 71868F - SHIELD, REAR SEAT CUSHION, INNER NO.1 LH 72345H - CAP, SEAT STAND FRAME 72525D - HANDLE, RECLINING ADJUSTER RELEASE, NO.2 RH 72525E - HANDLE, RECLINING ADJUSTER RELEASE, NO.3 RH 79206B - LEG SUB-ASSY, NO.2 SEAT, LH 79290A - SPRING ASSY, NO.2 SEAT BACK, LH 79306 - LEG SUB ASSY, NO.3 SEAT, LH 79390A - SPRING ASSY, NO.3 SEAT BACK, LH 79956C - COVER, REAR SEAT LEG SIDE, LH 79956S - COVER, REAR SEAT LEG SIDE 79967B - COVER, REAR SEAT LEG SIDE NO.2 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
