TOYOTA INNOVA KIJANG KUN40R-GKMRYX / BODY / SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

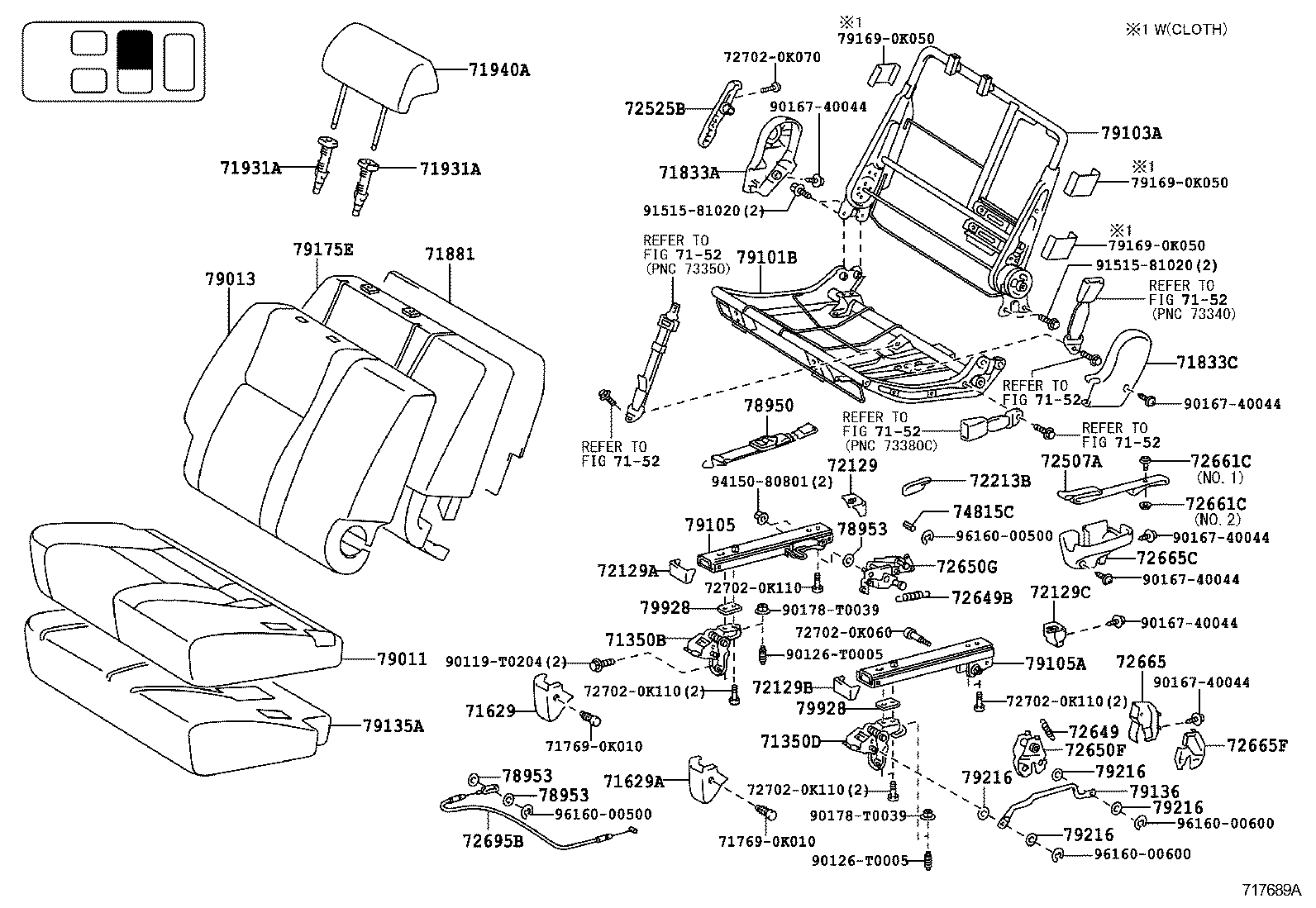

SEAT SEAT TRACK

REAR NO.1 SEAT(RH) W/O(SLIDE SEAT) ILLUST NO. 3 OF 4(1201- )STD..IND

INNOVA KIJANG | SEAT SEAT TRACK 71350B - HINGE ASSY, REAR SEAT, RH 71350D - HINGE ASSY, REAR SEAT, NO.2 RH ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 71629 - COVER, REAR SEAT CUSHION HINGE 71629A - COVER, REAR SEAT CUSHION HINGE, RH ** Std Part ** Std Part 71833A - COVER, REAR SEAT RECLINING, NO.1 RH 71833C - COVER, REAR SEAT RECLINING, NO.2 RH 71881 - BOARD, REAR SEAT BACK, RH 71931A - SUPPORT, REAR SEAT HEADREST 71931A - SUPPORT, REAR SEAT HEADREST 71940A - HEADREST ASSY, REAR SEAT 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 72129A - PROTECTOR, SEAT TRACK LOWER RAIL, NO.2 72129B - PROTECTOR, SEAT TRACK LOWER RAIL 72129C - PROTECTOR, SEAT TRACK LOWER RAIL, NO.3 72213B - KNOB, SEAT TRACK ADJUSTING HANDLE, RH 72507A - HANDLE SUB-ASSY, RECLINING RELEASE 72525B - HANDLE, RECLINING ADJUSTER RELEASE, RH 72649 - SPRING, REAR SEAT CUSHION SUPPORT 72649B - SPRING, REAR SEAT CUSHION SUPPORT 72650F - LOCK ASSY, REAR SEAT, RH 72650G - LOCK ASSY, REAR NO.2 SEAT, RH 72661C - BUTTON, REAR SEAT BACK LOCK RELEASE 72661C - BUTTON, REAR SEAT BACK LOCK RELEASE 72665 - COVER, REAR SEAT BACK LOCK, RH 72665C - COVER, REAR SEAT LOCK, RH 72665F - COVER, REAR SEAT LOCK, RH(FOR RH SEAT) 72695B - CABLE, REAR SEAT LOCK CONTROL, RH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part 74815C - PIPE, REAR PROTECTOR 78950 - BAND ASSY, FOLD SEAT STOPPER, NO.1 78953 - PLATE, REAR SEAT UNDER 78953 - PLATE, REAR SEAT UNDER 78953 - PLATE, REAR SEAT UNDER 79011 - COVER SUB-ASSY, NO.1 SEAT CUSHION, RH 79013 - COVER SUB-ASSY, NO.1 SEAT BACK, RH 79101B - FRAME SUB-ASSY, NO.1 SEAT CUSHION, RH 79103A - FRAME SUB-ASSY, NO.1 SEAT BACK, RH 79105 - LEG SUB-ASSY, NO.1 SEAT, RH 79105A - LEG SUB-ASSY, NO.1 SEAT 79135A - PAD, NO.1 SEAT CUSHION, RH 79136 - LINK, NO.1 SEAT LEG ** Std Part ** Std Part ** Std Part 79175E - PAD, NO.1 SEAT BACK, RH 79216 - PLATE, NO.2 SEAT LEG 79216 - PLATE, NO.2 SEAT LEG 79216 - PLATE, NO.2 SEAT LEG 79216 - PLATE, NO.2 SEAT LEG 79928 - PLATE, FOLD SEAT LEG 79928 - PLATE, FOLD SEAT LEG ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
